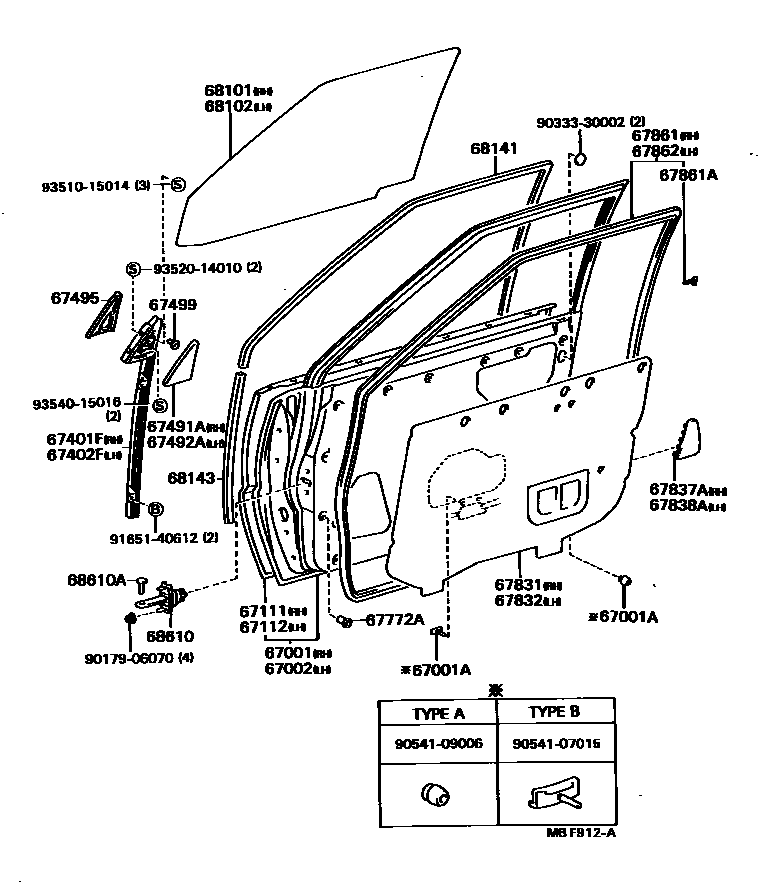

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20520iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)..(EUR,GEN)198310-198405

W/*WPM

main67001-20530iAT151,CT150,ST150..(DX,STD,XL)..(EUR,GEN)198310-198405

main67001-20550iAT151,ST150..SAA198310-198711

67001ACUSHION, FRONT DOOR PANEL

main90541-07015×2iAT151,CT150,ST15#198310-198711

TYPE B

main90541-09006×4iAT151,CT150,ST15#198310-198711

TYPE A

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20490iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)..(EUR,GEN)198310-198405

W/*WPM

main67002-20500iAT151,CT150,ST150..(DX,STD,XL)..(EUR,GEN)198310-198405

main67002-20520iAT151,ST150..SAA198310-198711

67111PANEL, FRONT DOOR, OUTER RH

main67111-20230iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)198310-198405

W/*WPM

main67111-20240iAT151,CT150,ST150..DX,STD,XL198310-198405

67112PANEL, FRONT DOOR, OUTER LH

main67112-20250iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)198310-198405

W/*WPM

main67112-20260iAT151,CT150,ST150..DX,STD,XL198310-198405

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-20130iAT151,CT150,ST150198310-198508

main67401-20150iAT151,CT150,ST15#198508-198711

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-20120iAT151,CT150,ST150198310-198508

main67402-20140iAT151,CT150,ST15#198508-198711

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20050iAT151,CT150,ST150..DX,STD,XL198310-198508

main67491-20060iAT151,CT150,ST15#..EUR,GEN,SAA198512-198711

W/*RCM

main67491-20070iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE

main67491-20080iST150..GL..TH198512-198608

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20070iAT151,CT150,ST150..DX,STD,XL198310-198508

main67492-20080iAT151,CT150,ST150..DX,XL198310-198508

W/*RCM

main67492-20090iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE

main67492-20100iST150..GL..TH198512-198608

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-20050iAT151,CT150,ST15#..GEN198310-198711

RH

main67496-20020iAT151,CT150,ST15#..GEN198310-198711

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iAT151,CT150,ST15#198310-198711

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-20021×2iAT151,CT150,ST15#198310-198711

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20210iAT151,CT150,ST150198310-198312

main67831-20240iAT151,ST150..SAA198312-198711

W/INDOOR DUST PROOFING

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-20240iST150..SAA198312-198508

W/INDOOR DUST PROOFING

main67832-20060iAT151,CT150,ST15#..EUR,GEN,TH198312-198711

main67832-20150iAT151,ST150..SAA198508-198711

W/INDOOR DUST PROOFING

67837ASEAL, FRONT DOOR VENT, RH

main67837-20050iAT151,CT150,ST15#..GEN,SAA198310-198711

67838ASEAL, FRONT DOOR VENT, LH

main67838-20040iAT151,CT150,ST15#..GEN,SAA198310-198711

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20190iAT151,CT150,ST15#198310-198711

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×42iAT151,CT150,ST15#198310-198711

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20190iAT151,CT150,ST15#198310-198711

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20310iAT151,CT150,ST15#198310-198711

*TT,T=4.0

main68111-20330iAT151..STD198310-198508

*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20230iAT151,CT150,ST15#198310-198711

*TT,T=4.0

main68112-20250iAT151..LHD..GL..GEN198401-198711

*TEM,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-20140×2iAT151,CT150,ST15#198310-198711

68143RUN, FRONT DOOR GLASS, LOWER

main68143-20040×2iAT151,CT150,ST15#198310-198711

sub68143-32030

68610CHECK ASSY, FRONT DOOR

main68610-20030×2iAT151,CT150,ST15#198310-198711

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iAT151,CT150,ST150198407-198507

main68617-22010×2iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198407

main68617-90A00×2iAT151,CT150,ST15#198507-198711

sub68617-90A01

9017906070

main90179-06070

9033330002

main90333-30002

9054107015

main90541-07015

9054109006

main90541-09006

9165140612

main91651-40612

9351015014

main93510-15014

9352014010

main93520-14010

9354015016

main93540-15016

33 parts on this diagram · 3 diagrams in section
