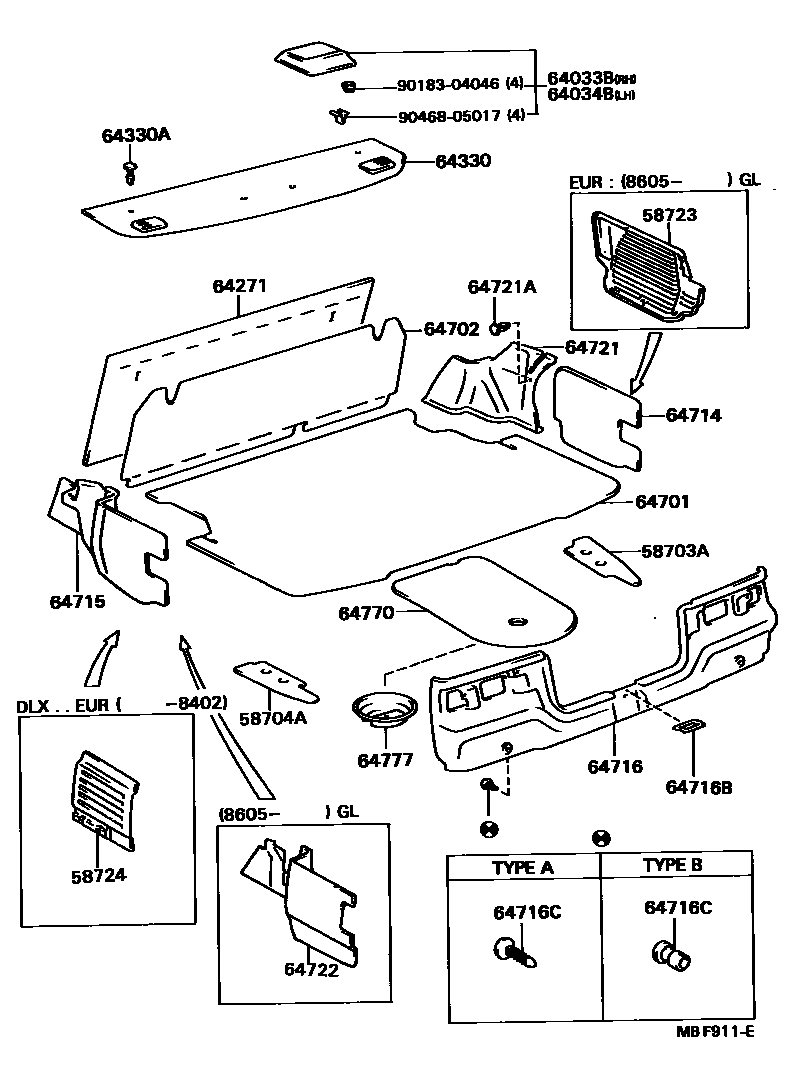

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20050iAT151,CT150,ST150..SED198310-198711

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20050iAT151,CT150,ST150..SED198310-198711

58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1

main58723-20010iAT151,CT150..SED..DX198310-198402

main58723-20020-03iAT151,CT150..SED..GL..EUR198310-198508

GRAY,GRAY,TRIM1#

sub58723-20020

main58723-20020-13iAT151,CT150,ST150..SED..GL..EUG198508-198605

GRAY,GRAY,TRIM1#

sub58723-20020

main58723-20030-03iAT151,CT150..SED..DX198402-198508

GRAY,GRAY,TRIM1#

sub58723-20030

main58723-20030-13iAT151,CT150..SED..DX198508-198711

GRAY,GRAY,TRIM1#

sub58723-20030

main58723-20040-03iAT151,CT150,ST15#..SED..GL198605-198711

GRAY,GRAY,TRIM1#

58724PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2

main58724-20010iAT151,CT150..SED..DX198310-198402

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-14030-02iAT151..SED..RHD..GL..GEN198502-198601

DEEP MAROON,RED/MAROON,TRIM3#

sub64033-14030

main64033-14030-03iAT151..SED..RHD..GL..GEN198502-198601

SHADOW GRAY,GRAY,TRIM1#

sub64033-14030

main64033-14030-14iAT151..SED..RHD..GL..GEN198502-198601

BLUE,BLUE,TRIM8#

sub64033-14030

main64033-20110-02iST150..SED..GL..SAA198601-198711

MAROON,MAROON,TRIM3#

sub64033-20120

main64033-20110-03iAT151,CT150,ST150..SED..EUR198601-198711

GRAY,GRAY,TRIM1#

sub64033-20120

main64033-20110-04iST150..SED..GL..SAA198601-198711

BLUE,BLUE,TRIM8#

sub64033-20120

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-14030-02iAT151..SED..RHD..GL..GEN198502-198601

DEEP MAROON,RED/MAROON,TRIM3#

sub64033-14030

main64033-14030-03iAT151..SED..RHD..GL..GEN198502-198601

SHADOW GRAY,GRAY,TRIM1#

sub64033-14030

main64033-14030-14iAT151..SED..RHD..GL..GEN198502-198601

BLUE,BLUE,TRIM8#

sub64033-14030

main64033-20110-02iST150..SED..GL..SAA198608-198711

MAROON,MAROON,TRIM3#

sub64033-20120

main64033-20110-02iAT151..SED..RHD..GL..GEN198601-198711

DEEP MAROON,MAROON,TRIM3#

sub64033-20120

main64033-20110-03iAT151,CT150,ST150..SED..EUR198601-198711

GRAY,GRAY,TRIM1#

sub64033-20120

main64033-20110-04iAT151,CT150,ST150..SED..EUR198601-198711

BLUE,BLUE,TRIM8#

sub64033-20120

64271BOARD, ROOM PARTITION, NO.1

main64271-20120iAT151,CT150,ST150..SED..(DX,STD,XL)198310-198711

main64271-20130iAT151,CT150,ST15#..SED..GL198310-198711

sub64271-20120

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20470-02iAT151..LHD..GL..GEN;AT151..SED..LHD..GL..EUG;AT151..SED..RHD..(EUR,GEN);AT151..SED..LHD..(DX,STD,XL);CT150,ST15#..SED..(EUR,GEN,SAA)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64330-20530

main64330-20470-03iAT151..LHD..GL..GEN;AT151..SED..LHD..GL..EUG;AT151..SED..RHD..(EUR,GEN);AT151..SED..LHD..(DX,STD,XL);CT150,ST15#..SED..(EUR,GEN,SAA)198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64330-20530

main64330-20470-04iAT151..SED..RHD;CT150,ST150..SED;AT151..LHD..GL..GEN;AT151..SED..LHD..GL..EUG;AT151..SED..LHD..(DX,STD,XL)198310-198508

BLUE,BLUE,TRIM8#

sub64330-20530

main64330-20470-14iAT151,CT150,ST15#..SED198508-198711

BLUE,BLUE,TRIM8#

sub64330-20530

main64330-20500-02iAT151,CT150,ST150..SED..LHD..5F..XL..GEN198310-198711

RR SEAT BELT *ELR,DEEP MAROON,RED/MAROON,TRIM3#

sub64330-20500

main64330-20500-03iAT151,CT150,ST150..SED..LHD..5F..XL..GEN198310-198711

RR SEAT BELT *ELR,SHADOW GRAY,GRAY,TRIM1#

sub64330-20500

main64330-20500-04iCT150,ST150..SED..RHD..GEN198310-198508

RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#

sub64330-20500

main64330-20500-14iAT151,CT150,ST150..SED..LHD..5F..XL..GEN198508-198711

RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#

sub64330-20500

main64330-20500-14iAT151,CT150,ST150..SED..EUR198508-198711

BLUE,BLUE,TRIM8#

sub64330-20500

main64330-20510-02iST150..SED..GL..SAA198608-198711

W/*SPG,MAROON,RED/MAROON,TRIM3#

sub64330-20510

main64330-20510-03iST150..SED..GL..SAA198608-198711

W/*SPG,GRAY,GRAY,TRIM1#

sub64330-20510

main64330-20510-14iST150..SED..GL..SAA198608-198711

W/*SPG,BLUE,BLUE,TRIM8#

sub64330-20510

main64330-20820-02iAT151,CT150,ST150..SED..EUR198608-198711

W/*SPG,RR *ELR,MAROON,MAROON,TRIM3#

main64330-20820-03iAT151,CT150,ST150..SED..EUR198608-198711

W/*SPG,RR *ELR,GRAY,GRAY,TRIM1#

main64330-20820-04iAT151,CT150,ST150..SED..EUR198608-198711

W/*SPG,RR *ELR,BLUE,BLUE,TRIM8#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-02iAT151,CT150,ST15#..SED198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-03iAT151,CT150,ST150..SED198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-04iAT151,CT150,ST150..SED198310-198508

BLUE,BLUE,TRIM8#

sub90467-08046

sub90467-08037

main90467-08046-14iAT151,CT150,ST15#..SED198508-198711

BLUE,BLUE,TRIM8#

sub90467-08046

sub90467-08037

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-20220-03iAT151,CT150,ST150..SED..(DX,STD,XL)198310-198508

GRAY,GRAY

sub64711-20220

main64711-20230-13iAT151,ST150..XL..TH198508-198608

GRAY,GRAY

sub64711-20230

main64711-20240iAT151,CT150,ST150..SED..GL198310-198508

sub64711-20340

main64711-20340iST150..SED..GL..TH198508-198711

64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT

main64717-20100iAT151,CT150,ST150..SED..GL198310-198508

main64717-20140iAT151,CT150,ST150..SED..(DX,XL)198508-198711

main64717-20150iAT151,CT150,ST15#..SED..GL198508-198711

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-20160-03iAT151,CT150,ST150..SED..(STD,XL)198310-198508

GRAY,GRAY

sub64714-20160

main64714-20160-13iAT151,CT150,ST150..SED..XL198508-198711

GRAY,GRAY

sub64714-20160

main64714-20170-03iAT151,ST150..SED..GL..(GEN,SAA)198310-198508

GRAY,GRAY

sub64714-20170

main64714-20170-13iAT151,ST15#..SED..GL..(GEN,SAA,TH)198508-198605

GRAY,GRAY

sub64714-20170

64715COVER, LUGGAGE COMPARTMENT, LH

main64072-20010-13iAT151,CT150,ST150..SED..XL198508-198711

GRAY,GRAY

sub64072-20010

main64072-20020-03iAT151,CT150..SED..GL..EUR198310-198508

GRAY,GRAY

sub64072-20020

main64072-20020-13iAT151,CT150,ST150..SED..GL..EUG198508-198605

GRAY,GRAY

sub64072-20020

main64072-20030-03iAT151,ST150..SED..GL..(GEN,SAA)198310-198508

GRAY,GRAY

sub64072-20030

main64072-20030-13iAT151,ST15#..SED..GL..(GEN,SAA,TH)198508-198605

GRAY,GRAY

sub64072-20030

main64072-20050-03iAT151,CT150,ST150..SED..XL198402-198508

GRAY,GRAY

sub64072-20050

main64072-20050-13iAT151,CT150..SED..DX198508-198711

GRAY,GRAY

sub64072-20050

main64715-20160-03iAT151,CT150,ST150..SED..(STD,XL)198310-198508

GRAY,GRAY

sub64715-20160

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-20090-03iAT151,ST150..SED..GL..(GEN,SAA)198310-198508

GRAY,GRAY

sub64716-20090

main64716-20090-13iAT151,ST15#..SED..GL..(GEN,SAA,TH)198508-198711

GRAY,GRAY

sub64716-20090

main64716-20100-03iAT151,CT150..SED..GL..EUR198310-198508

GRAY,GRAY

sub64716-20100

main64716-20100-13iAT151,CT150,ST150..SED..GL..EUG198508-198711

GRAY,GRAY

sub64716-20100

main64716-20120-03iAT151,CT150,ST150..SED..XL198402-198508

GRAY

sub64716-20120

main64716-20120-13iAT151,CT150,ST150..SED..XL198508-198711

GRAY

sub64716-20120

main64716-20130-03iAT151,CT150..SED..DX198402-198508

GRAY,GRAY

sub64716-20130

main64716-20130-13iAT151,CT150..SED..DX198508-198711

GRAY,GRAY

sub64716-20130

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-20030iAT151..STD198310-198508

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-23iAT151,CT150,ST150..SED..(DX,GL,XL)198310-198508

TYPE A,GRAY,GRAY

sub90467-05004

main90467-05004-33iAT151,CT150,ST15#..SED198508-198711

TYPE A,GRAY,GRAY

sub90467-05004

main90467-05025-03iAT151,CT150,ST15#..SED..(DX,GL,XL)198310-198711

TYPE B,GRAY,GRAY

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20040-03iAT151,CT150,ST150..SED..(DX,XL)198402-198508

GRAY,GRAY

sub64721-20040

main64721-20040-13iAT151,CT150,ST150..SED..(DX,XL)198508-198711

GRAY,GRAY

sub64721-20040

main64721-20050-03iAT151,CT150,ST150..SED..GL198310-198508

GRAY,GRAY

sub64721-20050

main64721-20050-13iAT151,CT150,ST15#..SED..GL198508-198605

GRAY,GRAY

sub64721-20050

main64721-20140-03iAT151,CT150,ST15#..SED..GL198605-198711

GRAY,GRAY

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-01iAT151..SED..LHD..4FC..GL;AT151,CT150,ST150..SED..(3FC,5F)..GL198310-198402

BLACK

sub90467-07158

main90467-07158-01iAT151,CT150,ST150..SED..(DX,GL,XL)198402-198508

GRAY,BLACK

sub90467-07158

main90467-07158-33iAT151,CT150,ST150..SED198508-198711

GRAY,GRAY

sub90467-07158

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-20110-03iAT151,CT150,ST15#..SED..GL198605-198711

GRAY

64770COVER ASSY, SPARE WHEEL

main64770-20060iAT151,CT150,ST150..SED198310-198508

sub64770-20120

main64770-20120iAT151,CT150,ST15#..SED198508-198711

64777CLAMP, SPARE WHEEL COVER

main64777-32020iAT151,CT150,ST15#..SED198310-198612

sub64777-32030

main64777-32030iAT151,CT150,ST15#..SED198612-198711

9018304046

main90183-04046

9046805017

main90468-05017

23 parts on this diagram · 1 diagram in section
