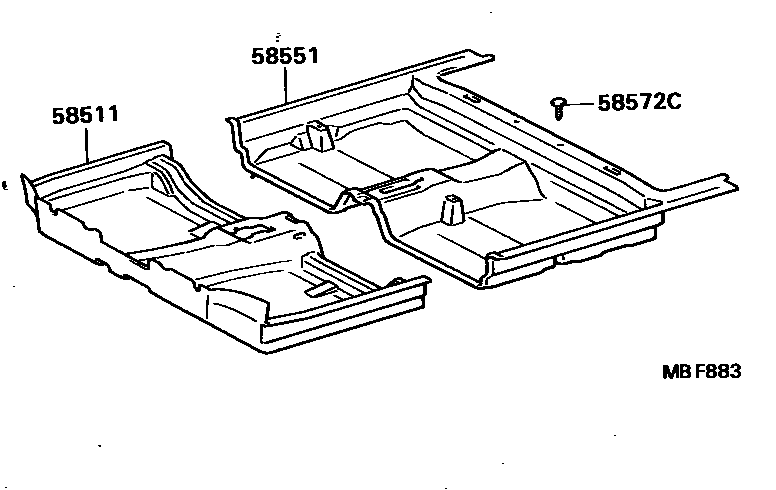

MAT & CARPET

0001 1 0002 1

58511MAT, FLOOR, FRONT

main58510-20790-02iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main58510-20790-03iAT151..STD198310-198508

GRAY,GRAY,TRIM1#

main58510-20790-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

58551MAT, FLOOR, REAR

main58540-20460-02iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main58540-20460-03iAT151..STD198310-198508

GRAY,GRAY,TRIM1#

main58540-20460-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

58572CCLIP, REAR FLOOR MAT SET

main90467-06016-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

sub90467-06016¥230

sub90467-07049¥90

main90467-06016-22iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-06016¥230

sub90467-07049¥90

main90467-06016-33iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub90467-06016¥230

sub90467-07049¥90

3 parts on this diagram · 2 diagrams in section
