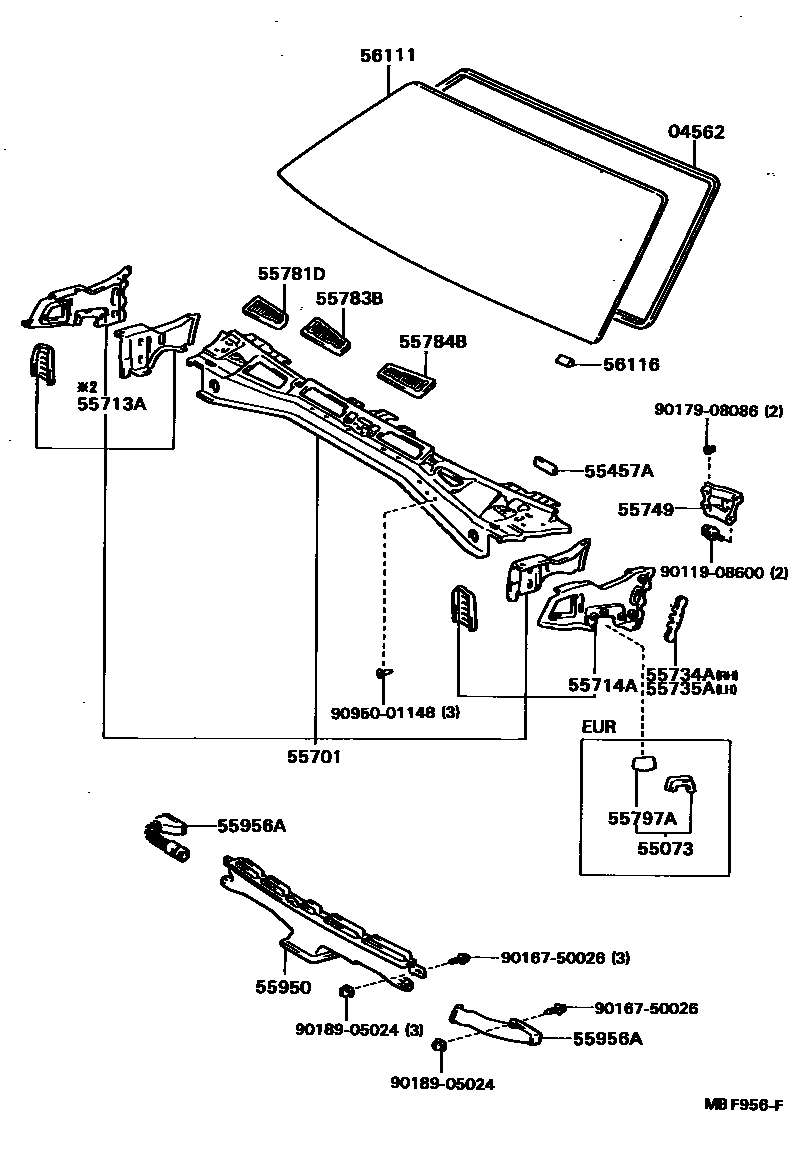

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-14010iAT151,CT150,ST15#198310-198711

sub04562-30040

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020×2iAT151,CT150,ST150..EUR198310-198711

55457ASPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030×4iAT151,CT150,ST15#198310-198711

55701PANEL SUB-ASSY, COWL

main55700-20320iST150..RHD198310-198508

main55700-20321iST150..RHD198508-198711

main55700-20350iAT151..RHD198310-198508

main55700-20351iAT151..RHD..(GEN,TH)198511-198711

main55700-20360iAT151..LHD198310-198508

main55700-20361iAT151..LHD198508-198711

main55700-20370iCT150..RHD198310-198508

main55700-20371iCT150..RHD..GEN198511-198711

main55700-20390iCT150,ST150..LHD198503-198508

main55700-20391iCT150..LHD198508-198711

main55700-20400iST150..LHD198310-198503

main55700-20531iST150..EUG198508-198711

main55700-20541iST151198508-198711

main55700-20570iAT151..RHD..EUG198508-198711

main55700-20610iCT150..RHD..EUG198508-198711

55713APANEL, COWL TOP SIDE, RH

main55713-20060iAT151,CT150,ST15#198408-198711

55714APANEL, COWL TOP SIDE, LH

main55714-20060iAT151,CT150,ST15#198408-198711

55734APLATE, WATER GUARD, RH

main55734-20060iAT151,CT150,ST150198310-198508

main55734-20080iAT151,CT150,ST15#198508-198711

TYPE A

55735APLATE, WATER GUARD, LH

main55734-20080iAT151,CT150,ST15#198508-198711

TYPE A

main55735-20040iAT151,CT150,ST150198310-198508

55749BRACE, COWL TOP TO PILLAR, LH

main55749-20030iAT151,CT150,ST15#..RHD198310-198711

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-20100iAT151,CT150,ST15#..RHD198310-198711

sub55781-20150

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-20060iAT151,CT150,ST15#198310-198711

sub55783-20110

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-20030iAT151,CT150,ST15#198310-198711

sub55784-20080

55797ASEAL, COWL WATER EXTRACT

main55797-20030×2iAT151,CT150,ST150..EUR198310-198711

55950NOZZLE ASSY, DEFROSTER

main55950-20040iAT151,CT150,ST15#..RHD198310-198711

main55950-20050iAT151,CT150,ST150..LHD198310-198708

main55950-20051iAT151,CT150,ST150..LHD198708-198711

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-20030iAT151,CT150,ST150..RHD198310-198508

LH

main55970-20040iAT151,CT150,ST150..LHD198310-198711

RH

main55970-20060iAT151,CT150..RHD..EUG198508-198711

main55971-20040iAT151,CT150,ST150..LHD198310-198509

RH

main55971-20041iAT151,CT150,ST150..LHD198509-198711

RH

56111GLASS, WINDSHIELD

main56111-20380iAT151..GEN,TH;AT151..EUG,FRG;CT150,ST15#..EUR,GEN,TH198310-198711

*TZT,T=5.0

main56111-20400iAT151,CT150,ST150..GL..EUR198603-198711

*TL,T=5.3,W/SUN SHADE

main56111-20410iAT151..STD198310-198508

*ZT,T=5.0

main56111-20420iAT151,CT150,ST15#..EUR,GEN,SAA198310-198711

*TL,T=5.3

main56111-20440iST150..RHD..GL198506-198508

*NZ,*LAM,T=5.3

main56111-20520iST151198508-198711

*NZ,*LAM,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-14070×2iAT151,CT150,ST15#198310-198711

sub56116-32030

9011908600

main90119-08600

9016750026

main90167-50026

9017908086

main90179-08086

9018905024

main90189-05024

9095001148

main90950-01148

22 parts on this diagram · 2 diagrams in section
