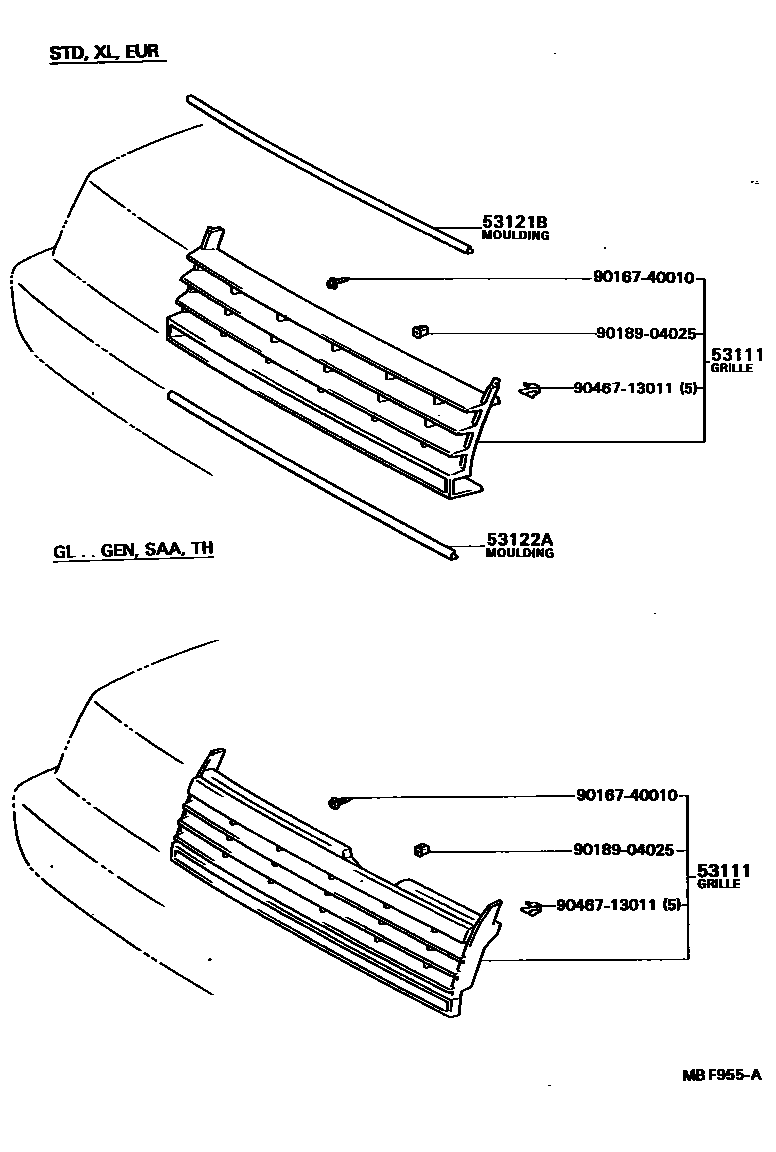

RADIATOR GRILLE

0001 1 0003 1

53111GRILLE, RADIATOR

main53100-20070iAT151,CT150,ST15#..GEN,SAA198508-198605

sub53100-20090

main53100-20080iAT151,CT150,ST150..EUR198508-198711

sub53100-20090

main53100-20090iAT151,CT150,ST15#..GEN,SAA198605-198711

main53100-29255iAT151,ST150..GL..(GEN,SAA)198310-198608

main53111-29245iAT151,ST150..XL..TH198310-198608

53121BMOULDING, RADIATOR GRILLE, UPPER

main53121-20130iCT150;AT151..EUR;AT151,ST150..STD,XL198310-198608

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-20100iCT150;AT151..EUR;AT151,ST150..STD,XL198310-198608

9016740010

main90167-40010

9018904025

main90189-04025

9046713011

main90467-13011

6 parts on this diagram · 2 diagrams in section
