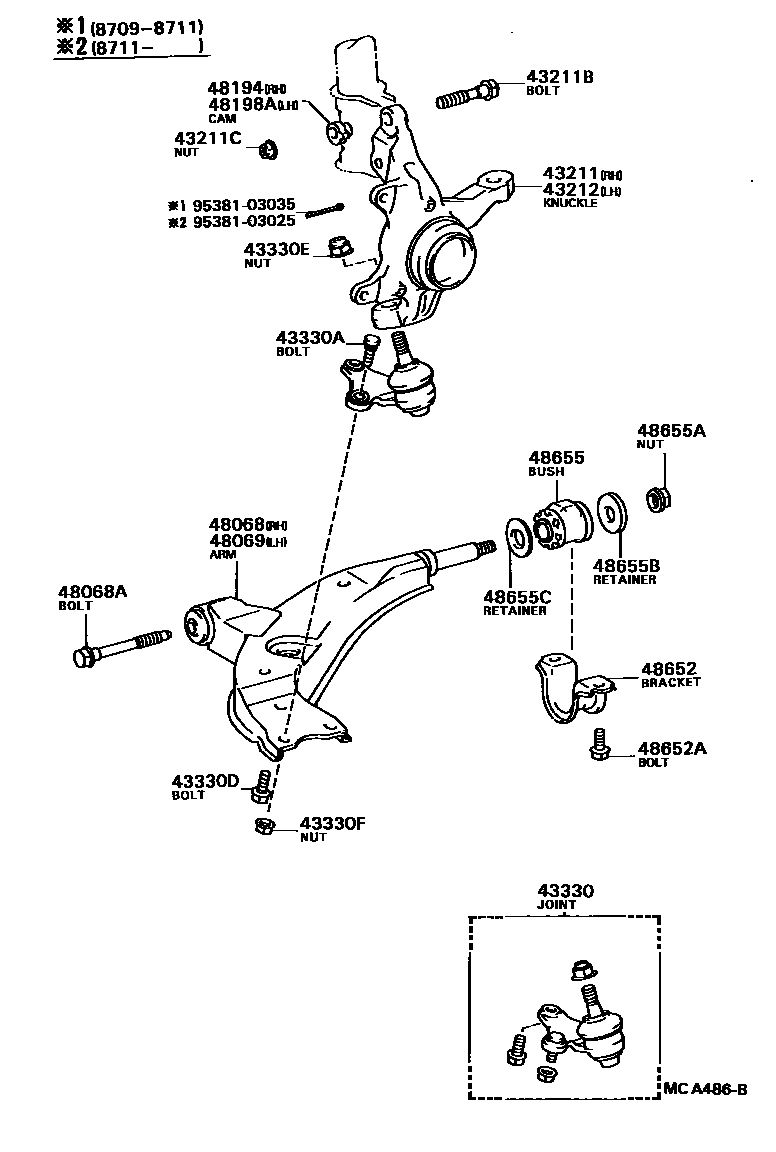

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-12070iAT151198310-198711

main43211-12080iST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

main43211-20090iST150..GL..TH;CT150,ST15#..EUR,GEN,SAA198310-198711

W/POWER STEERING

43211BBOLT (FOR ABSORBER SETTING)

main90105-12042iAT151198310-198711

sub90105-12263

main90105-15001iCT150,ST15#198310-198711

43211CNUT (FOR ABSORBER SETTING)

main90179-12025iAT151198310-198711

main90179-15001iCT150,ST15#198310-198711

43212KNUCKLE, STEERING, LH

main43212-12030iAT151198310-198711

main43212-12040iST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

main43212-20050iST150..GL..TH;CT150,ST15#..EUR,GEN,SAA198310-198711

W/POWER STEERING

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29136iAT151,CT150,ST150198310-198410

sub43330-29137

main43330-29137iAT151,CT150,ST15#198410-198602

sub43330-29138

main43330-29138iAT151,CT150,ST15#198602-198701

sub43330-29139

main43330-29139iAT151,CT150,ST15#198701-198709

sub43330-29205

main43330-29205iAT151,CT150,ST15#198709-198711

43330ASERRATION BOLT(FOR FRONT LOWER BALL JOINT)

main90114-10012iAT151,CT150,ST15#198310-198711

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-10069iAT151,CT150,ST15#198310-198512

main90119-10407iAT151,CT150,ST15#198512-198711

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14003iAT151,CT150,ST15#198709-198711

main90179-14015iAT151,CT150,ST15#198310-198709

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10054iAT151,CT150,ST15#198310-198512

main90179-10087iAT151,CT150,ST15#198512-198702

main90179-10103iAT151,CT150,ST15#198702-198711

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-20150iAT151,CT150,ST15#198310-198703

sub48068-20151

sub43330-29139

main48068-20151iAT151,CT150,ST15#198703-198711

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12081iAT151,CT150,ST150198310-198412

sub90119-12083

main90119-12083iAT151,CT150,ST15#198412-198711

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-20150iAT151,CT150,ST15#198310-198703

sub48069-20151

sub43330-29139

main48069-20151iAT151,CT150,ST15#198703-198711

48194CAM, CAMBER ADJUST, RH

main48194-16010iAT151198310-198505

sub48194-16011

main48194-16011iAT151198505-198711

main48194-32010iCT150,ST150198310-198505

sub48194-32020

main48194-32020iCT150,ST15#198505-198711

48198ACAM, CAMBER ADJUST, LH

main48198-16010iAT151198310-198505

sub48198-16011

main48198-16011iAT151198505-198711

main48198-32010iCT150,ST150198310-198505

sub48198-32020

main48198-32020iCT150,ST15#198505-198711

48652BRACKET, FRONT LOWER ARM

main48652-20030iAT151,CT150,ST15#198310-198711

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iAT151,CT150,ST15#198310-198711

48655BUSH, LOWER ARM, NO.2

main48655-20030iAT151,CT150,ST15#198310-198711

48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)

main90179-14006iAT151,CT150,ST15#198310-198711

48655BRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.2)

main90948-02060iAT151,CT150,ST15#198310-198711

48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)

main90948-02061iAT151,CT150,ST15#198310-198711

9538103025

main95381-03025

9538103035

main95381-03035

22 parts on this diagram · 1 diagram in section
