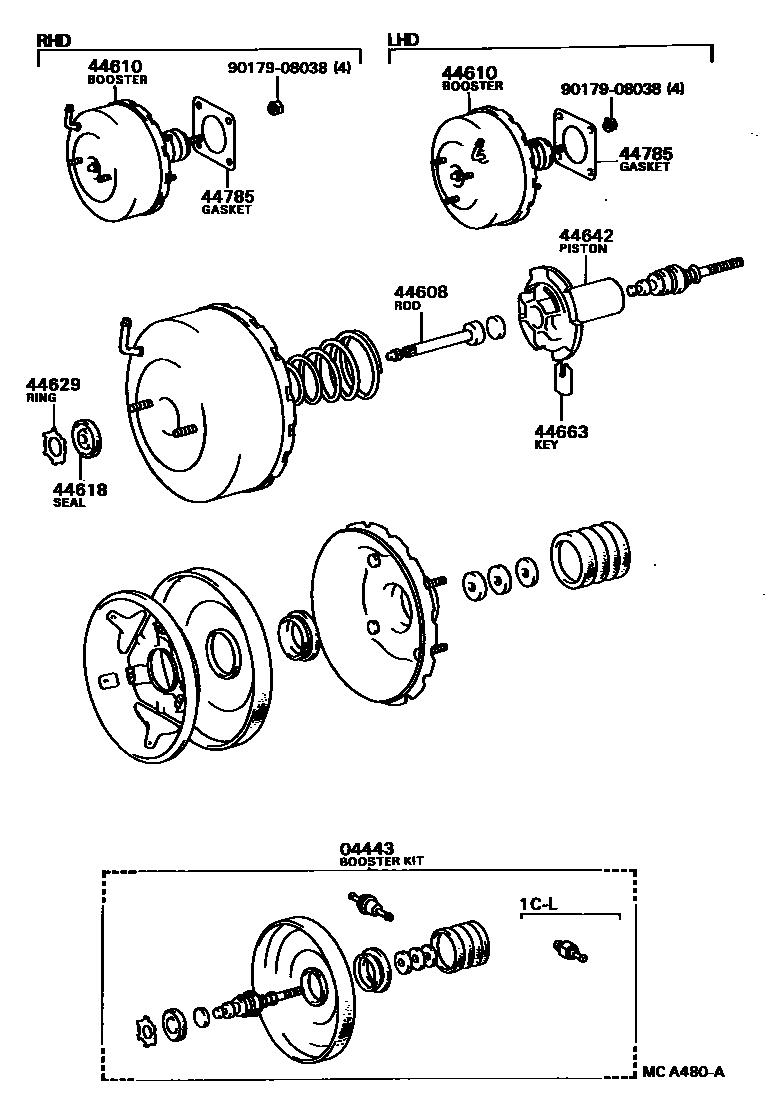

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-20360iAT151,ST150..LHD..EUR198310-198711

main04443-20370iCT150..LHD..EUG198310-198711

main04443-20380iST150;AT151..RHD;AT151..LHD..GEN198310-198410

main04443-20390iCT150..RHD;CT150..LHD..GEN198310-198410

main04443-20420iAT151,ST15#..RHD198410-198711

main04443-20430iCT150..RHD198410-198711

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198310-198711

main44608-32020iAT151,CT150,ST150..LHD..EUR198310-198711

44610BOOSTER ASSY, BRAKE

main44610-20680iAT151,CT150,ST15#..RHD198310-198604

main44610-20710iAT151,CT150,ST150..LHD..EUR198310-198711

main44610-20720iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

main44610-20840iAT151,CT150,ST15#..RHD198604-198711

44618SEAL, BOOSTER BODY

main44621-28120iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198310-198711

44629RING, CIRCULAR INTERNAL

main44628-28120iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198310-198711

44642PISTON, BRAKE BOOSTER

main44642-32010iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198310-198711

44663KEY, VALVE STOPPER

main44635-28120iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198310-198711

44785GASKET, BRAKE BOOSTER

main44785-32010iAT151,CT150,ST15#198310-198711

9017908038

main90179-08038

9 parts on this diagram · 5 diagrams in section
