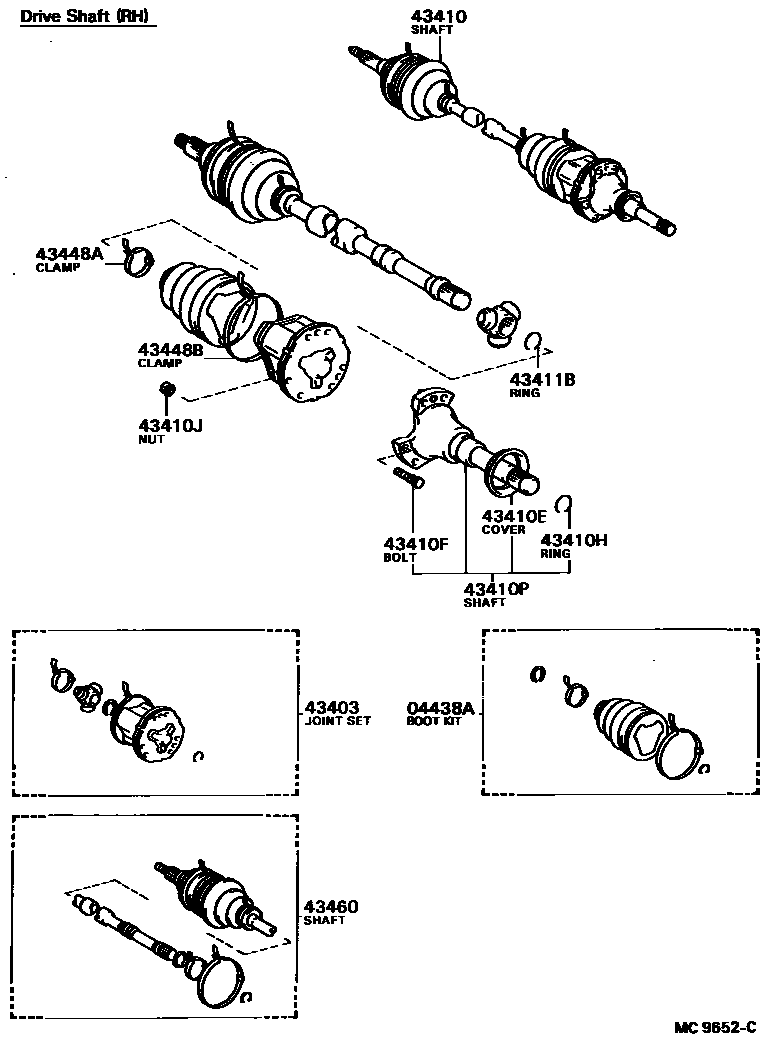

FRONT DRIVE SHAFT

0001 1 0005 1 0008 1 0009 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12021iAT151198310-198410

sub04438-17010

main04438-12030iCT150,ST15#198410-198609

sub04438-12031

main04438-12031iCT150,ST15#198609-198711

main04438-17010iAT151198410-198609

main04438-17011iAT151198609-198705

main04438-17012iAT151198705-198711

main04438-32021iCT150,ST150198310-198410

sub04438-12030

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12010iAT151198310-198705

main04438-12011iAT151198705-198711

main04438-32011iCT150,ST15#198310-198711

sub04438-12050

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19035iAT151198310-198705

main43403-19036iAT151198705-198711

main43403-39016iCT150,ST15#198310-198711

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12021iAT151198310-198410

sub43410-12060

main43410-12050iAT151..GEN,TH198410-198608

sub43410-12080

main43410-12060iAT151..EUR198410-198508

sub43410-12080

main43410-12070iCT150198410-198510

sub43410-12H00

main43410-12080iAT151..EUR,GEN,SAA198508-198711

sub43410-12081

sub43525-20030

sub90179-22020

main43410-12100iCT150198510-198708

sub43410-12101

sub43525-20030

sub90179-22020

main43410-12150iCT150198708-198711

sub43410-12151

sub43525-20030

sub90179-22020

main43410-20020iCT150198310-198410

sub43410-12070

main43410-20030iST150198310-198410

sub43410-20031

main43410-20031iST15#198410-198711

sub43410-20032

sub43525-20030

sub90179-22020

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main41336-12010iAT151198310-198711

main41336-20011iST15#198310-198711

RH

sub41336-20050

main41336-32010iCT150198310-198711

RH

main41336-32020iCT150,ST15#198310-198711

LH

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006iAT151,CT150,ST15#198310-198711

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26002iAT151198310-198711

main90521-27005iCT150,ST15#198310-198711

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053iAT151,CT150,ST15#198310-198711

43410PSHAFT SUB-ASSY, FRONT DRIVE, RH

main41304-12010iAT151198310-198711

main41304-20010iCT150198310-198711

main43049-20020iST15#198310-198711

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iCT150,ST15#198310-198711

main90520-23035iAT151198310-198711

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iCT150,ST15#198310-198711

main90949-01078iAT151198310-198711

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iCT150,ST15#198310-198711

main90949-01079iAT151198310-198711

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19046iAT151198310-198410

sub43460-19095

main43460-19095iAT151..EUR198410-198508

sub43460-19096

main43460-19105iCT150198410-198510

sub43460-19106

main43460-19115iAT151..EUR,GEN,SAA198508-198609

sub43460-19116

main43460-19116iAT151198609-198711

sub43460-19097

main43460-19135iCT150198510-198708

sub43460-19136

sub43525-20030

sub90179-22020

main43460-19195iAT151..TH198401-198608

sub43460-19196

main43460-19285iCT150198708-198711

sub43460-19286

sub43525-20030

sub90179-22020

main43460-29016iCT150198310-198410

sub43460-19105

main43470-19105iST15#198410-198711

sub43470-19106

sub43525-20030

sub90179-22020

main43470-29016iST150198310-198410

sub43470-19105

13 parts on this diagram · 4 diagrams in section
