TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

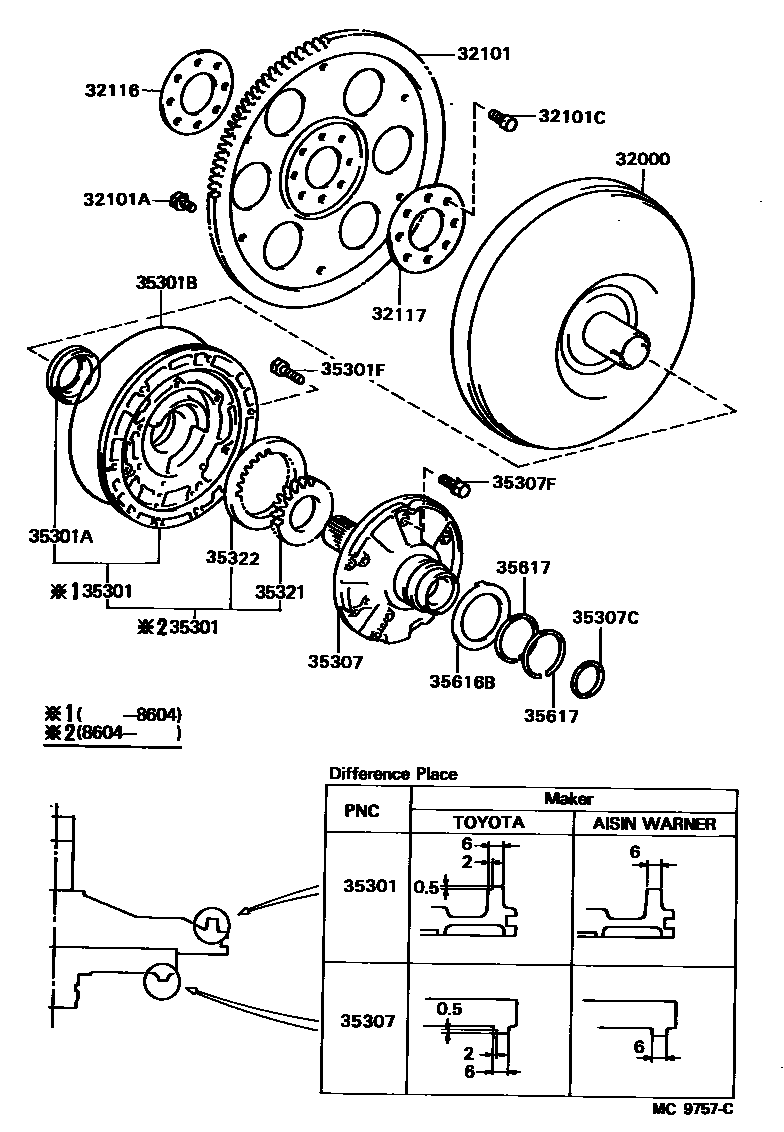

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-12100i198310-198407
main32000-12101i198407-198711
sub32000-12230
main32000-32010i198310-198405
main32000-32011i198405-198408
main32000-32012i198702-198705
main32000-32020i198702-198705
sub32000-32040
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-12060i198310-198711
sub32101-12061
main32101-32010i198310-198711
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08090i198310-198407
WHITE
main90109-08107i198310-198407
*8-1.25PX12-8.4,OLIVE GREEN
main90109-08113i198505-198711
*8-1.25PX12-8.4,OLIVE GREEN
main90119-08223×5i198310-198407
*8-1.25PX10.5-6.5,YELLOW
main90119-08269×5i198310-198407
*8-1.25PX12-8,BLACK
main90119-08498×5i198505-198711
*8-1.25PX12-8,BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048×6i198310-198711
*10-1.25PX18-13
main90109-10054×6i198310-198711
*10-1.25PX22-16
32116SPACER, DRIVE PLATE, FRONT
main32116-12010i198310-198711
main32116-14020i198310-198711
32117SPACER, DRIVE PLATE, REAR
main32117-12010i198310-198711
main32117-14030i198310-198711
35301BODY SUB-ASSY, FRONT OIL PUMP
main35035-20010i198604-198711
main35035-32010i198604-198711
AISIN WARNER
main35035-32020i198604-198711
TOYOTA
sub35035-32H00
main35301-12020i198401-198410
main35301-12021i198410-198604
main35301-32030i198310-198410
main35301-32031i198410-198604
AISIN WARNER
main35301-32040i198411-198604
TOYOTA
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i198310-198711
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99024i198310-198711
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i198310-198711
*8-1.25PX28-28
35307SHAFT SUB-ASSY, STATOR
main35370-32020i198310-198410
main35370-32021i198410-198412
main35370-32022i198412-198711
AISIN WARNER
sub35370-20H00
sub35370-32H01
main35370-32030i198411-198412
TOYOTA
main35370-32031i198412-198711
TOYOTA
sub35370-32H00
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-32020i198310-198711
T=0.8,T=0.8
main35789-32030i198310-198711
T=1.4,T=1.4
35307FBOLT (FOR STATOR SHAFT)
main90119-06180×11i198310-198711
35321GEAR, FRONT OIL PUMP DRIVE
main35321-32020i198310-198604
T=9.465-9.440
main35321-32040i198604-198711
T=9.440-9.456,MARK A OR D
sub35321-12070
main35321-32050i198604-198711
T=9.456-9.474,MARK B OR E
sub35321-12090
main35321-32060i198604-198711
T=9.474-9.490,MARK C OR F
sub35321-12110
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-32020i198310-198604
T=9.465-9.440
main35322-32040i198604-198711
T=9.440-9.456,MARK A OR D
sub35322-12060
main35322-32050i198604-198711
T=9.456-9.474,MARK B OR E
sub35322-12080
main35322-32060i198604-198711
T=9.474-9.490,MARK C OR F
sub35322-12100
35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
main35616-32010i198310-198711
35617RING, CLUTCH DRUM OIL SEAL
main35617-12020×2i198708-198711
main35617-22011×2i198310-198501
main35617-32010×2i198501-198708
main35617-32011×2i198708-198711
