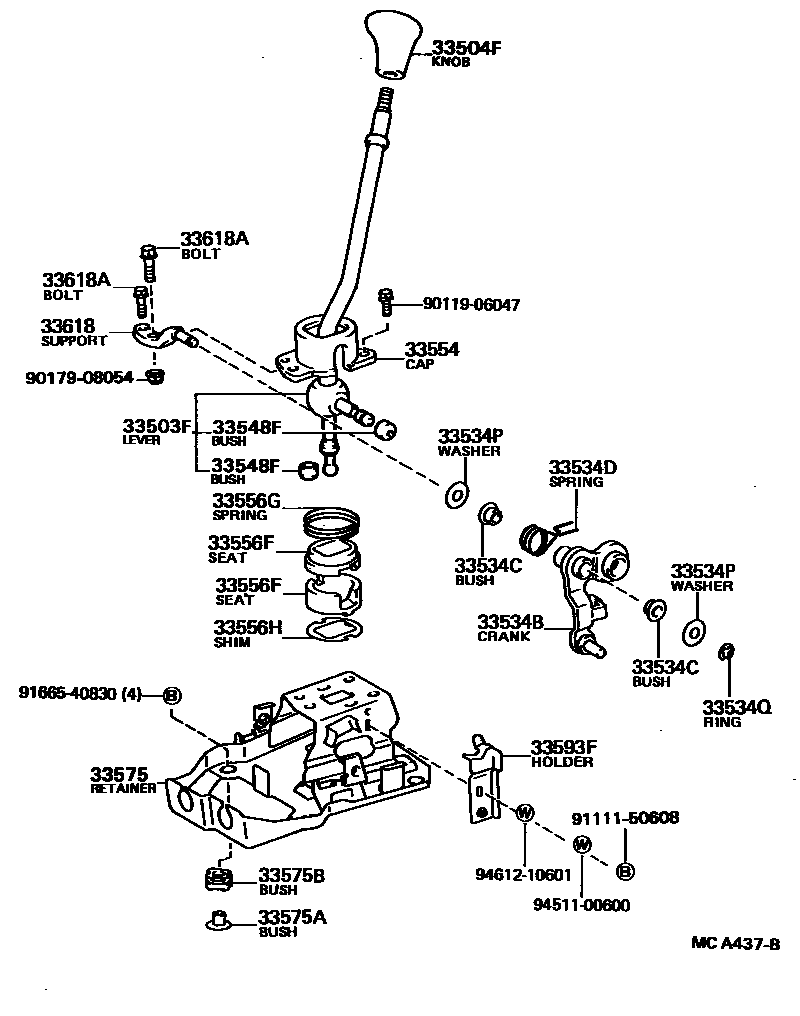

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
W/URETHANE STEERING WHEEL
33504FKNOB SUB-ASSY, SHIFT LEVER
GRAY,W/*USW,GRAY,TRIM1#
sub33504-24010
MAROON,W/*USW,RED/MAROON,TRIM3#
sub33504-24010
GRAY,W/*USW,GRAY,TRIM1#
sub33504-24010
BLUE,W/*USW,BLUE,TRIM8#
sub33504-24010
GRAY,W/*USW,GRAY,TRIM1#
sub33542-10020
MAROON,W/*USW,MAROON,TRIM3#
sub33542-10020
BLUE,W/*USW,BLUE,TRIM8#
sub33542-10020
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
33534BCRANK, SELECTING BELL, NO.1
33534CBUSH (FOR SELECTING BELLCRANK NO.1)
33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
33534QRING, E (FOR SELECTING BELLCRANK NO.1)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33554CAP, SHIFT LEVER
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
LWR
UPR
33556GSPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
33556HSHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
T=0.5,MARK C 0R 5,T=0.5
T=0.6,MARK D 0R 6,T=0.6
T=0.7,MARK E 0R 7,T=0.7
T=0.8,MARK F 0R 8,T=0.8
T=0.9,MARK G 0R 9,T=0.9
T=1.0,MARK H 0R 10,T=1.0
T=1.1,MARK K 0R 11,T=1.1
T=1.2,MARK L 0R 12,T=1.2
33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
33593FHOLDER, SPRING (FOR FLOOR SHIFT)
33618SUPPORT, SELECTING BELLCRANK, NO.1
sub33618-12040
33618ABOLT (FOR SELECTING BELLCRANK SUPPORT)
*6-1.00PX25-10
*8-1.25PX28-13,*8-1.25PX28-13
*6-1.00PX24-20,*6-1.00PX24-20
9011906047
main90119-06047
9017908054
main90179-08054
9111150608
main91111-50608
9166540830
main91665-40830
9451100600
main94511-00600
9461210601
main94612-10601
24 parts on this diagram · 6 diagrams in section
