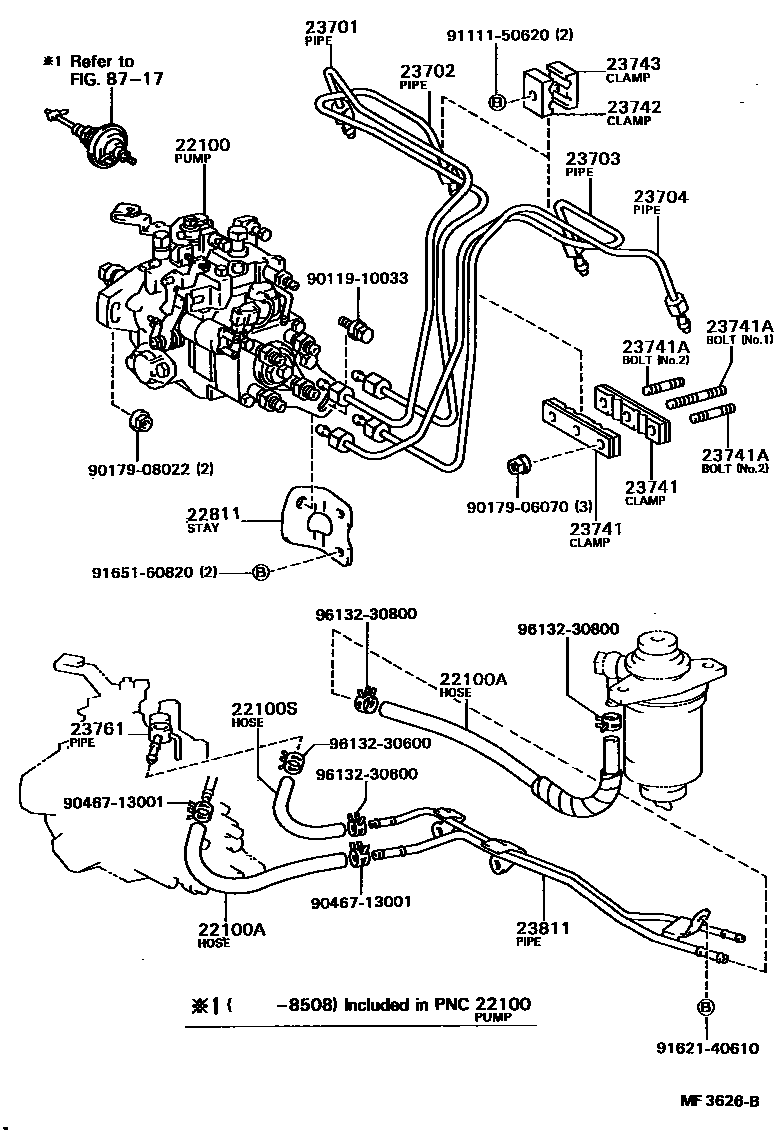

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-64580i2CL..CT150198310-198501

sub22100-64610

main22100-64600i2CL..CT150..GEN198310-198508

HIGH ALTITUDE SPEC

main22100-64610i2CL..CT150..EUG198310-198501

COLD SPEC

main22100-64610i2CL..CT150198501-198508

main22100-6A100i2CL..CT150198508-198711

main22100-6A120i2CL..CT150..GEN198508-198711

HIGH ALTITUDE SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64080i2CL..CT150198604-198706

FILTER TO PUMP

sub23271-64081

main23271-64081i2CL..CT150198706-198711

FILTER TO PUMP

main23273-64030i2CL..CT150..GEN198402-198711

W/HAC,PIPE TO PUMP

main23273-64030i2CL..CT150198310-198711

PIPE TO PUMP

main90447-14021i2CL..CT150198405-198604

FILTER TO PUMP

main95332-08020i2CL..CT150..GEN198310-198402

L=200(*H,L=110),W/HAC,PIPE TO PUMP

sub95333-08020

main95332-08040i2CL..CT150198310-198405

L=400(*H,L=340),FILTER TO PUMP

sub95333-08040

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main95332-06020i2CL..CT150198310-198702

*H,L=130

sub95333-06020

main95333-06020i2CL..CT150198702-198711

*H,L=130

sub95337-06020

22811STAY, INJECTION PUMP, NO.1

main22811-64010i2CL..CT150198310-198711

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64060i2CL..CT150198310-198711

sub23701-64050

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64060i2CL..CT150198310-198711

sub23702-64050

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64060i2CL..CT150198310-198711

sub23703-64050

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64060i2CL..CT150198310-198711

sub23704-64050

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i2CL..CT150198310-198711

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i2CL..CT150198310-198711

NO.1

sub90116-06095

main92122-60622i2CL..CT150198310-198711

NO.2

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i2CL..CT150198310-198711

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i2CL..CT150198310-198711

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64030i2CL..CT150198310-198711

main23764-64040i2CL..CT150..GEN198310-198711

HIGH ALTITUDE SPEC

sub23764-64041

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64020i2CL..CT150198310-198711

8717

9011910033

main90119-10033

9017906070

main90179-06070

9017908022

main90179-08022

9046713001

main90467-13001

9111150620

main91111-50620

9162140610

main91621-40610

9165160820

main91651-60820

9613230600

main96132-30600

9613230800

main96132-30800

24 parts on this diagram · 1 diagram in section
