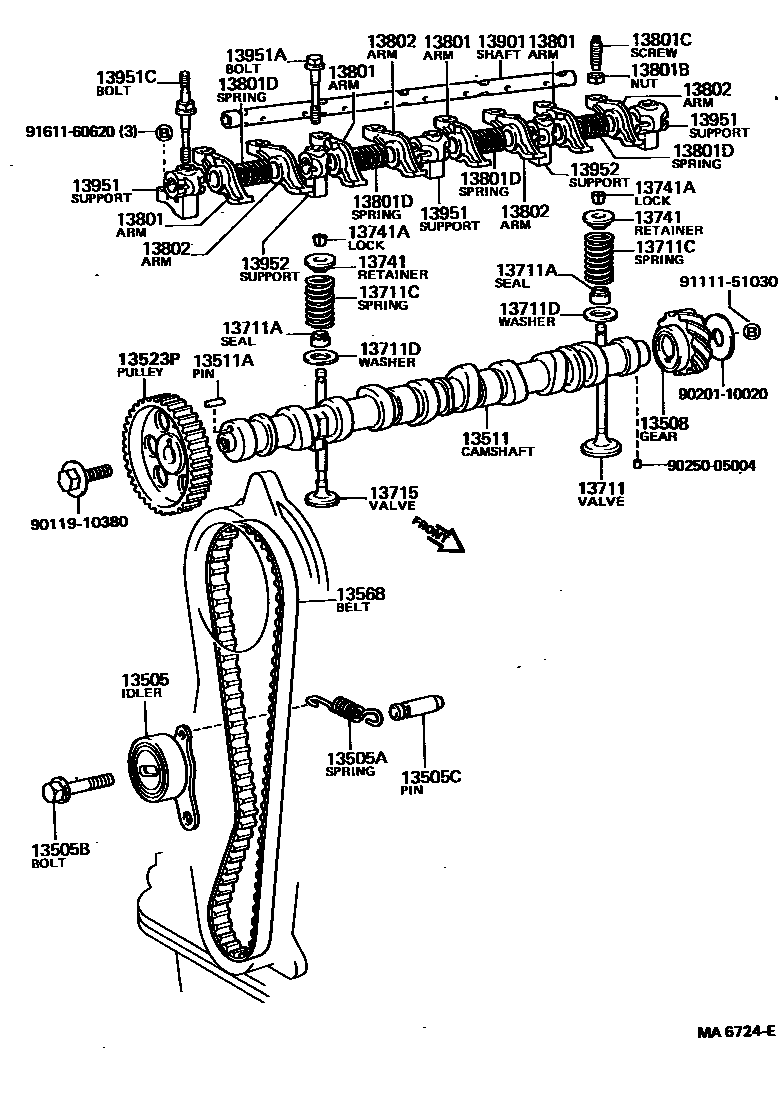

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-15040i4AL#..AT151198310-198508

sub13505-15041

main13505-15041i4AL#..AT151198508-198711

main13505-63010i1S#,2SEL..ST15#198310-198711

sub13505-63011

main13505-64020i2CL..CT150198310-198612

sub13505-64021

main13505-64021i2CL..CT150198612-198711

sub13505-64011

13505ASPRING, TENSION(FOR IDLER)

main90506-14016i4AL#..AT151198310-198603

sub90507-18017

main90506-20039i1S#,2SEL..ST15#198310-198711

main90507-18006i2CL..CT150198310-198711

main90507-18017i4AL#..AT151198603-198711

13505BBOLT, FLANGE (FOR IDLER)

main91511-61040i4AL#..AT151198310-198711

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i2CL..CT150198310-198711

main90249-06006i4AL#..AT151198310-198711

13508GEAR SUB-ASSY, DISTRIBUTOR DRIVE

main13508-15010i4AL#..AT151198310-198711

13511CAMSHAFT

main13501-63010i1S#,2SEL..ST15#198310-198711

sub13501-63011

main13511-14010i4AL#..AT151198310-198711

main13511-64010i2CL..CT150198310-198501

main13511-64011i2CL..CT150198501-198508

main13511-64030i2CL..CT150198508-198711

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i2CL..CT150198310-198711

L=15,OD=5

13523PPULLEY, CAMSHAFT TIMING

main13051-64010i2CL..CT150198310-198501

main13051-64011i2CL..CT150198501-198711

sub13051-64012

main13523-14010i4ALC..AT151198608-198711

main13523-15010i4AL..AT151198310-198711

main13523-63020i1S#,2SEL..ST15#198310-198711

13568BELT, TIMING

main13568-15010i4AL#..AT151198310-198711

sub13568-19125

main13568-63020i1S#,2SEL..ST15#198310-198711

sub13568-63022

main13568-64010i2CL..CT150198310-198603

sub13568-64011

main13568-64011i2CL..CT150198603-198711

sub13568-69065

13711VALVE, INTAKE

main13711-15010i4ALC..AT151198608-198711

sub13711-15030

main13711-15030i4AL..AT151198310-198711

main13711-63010i1S#,2SEL..ST15#198310-198711

main13711-64010i2CL..CT150198310-198504

sub13711-64011

sub13751-64011

main13711-64011i2CL..CT150198504-198508

main13711-64020i2CL..CT150198508-198711

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02038i4AL#..AT151198310-198711

main90913-02053i2CL..CT150198310-198711

sub90913-02110

main90913-02057i1S#,2SEL..ST15#198310-198709

sub90913-02094

main90913-02075i1S#,2SEL..ST15#198709-198711

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-42003i4AL#..AT151198705-198711

main90501-42004i4AL#..AT151198310-198705

sub90501-42003

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16010i2CL..CT150198310-198711

main90201-21002i4AL#..AT151198310-198711

13715VALVE, EXHAUST

main13715-15010i4AL#..AT151198310-198711

main13715-63011i1S#,2SEL..ST15#198310-198711

main13715-64010i2CL..CT150198310-198504

main13715-64012i2CL..CT150198504-198508

main13715-64030i2CL..CT150198508-198711

13741RETAINER, VALVE SPRING

main13740-43010i1S#,2SEL..ST15#198310-198711

EXHAUST

main13741-15010i4AL#..AT151198310-198711

main13741-43010i2CL..CT150198310-198711

main13741-63010i1S#,2SEL..ST15#198310-198711

INTAKE

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i1S#,2SEL..ST15#198310-198711

main90913-03014i2CL..CT150198310-198711

main90913-03017i4AL#..AT151198310-198711

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-15010i4AL#..AT151198310-198711

main13811-63020i1S#,2SEL..ST15#198310-198711

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-07001i4AL#..AT151198310-198711

13801CSCREW, VALVE ADJUSTING

main90913-05018i4AL#..AT151198310-198711

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-14025i4AL#..AT151198310-198711

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13812-15010i4AL#..AT151198310-198711

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-15010i4AL#..AT151198310-198711

13951SUPPORT, VALVE ROCKER, NO.1

main13951-15010i4AL#..AT151198310-198711

13951ABOLT(FOR ROCKER SUPPORT SET)

main90109-08029i4AL#..AT151198310-198711

main91621-60840i2CL..CT150198501-198711

main91651-60845i2CL..CT150198310-198501

sub91651-B0845

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main90109-08028i4AL#..AT151198310-198711

13952SUPPORT, VALVE ROCKER, NO.2

main13952-15010i4AL#..AT151198310-198711

9011910380

main90119-10380

9020110020

main90201-10020

9025005004

main90250-05004

9111151030

main91111-51030

9161160620

main91611-60620

31 parts on this diagram · 3 diagrams in section
