REAR BUMPER & BUMPER STAY

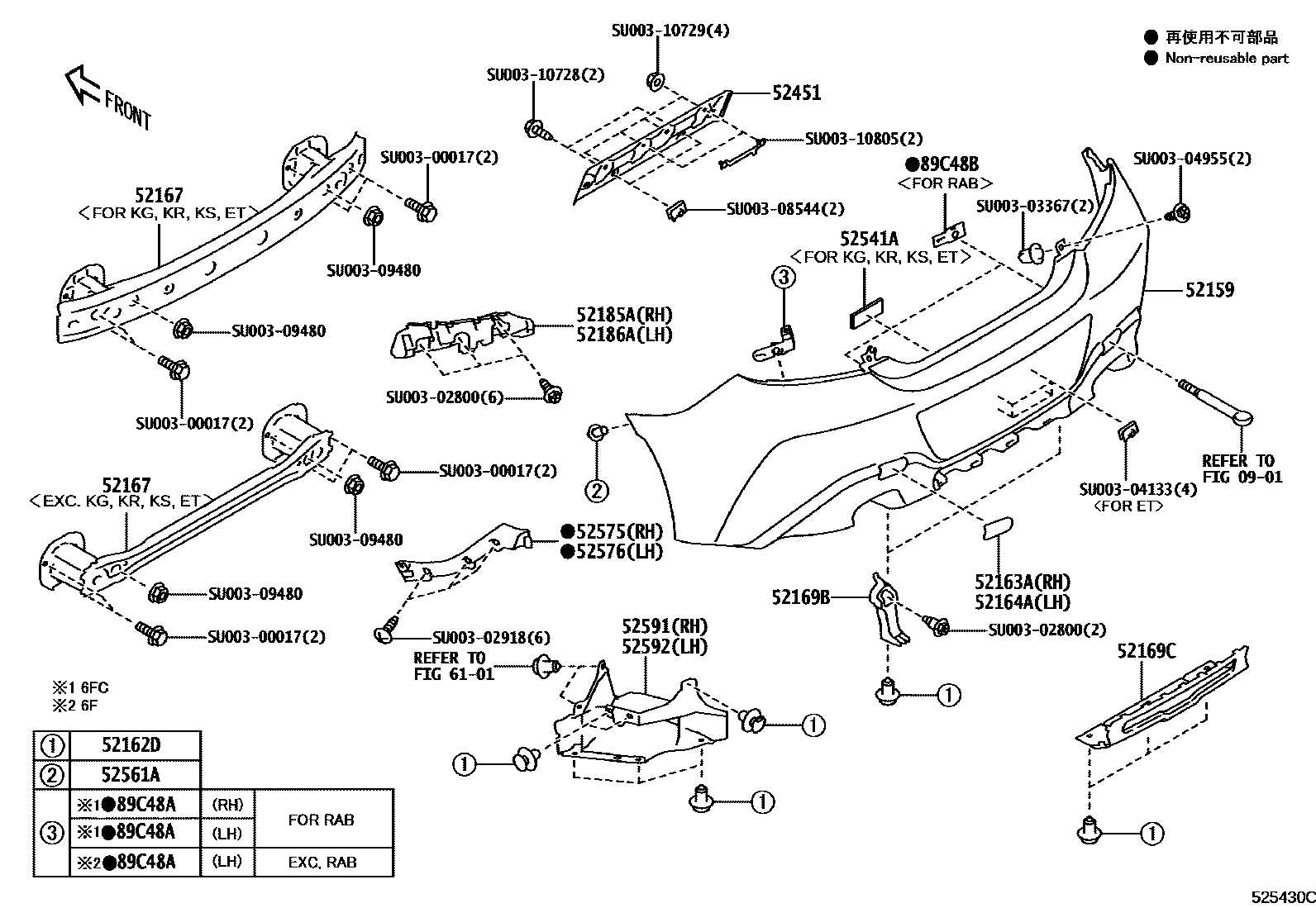

Parts diagram

0901

52159COVER, REAR BUMPER

mainSU00309219i202203-202204

PAINT REQ

mainSU00309886i202203-202204

PAINT REQ

mainSU00311049i202205-202208

PAINT REQ

mainSU00311093i202206-202208

PAINT REQ

mainSU00311206i202206-202310

PAINT REQ

mainSU00311207i202208-202310

PAINT REQ

mainSU00311248i202408

PAINT REQ

52162DPIECE, REAR BUMPER

mainSU00302984×17i202206-202310

52163APLATE, REAR BUMPER, RH

mainSU00309271i202203-202206

52164APLATE, REAR BUMPER, LH

mainSU00309272i202206-202310

52167REINFORCEMENT, REAR BUMPER

mainSU00308593i202206-202310

DESTINATION CODE=KS

mainSU00308594i202311

DESTINATION CODE=E1

52169BBRACKET, REAR BUMPER, CENTER

mainSU00309231×2i202408

52169CCOVER, REAR BUMPER, LOWER

mainSU00309273i202311

NO PAINT REQ.

52185ABRACKET, REAR BUMPER SIDE, RH

mainSU00310932i202311

52186ABRACKET, REAR BUMPER SIDE, LH

mainSU00310933i202311

52451GUARD, REAR BUMPER

mainSU00310806i202311

52541APROTECTOR, REAR BUMPER

mainSU00304202i202311

52561ACLIP(FOR REAR BUMPER RETAINER)

mainSU00302988×2i202203-202206

mainSU00311351×2i202212-202308

mainSU00311774×2i202408

52575RETAINER, REAR BUMPER SIDE, RH

mainSU00309229i202311

52576RETAINER, REAR BUMPER SIDE, LH

mainSU00309230i202311

52591SEAL, REAR BUMPER SIDE, RH

mainSU00309269i202311

52592SEAL, REAR BUMPER SIDE, LH

mainSU00309270i202408

6101

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

mainSU00309240i202203-202206

DESTINATION CODE=E1,BRIGHT BLUE,DAR,RH

mainSU00309241i202203-202206

DESTINATION CODE=KG,SAPPHIRE BLUE PEARL,WCH,RH

mainSU00309242i202203-202206

DESTINATION CODE=KG,MAGNETITE GRAY M,P8Y,RH

mainSU00309243i202203-202206

DESTINATION CODE=KS,ICE SILVER METALLIC,G1U,RH

mainSU00309244i202206-202310

DESTINATION CODE=E3,IGNITION RED,DCK,RH

mainSU00309245i202203-202206

CRYSTAL BLACK SILICA,D4S,RH

mainSU00309246i202408

DESTINATION CODE=E3,CRYSTAL WHITE PEARL,K1X,RH

mainSU00309247i202203-202206

DESTINATION CODE=KR,BRIGHT BLUE,DAR,LH

mainSU00309248i202311

DESTINATION CODE=KG,SAPPHIRE BLUE PEARL,WCH,LH

mainSU00309249i202203-202206

DESTINATION CODE=E3,MAGNETITE GRAY M,P8Y,LH

mainSU00309250i202206-202310

ICE SILVER METALLIC,G1U,LH

mainSU00309251i202206-202310

DESTINATION CODE=E1,IGNITION RED,DCK,LH

mainSU00309252i202203-202206

DESTINATION CODE=KG,CRYSTAL BLACK SILICA,D4S,LH

mainSU00309253i202206-202310

DESTINATION CODE=KG,CRYSTAL WHITE PEARL,K1X,LH

mainSU00309254i202206-202310

mainSU00311095i202206-202310

DESTINATION CODE=E1,SOLAR ORANGE PEARL,RH

mainSU00311096i202206-202310

DESTINATION CODE=KG,SOLAR ORANGE PEARL,LH

mainSU00311493i202311

DESTINATION CODE=KR,OASIS BLUE,XDA,RH

mainSU00311494i202311

DESTINATION CODE=E3,OASIS BLUE,XDA,LH

mainSU00312006i202408

MOSS GREEN,DMG,RH

mainSU00312007i202408

DESTINATION CODE=KG,MOSS GREEN,DMG,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

mainSU00309233×2i202203-202206

BRIGHT BLUE,DAR

mainSU00309234×2i202408

SAPPHIRE BLUE PEARL,WCH

mainSU00309235×2i202203-202206

MAGNETITE GRAY M,P8Y

mainSU00309236×2i202311

ICE SILVER METALLIC,G1U

mainSU00309237×2i202311

IGNITION RED,DCK

mainSU00309238×2i202206-202310

CRYSTAL BLACK SILICA,D4S

mainSU00309239×2i202203-202206

CRYSTAL WHITE PEARL,K1X

mainSU00311094×2i202206-202310

SOLAR ORANGE PEARL

mainSU00311492×2i202311

OASIS BLUE,XDA

mainSU00312005×2i202408

MOSS GREEN,DMG

SU00300017

mainSU003-00017

SU00302800

mainSU003-02800

SU00302918

mainSU003-02918

SU00303367

mainSU003-03367

SU00304133

mainSU003-04133

SU00304955

mainSU003-04955

SU00308544

mainSU003-08544

SU00309480

mainSU003-09480

SU00310728

mainSU003-10728

SU00310729

mainSU003-10729

SU00310805

mainSU003-10805

31 parts on this diagram · 1 diagram in section
