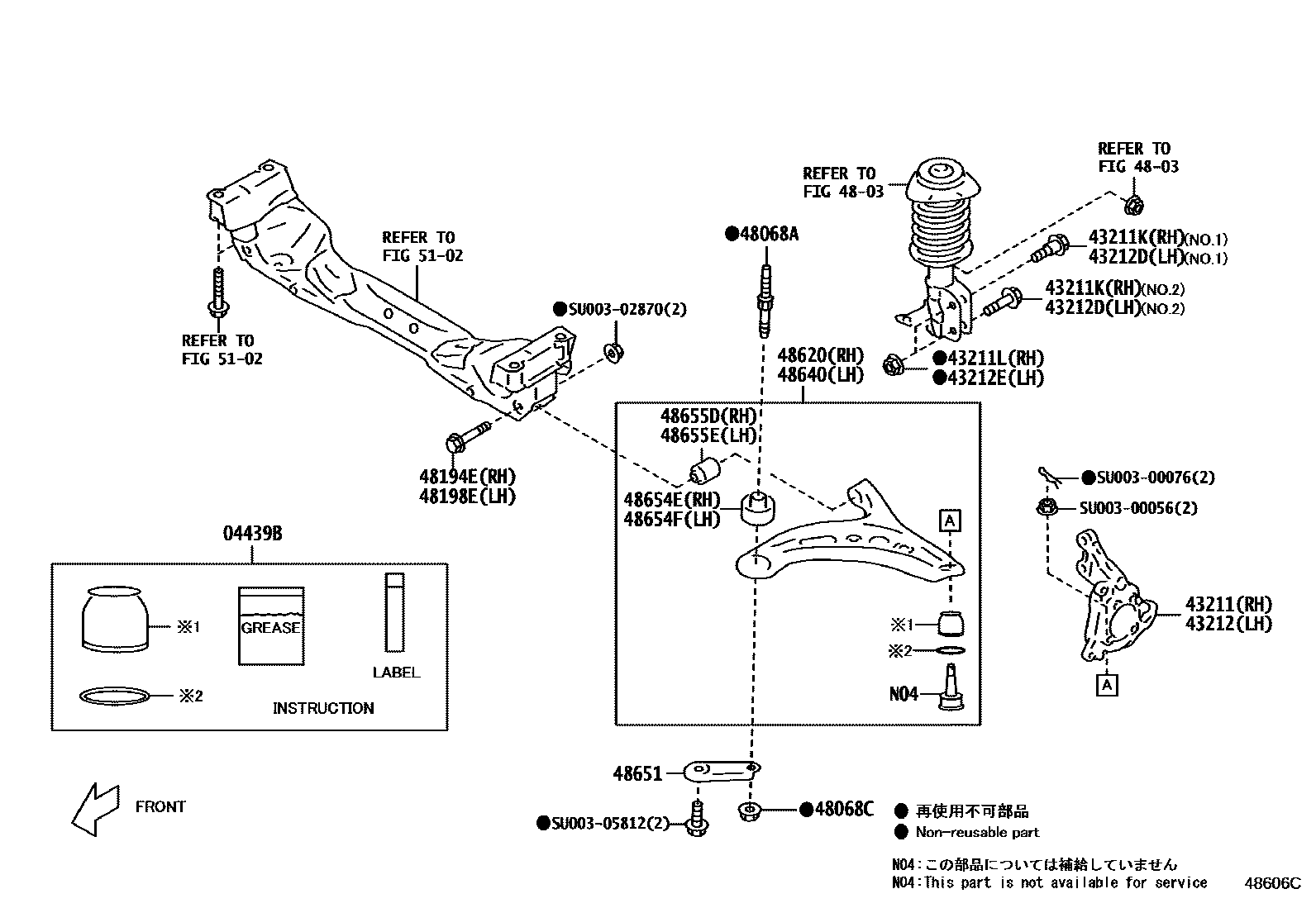

FRONT AXLE ARM & STEERING KNUCKLE

04439BCOVER KIT, FRONT SUSPENSION LOWER ARM BALL JOINT DUST

mainSU00311201×2iZN6201612-201709

43211KNUCKLE, STEERING, RH

mainSU00300779iZN6201608-201612

mainSU00307497iZN6..H201903-202104

43211KBOLT (FOR STEERING KNUCKLE RH)

mainSU00302805iZN6201608-201709

OPTION CODE=WF,NO.1:REFER ILLUST.

mainSU00302818iZN6..G201804-201904

OPTION CODE=IJ,NO.2:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

mainSU00302889×2iZN6..H201903-202104

43212KNUCKLE, STEERING, LH

mainSU00300780iZN6201608-201612

mainSU00307498iZN6..H201903-202104

43212DBOLT (FOR STEERING KNUCKLE LH)

mainSU00302805iZN6201608-201709

OPTION CODE=WF,NO.1:REFER ILLUST.

mainSU00302818iZN6..G201804-201904

OPTION CODE=IJ,NO.2:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

mainSU00302889×2iZN6201608-201709

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

mainSU00307310×2iZN6201608-201709

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

mainSU00302871×2iZN6201608-201709

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

mainSU00300399iZN6201608-201709

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

mainSU00300399iZN6201608-201709

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

mainSU00300354iZN6201608-201709

mainSU00308016iZN6..G201805-201904

mainSU00310055iZN6202011-202104

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

mainSU00300355iZN6201608-201709

mainSU00308017iZN6..G201805-201904

mainSU00310056iZN6202011-202104

48651PLATE, LOWER ARM SUPPORT

mainSU00300359×2iZN6201608-201709

48654EBUSH, FRONT LOWER ARM, NO.1 RH

mainSU00300357iZN6201608-201709

48654FBUSH, FRONT LOWER ARM, NO.1 LH

mainSU00300357iZN6201608-201709

48655DBUSH, FRONT LOWER ARM, NO.2 RH

mainSU00300356iZN6201608-201709

48655EBUSH, FRONT LOWER ARM, NO.2 LH

mainSU00300356iZN6201608-201709

5102

SU00300056

mainSU003-00056

SU00300076

mainSU003-00076

SU00302870

mainSU003-02870

SU00305812

mainSU003-05812

24 parts on this diagram · 1 diagram in section
