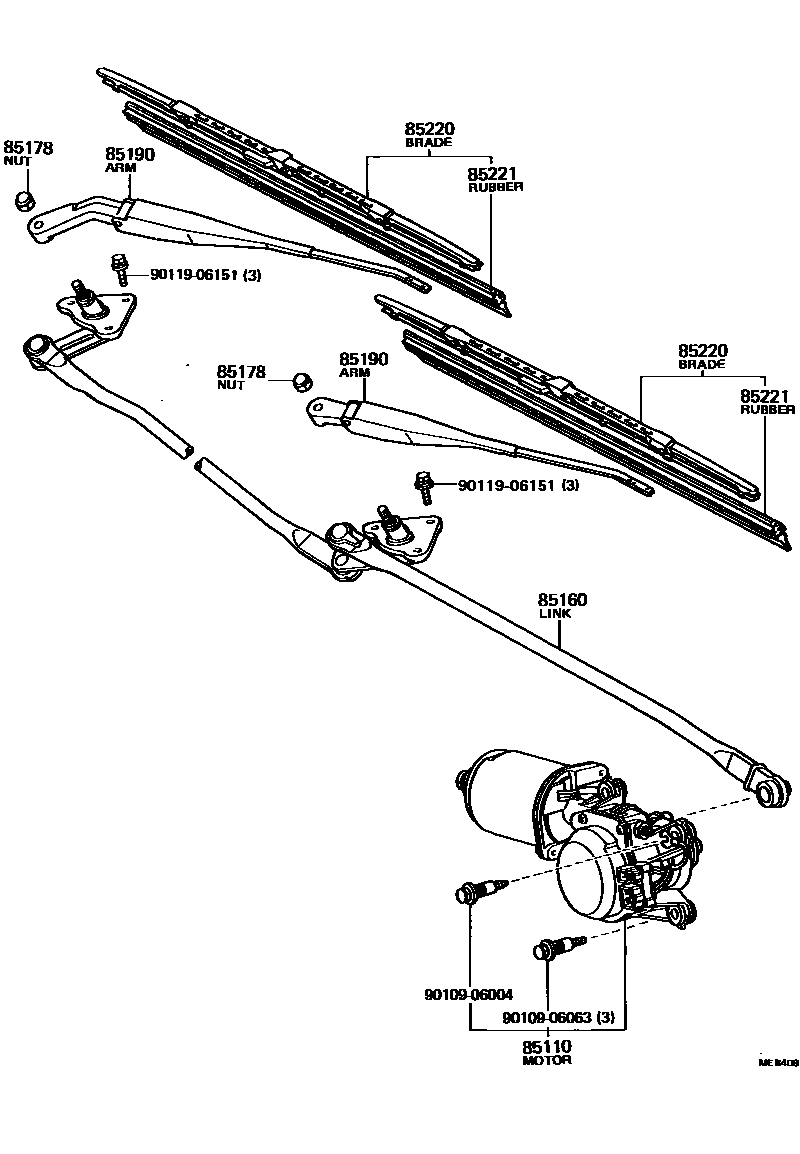

WINDSHIELD WIPER

0001 1 0002 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14170iCT140,RT140,TT14#..LHD198201-198310

main85110-14190iCT140,RT142,ST141,TT14#..RHD198201-198612

main85110-20200iCT141198601-198612

main85110-20270iCT141,YT140..RHD198612-199907

main85110-20410iCT141,YT140..LHD198612-199907

sub85110-12590

85160LINK ASSY, WINDSHIELD WIPER

main85160-14220iCT140,RT142,ST141,TT14#..RHD198201-198612

main85160-14230iCT140,RT140,ST141,TT14#..LHD198201-199907

main85160-20211iCT141198601-198612

main85160-20270iCT141,YT140..RHD198612-199907

main85160-20280iCT141,YT140..LHD198612-199907

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iCT140,RT14#,ST141,TT14#198201-198508

main90176-08033iCT141,RT142,ST141198508-198612

main90176-08034iCT141,YT140198612-199907

85190ARM ASSY, WINDSHIELD WIPER

main85190-14340iCT140,TT14#..RHD198201-198203

RH

main85190-14350iCT140,RT140,TT14#..LHD198201-198211

RH

main85190-14510iCT140,RT140,TT14#..LHD198211-198508

RH

main85190-20244iCT141198601-198612

RH

main85190-20350iCT140,RT142,ST141,TT14#..RHD198203-198612

RH

main85190-20550iCT141..5F198612-198911

RH

sub85190-20551

main85190-20551iCT141..5F198911-199907

RH

main85190-20560iCT141,YT140..LHD198612-198911

RH

sub85190-20561

main85190-20561iCT141,YT140..LHD198911-199907

RH

main85210-14060iCT140,TT14#..RHD198201-198203

LH

main85210-14080iCT140,RT140,TT14#..LHD198201-198211

LH

main85210-14230iCT140,RT140,TT14#..LHD198211-198508

LH

main85210-20054iCT141198601-198612

LH

main85210-20100iCT140,RT142,ST141,TT14#..RHD198203-198612

LH

main85210-20180iCT141..5F198612-198911

LH

sub85210-20181

main85210-20181iCT141..5F198911-199907

LH

main85210-20190iCT141,YT140..LHD198612-198911

LH

sub85210-20191

main85210-20191iCT141,YT140..LHD198911-199907

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14310iCT140,TT14#..RHD198201-198203

RH

main85220-14320iCT140,RT140,TT14#..LHD198201-198211

LH

sub85220-16270

main85220-14360iCT140,TT14#..RHD198201-198203

LH

main85220-14370iCT140,RT140,TT14#..LHD198201-198211

RH

sub85220-16150

main85220-16100iCT140,RT142,ST141,TT14#..RHD198211-198612

RH

sub85220-16180

main85220-16110iCT140,RT142,ST141,TT14#..RHD198211-198612

LH

sub85220-16130

main85220-16140iCT140,RT140,TT14#..LHD198211-198508

LH

sub85220-16270

main85220-16150iCT140,RT140,TT14#..LHD198211-198508

RH

sub85220-16640

main85220-16450iCT141..5F198601-198911

RH

sub85220-16451

main85220-16451iCT141..5F198911-199907

RH

sub85220-16350

main85220-16460iCT141..5F198601-198911

LH

sub85220-16461

main85220-16461iCT141..5F198911-199907

LH

sub85220-16321

main85220-16470iCT141,YT140..LHD198612-198911

LH

sub85220-16471

main85220-16471iCT141,YT140..LHD198911-199907

LH

sub85212-30290

main85220-16680iCT141,YT140..LHD198612-198911

RH

sub85220-16681

main85220-16681iCT141,YT140..LHD198911-199907

RH

main85220-20260iCT140,TT14#..RHD198203-198211

LH

sub85220-16130

main85220-30220iCT140,TT14#..RHD198203-198211

RH

sub85220-30240

85221BLADE, WINDSHIELD WIPER

main85221-12120iCT140,RT140,TT14#..LHD198201-198308

sub85214-24H90

main85221-30080iCT140,ST141,TT14#..RHD198201-198308

sub85223-12690

main85221-30100iCT140,RT140,TT14#..LHD198308-199907

sub85221-40040

main85221-30120iCT14#,RT142,ST141,TT14#,YT140..RHD198308-199907

sub85221-40040

9010906004

main90109-06004

9010906063

main90109-06063

9011906151

main90119-06151

9 parts on this diagram · 3 diagrams in section
