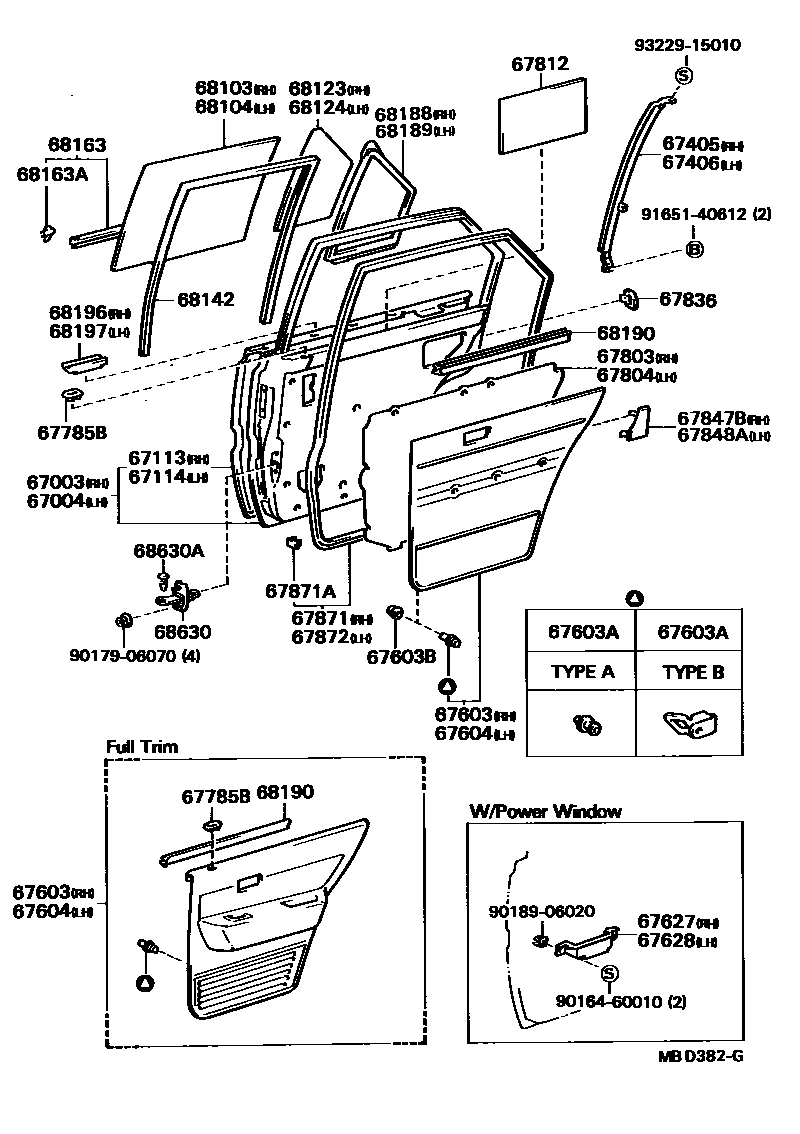

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-20220iCT140,RT140,TT14#..SED198201-199907

sub67003-20240

main67003-20230iTT141..GL..GEN198212-198310

W/*PW

main67003-20240iTT14#..ME198201-198310

main67003-20250iCT140,RT140,TT14#..SED..(GEN,PHL)198201-198310

CKD

main67003-20440iCT141,YT140198612-199207

sub67003-20670

main67003-20670iCT141,YT140199207-199907

main67003-91265iST141..WG..GEN198310-198708

sub67003-91267

main67003-91265iCT140,RT140,TT14#..WG198204-198310

CKD

sub67003-91267

main67003-91267iCT140,TT14#..WG..MTM198201-198508

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-20220iCT141,ST141..SED..GEN198201-198612

sub67004-20240

main67004-20230iTT141..GL..GEN198212-198310

W/*PW

main67004-20240iTT14#..ME198201-198310

main67004-20250iCT140,RT140,TT14#..SED..(GEN,PHL)198201-198310

CKD

sub67004-20220

main67004-20440iCT141,YT140198612-199207

sub67004-20680

main67004-20680iCT141,YT140199207-199907

main67004-91265iTT141..WG198310-198708

sub67004-91267

main67004-91265iCT140,RT140,TT14#..WG198204-198310

CKD

sub67004-91267

main67004-91267iCT140,TT14#..WG..MTM198201-198508

67113PANEL, REAR DOOR, OUTER RH

main67113-20080iCT140,TT14#..SED198201-199907

sub67113-20120

main67113-20120iST141..GEN198310-199907

main67113-20120iCT140,RT140,TT14#198201-198310

*GIS

67114PANEL, REAR DOOR, OUTER LH

main67114-20080iCT140,TT14#..SED198201-199907

sub67114-20120

main67114-20120iCT140,RT140,TT14#198201-198310

*GIS

main67114-20120iCT140,RT140,TT14#198310-199907

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-20090iCT14#,RT14#,ST141,TT14#..SED198201-198612

main67407-20130iCT141,YT140198612-199907

main67407-91256iCT140,RT140,TT14#..WG198201-198207

sub67407-91C02

main67407-91C02iCT140,RT14#,ST141,TT14#..WG198207-199907

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-20080iCT14#,RT14#,ST141,TT14#..SED198201-198612

main67408-20120iCT141,YT140198612-199907

main67408-91256iCT140,RT140,TT14#..WG198201-198207

sub67408-91C02

main67408-91C02iCT140,RT14#,ST141,TT14#..WG198207-199907

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67603-20900-04iTT141..GL198212-198310

W/*PW,BLUE,BLUE

main67603-20900-06iTT141..GL198212-198310

W/*PW,SADDLE BROWN,BROWN

main67630-20562-04iTT141..GL198310-198412

W/*PW,BLUE,BLUE

main67630-20562-06iTT141..GL198310-198412

W/*PW,SADDLE BROWN,BROWN

main67630-20580-01iCT141,YT140198201-199907

BLACK,BLACK

main67630-20580-04iTT140..SED..STD198201-198310

BLUE,BLUE

main67630-20580-06iCT140,TT140..STD198201-198310

SADDLE BROWN,BROWN

main67630-20580-14iCT141,YT140198705-199907

SINGAPORE TAXI,NTUC,BLUE,BLUE

main67630-20591-01iCT141198601-198612

BLACK,BLACK

main67630-20600-01iCT140,TT14#..SED..(DLX,TAX)198201-198310

BLACK,BLACK

main67630-20600-04iCT140,TT14#..SED..(DLX,TAX)198201-198310

BLUE,BLUE

main67630-20600-06iCT140,TT14#..SED..(DLX,TAX)198201-198310

SADDLE BROWN,BROWN

main67630-20620-01iTT141..GL198201-198310

BLACK,BLACK

main67630-20620-04iTT141..GL198201-198310

BLUE,BLUE

main67630-20620-06iTT141..GL198201-198310

SADDLE BROWN,BROWN

main67630-20760iTT141..GL198212-198310

W/*PW,BLACK

main67630-20761iTT141..GL198310-198412

W/*PW,BLACK

main67630-2B620-01iCT141,YT140198612-199907

W/FULL TRIM,BLACK,BLACK

main67630-91272-01iTT141..WG..4F198201-198310

BLACK,BLACK

main67630-91272-06iTT141..WG..4F198201-198310

SADDLE BROWN,BROWN

main67630-91274-01iTT141..WG198201-199907

BLACK,BLACK

main67630-91274-01iTT141..WG..3FC198201-198310

COLD SPEC,BLACK,BLACK

main67630-91274-06iTT141..WG..3FC198201-198310

COLD SPEC,SADDLE BROWN,BROWN

main67630-91274-06iTT141..WG..4F198201-199907

SADDLE BROWN,BROWN

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12010iCT141,YT140198201-199506

TYPE A

main67771-12010iCT141,YT140198612-199506

W/FULL TRIM,TYPE A

main67771-12050iCT141,YT140199506-199907

W/FULL TRIM,TYPE A

main67771-12050iCT141,YT140199506-199907

TYPE A

main67771-14010iCT141,ST141..SED..GEN198201-199907

TYPE B

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main67772-22010iCT141,YT140198201-199907

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67604-20900-04iTT141..GL198212-198310

W/*PW,BLUE,BLUE

main67604-20900-06iTT141..GL198212-198310

W/*PW,SADDLE BROWN,BROWN

main67640-20562-04iTT141..GL198310-198412

W/*PW,BLUE,BLUE

main67640-20562-06iTT141..GL198310-198412

W/*PW,SADDLE BROWN,BROWN

main67640-20580-01iCT141,YT140198201-199907

BLACK,BLACK

main67640-20580-04iTT140..SED..STD198201-198310

BLUE,BLUE

main67640-20580-06iCT140,TT140..STD198201-198310

SADDLE BROWN,BROWN

main67640-20580-14iCT141,YT140198705-199907

SINGAPORE TAXI,NTUC,BLUE,BLUE

main67640-20591-01iCT141198601-198612

BLACK,BLACK

main67640-20600-01iCT140,TT14#..SED..(DLX,TAX)198201-198310

BLACK,BLACK

main67640-20600-04iCT140,TT14#..SED..(DLX,TAX)198201-198310

BLUE,BLUE

main67640-20600-06iCT140,TT14#..SED..(DLX,TAX)198201-198310

SADDLE BROWN,BROWN

main67640-20620-01iTT141..GL198201-198310

BLACK,BLACK

main67640-20620-04iTT141..GL198201-198310

BLUE,BLUE

main67640-20620-06iTT141..GL198201-198310

SADDLE BROWN,BROWN

main67640-20760iTT141..GL198212-198310

W/*PW,BLACK

main67640-20761iTT141..GL198310-198412

W/*PW,BLACK

main67640-2B630-01iCT141,YT140198612-199907

W/FULL TRIM,BLACK,BLACK

main67640-91272-01iTT141..WG..4F198201-198310

BLACK,BLACK

main67640-91272-06iTT141..WG..4F198201-198310

SADDLE BROWN,BROWN

main67640-91274-01iTT141..WG198201-199907

BLACK,BLACK

main67640-91274-01iTT141..WG..4F198201-198310

COLD SPEC,BLACK,BLACK

main67640-91274-06iTT141..WG..3FC198201-199907

SADDLE BROWN,BROWN

main67640-91274-06iTT141..WG..3FC198201-198310

COLD SPEC,SADDLE BROWN,BROWN

67627BRACKET, REAR DOOR TRIM, RH

main67627-20010iTT141..GL198212-198412

W/*PW

67628BRACKET, REAR DOOR TRIM, LH

main67628-20010iTT141..GL198212-198412

W/*PW

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main69751-12020-01iCT141,YT140199207-199907

BLACK,BLACK

sub69751-20031

sub69751-12020

main69751-20031-01iCT141,YT140198201-199207

BLACK,BLACK

sub69751-20031

main69751-20040-01iCT140,TT14#..DLX,GL,TAX198201-198612

BLACK

main69751-20060-01iCT141,YT140198612-199907

W/FULL TRIM,BLACK,BLACK

sub69751-20060

sub69751-12030

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-14070iCT141,YT140198201-199907

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67842-14020iCT14#,RT14#,ST141,TT14#198201-199907

67812PAD, REAR DOOR SILENCER

main67812-12010iCT140,RT140,TT14#..GEN,PHL198201-198207

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-20030iCT140,RT140,TT14#198201-198301

sub67836-20050

main67836-20050iCT14#,RT14#,ST141,TT14#198301-199907

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-20030iTT141..LHD..(3FC,4F)..DLX..GEN198308-199907

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-20030iCT141,YT140198308-199907

67871WEATHERSTRIP, REAR DOOR, RH

main67871-20130iCT14#,RT14#,ST141,TT14#..SED198201-198612

main67871-20200iCT141,YT140198612-199907

main67871-91261iCT140,RT14#,ST141,TT14#..WG198201-199907

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040iCT14#,RT14#,ST141,TT14#..SED198201-199907

67872WEATHERSTRIP, REAR DOOR, LH

main67872-20130iCT14#,RT14#,ST141,TT14#..SED198201-198612

main67872-20200iCT141,YT140198612-199907

main67872-91261iCT140,RT14#,ST141,TT14#..WG198201-199907

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-14060iCT140,RT140,TT14#..SED198201-198508

*TT,T=3.5,*TT,T=3.5

main68113-20220iTT140..SED..STD198201-198612

*TEM,T=3.5,*TEM,T=3.5

sub68113-14060

main68113-20360iCT141,YT140198612-199907

*TT,T=3.5

main68113-91C01iCT140,RT140,TT140..WG198201-198310

*TEM,T=3.5,*TEM,T=3.5

sub68113-91C02

main68113-91C02iCT140,RT140,TT14#..WG198201-198508

*TT,T=3.5,*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-14060iCT140,RT140,TT14#..SED198201-198508

*TT,T=3.5,*TT,T=3.5

main68114-20140iTT140..SED..STD198201-198612

*TEM,T=3.5,*TEM,T=3.5

sub68114-14060

main68114-20280iCT141,YT140198612-199907

*TT,T=3.5

main68114-91C01iCT140,RT140,TT140..WG198201-198310

*TEM,T=3.5,*TEM,T=3.5

sub68114-91C02

main68114-91C02iCT140,RT140,TT14#..WG198201-198508

*TT,T=3.5,*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-20270iCT141198201-198612

*TEM,T=3.5,*TEM,T=3.5

sub68123-20280

main68123-20280iCT140,RT140,TT14#..SED198201-198508

*TT,T=3.5,*TT,T=3.5

main68123-20350iCT141,YT140198612-199907

*TT,T=3.5

main68123-91263iCT140,RT140,TT140..WG198201-198310

*TEM,T=3.5,*TEM,T=3.5

sub68123-91264

main68123-91264iCT140,RT140,TT14#..WG198201-198508

*TT,T=3.5,*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-20190iCT141198201-198612

*TEM,T=3.5,*TEM,T=3.5

sub68124-20200

main68124-20200iCT140,RT140,TT14#..SED198201-198508

*TT,T=3.5,*TT,T=3.5

main68124-20270iCT141,YT140198612-199907

*TT,T=3.5

main68124-91261iCT140,RT140,TT140..WG198201-198310

*TEM,T=3.5,*TEM,T=3.5

sub68124-91262

main68124-91262iCT140,RT140,TT14#..WG198201-198508

*TT,T=3.5,*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-14030iCT140,RT14#,ST141,TT14#198201-198508

sub68142-91C02

main68142-20080iCT141,YT140198612-199907

main68142-91C02iRT142,ST141198508-199907

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-14040iCT140,RT140,TT140..STD198201-199907

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080iYT140198601-199907

main68211-14100iCT140,RT140,TT140..STD198201-198312

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-20070iCT14#,RT14#,ST141,TT14#..SED198201-198612

main68188-20090iCT141,YT140198612-199907

main68188-91259iCT140,RT14#,ST141,TT14#..WG198201-199907

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-20070iCT14#,RT14#,ST141,TT14#..SED198201-198612

main68189-20090iCT141,YT140198612-199907

main68189-91259iCT140,RT14#,ST141,TT14#..WG198201-199907

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-14070iYT140198201-199907

main68190-14080iRT142;ST141..SED..ARL198201-199907

main68190-14080iCT141,YT140198612-199907

W/FULL TRIM

68196SEAL, REAR DOOR BELT, RH

main68198-20010iCT140,RT140,TT140..STD198201-199907

68197SEAL, REAR DOOR BELT, LH

main68198-20010iCT140,RT140,TT140..STD198201-199907

68630CHECK ASSY, REAR DOOR

main68630-20010iCT14#,RT14#,ST141,TT14#198201-199907

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iRT142,ST141,TT14#198407-198507

sub68617-90A00

main68617-22010iCT140,ST141,TT14#198201-198407

sub68617-12010

main68617-90A00iCT141,YT140198612-199907

sub68617-90A01

main68617-90A01iCT141,RT142,ST141,TT141198507-198612

9016460010

main90164-60010

9017906070

main90179-06070

9018906020

main90189-06020

9165140612

main91651-40612

9322915010

main93229-15010

41 parts on this diagram · 1 diagram in section
