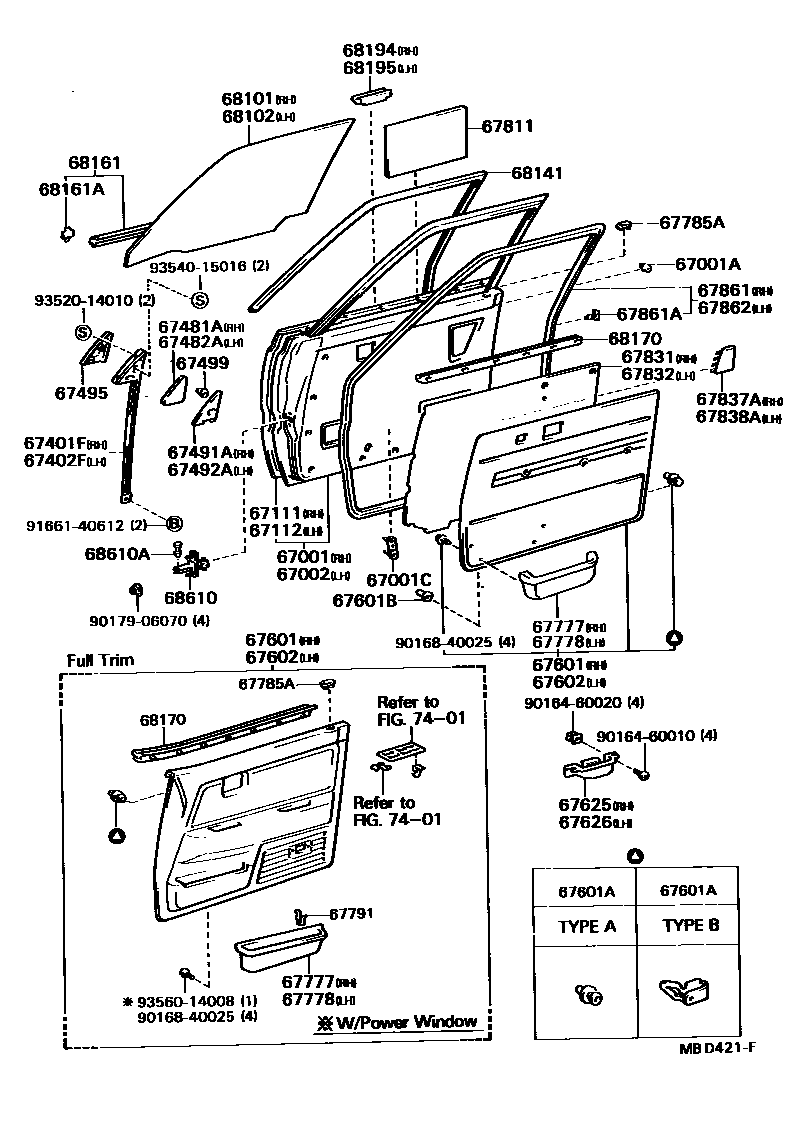

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20340iCT140,TT14#..GEN198201-198310

main67001-20350iTT141..GL..GEN198212-198310

W/*PW

main67001-20360iTT14#..ME198201-198310

main67001-20370iCT140,RT140,TT14#198310-198508

main67001-20440iTT141..GL..ME198212-198310

W/*PW

main67001-20600iCT141,YT140198612-199207

main67001-2B050iCT141,YT140199207-199907

67001ACUSHION, FRONT DOOR PANEL

main90541-09006×4iCT141,YT140198612-199907

67001CGROMMET(FOR FRONT DOOR PANEL)

main90541-07011×2iCT14#,RT14#,ST141,TT14#198201-198612

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20310iCT140,TT14#..GEN198201-198310

main67002-20320iTT141..GL..GEN198212-198310

W/*PW

main67002-20330iTT14#..ME198201-198310

main67002-20340iCT140,TT14#..GEN198210-198310

*GIS

main67002-20410iTT141..GL..ME198212-198310

W/*PW

main67002-20570iCT141,YT140198612-199207

main67002-2B020iCT141,YT140199207-199907

main67002-2B030iCT141..5F199306-199907

W/FR-LH *PW

67111PANEL, FRONT DOOR, OUTER RH

main67111-20140iCT141,YT140198612-199907

main67111-20180iCT140,RT140,TT14#198201-198207

*GIS

67112PANEL, FRONT DOOR, OUTER LH

main67112-20160iCT141,YT140198612-199907

main67112-20200iCT140,RT140,TT14#198201-198207

*GIS

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-14120iCT140,RT14#,ST141,TT14#198201-198612

main67401-14220iCT141198601-198612

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-14120iCT140,RT14#,ST141,TT14#198201-198612

main67402-14210iCT141198601-198612

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-16130iCT141,YT140198612-199907

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-16130iCT141,YT140198612-199907

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-14030iRT142,ST141..CS,CSI,S198304-198508

main67491-14040iRT142,ST141..CSX,CXI198304-198508

W/REMOTE CONTROLED MIRROR

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-14030iST141..S198402-198508

main67492-14040iCT141,YT140198612-199907

W/REMOTE CONTROLED MIRROR

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-14030iCT140,RT140,TT14#198201-198508

RH

main67496-14030iST141..CS,DLX,S198508-198603

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iCT14#,RT14#,ST141,TT14#198201-198612

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-2B100-01iCT140,TT14#..RHD..DLX198201-198310

BLACK,BLACK

main67610-2B100-04iCT140,TT14#..SED..RHD..DLX198201-198310

BLUE,BLUE

main67610-2B100-06iCT140,TT14#..RHD..DLX198201-198310

SADDLE BROWN,BROWN

main67610-2B110-01iCT140,TT14#..LHD..(DLX,TAX)198201-198310

BLACK,BLACK

main67610-2B110-04iCT140,TT14#..SED..LHD..(DLX,TAX)198201-198310

BLUE,BLUE

main67610-2B110-06iCT140,TT14#..LHD..(DLX,TAX)198201-198310

SADDLE BROWN,BROWN

main67610-2B120-01iTT141..RHD..GL198201-198310

BLACK,BLACK

main67610-2B120-04iTT141..RHD..GL198201-198310

BLUE,BLUE

main67610-2B120-06iTT141..RHD..GL198201-198310

SADDLE BROWN,BROWN

main67610-2B130-01iTT141..LHD..GL198201-198310

BLACK,BLACK

main67610-2B130-04iTT141..LHD..GL198201-198310

BLUE,BLUE

main67610-2B130-06iTT141..LHD..GL198201-198310

SADDLE BROWN,BROWN

main67610-2B250-01iCT140,TT140..STD198201-198310

BLACK,BLACK

main67610-2B250-04iTT140..SED..STD198201-198310

BLUE,BLUE

main67610-2B250-06iCT140,TT140..STD198201-198310

SADDLE BROWN,BROWN

main67610-2B251-01iCT141,YT140..LHD198612-199907

BLACK,BLACK

main67610-2B262-01iCT141198601-198612

BLACK,BLACK

main67650-20100iTT141..RHD..GL198212-198310

W/*PW,BLACK

main67650-20101iTT141..GL198310-198401

W/*PW,BLACK

main67650-20102-01iTT141..GL198401-198412

W/*PW,BLACK,BLACK

main67650-20110iTT141..LHD..GL198212-198310

W/*PW,BLACK

main67650-20230-04iTT141..RHD..GL198212-198310

W/*PW,BLUE,BLUE

main67650-20230-06iTT141..RHD..GL198212-198310

W/*PW,SADDLE BROWN,BROWN

main67650-20231-04iTT141..GL198310-198401

W/*PW,BLUE,BLUE

main67650-20231-06iTT141..GL198310-198401

W/*PW,SADDLE BROWN,BROWN

main67650-20232-04iTT141..GL198401-198412

W/*PW,BLUE,BLUE

main67650-20232-06iTT141..GL198401-198412

W/*PW,SADDLE BROWN,SADDLE BROWN

main67650-20240-04iTT141..LHD..GL198212-198310

W/*PW,BLUE,BLUE

main67650-20240-06iTT141..LHD..GL198212-198310

W/*PW,SADDLE BROWN,BROWN

main67650-2B250-01iCT141,YT140..LHD198612-199907

W/FULL TRIM,BLACK,BLACK

main67650-2B260-01iCT141,YT140..RHD198612-199907

BLACK,BLACK

main67650-2B260-04iCT141,YT140198705-199907

SINGAPORE TAXI,NTUC,BLUE,BLUE

main67650-2B440-01iCT141,YT140..RHD198612-199907

W/FULL TRIM,BLACK,BLACK

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12010×20iCT140,RT140,TT14#198201-198508

TYPE A

main67771-12050×22iCT141,YT140199506-199907

TYPE A

main67771-14010×2iCT141,YT140198612-199907

TYPE B

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main67772-22010×2iCT141,ST141..GEN198508-198612

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-20760-01iCT140,TT14#..RHD..DLX198201-198310

BLACK,BLACK

main67620-20760-04iCT140,TT14#..SED..RHD..DLX198201-198310

BLUE,BLUE

main67620-20760-06iCT140,TT14#..RHD..DLX198201-198310

SADDLE BROWN,BROWN

main67620-20770-01iCT140,TT14#..LHD..(DLX,TAX)198201-198310

BLACK,BLACK

main67620-20770-04iCT140,TT14#..SED..LHD..(DLX,TAX)198201-198310

BLUE,BLUE

main67620-20770-06iCT140,TT14#..LHD..(DLX,TAX)198201-198310

SADDLE BROWN,BROWN

main67620-20780-01iTT141..RHD..GL198201-198310

BLACK,BLACK

main67620-20780-04iTT141..RHD..GL198201-198310

BLUE,BLUE

main67620-20780-06iTT141..RHD..GL198201-198310

SADDLE BROWN,BROWN

main67620-20790-01iTT141..LHD..GL198201-198310

BLACK,BLACK

main67620-20790-04iTT141..LHD..GL198201-198310

BLUE,BLUE

main67620-20790-06iTT141..LHD..GL198201-198310

SADDLE BROWN,BROWN

main67620-20890-01iCT140,TT140..STD198201-198310

BLACK,BLACK

main67620-20890-04iTT140..SED..STD198201-198310

BLUE,BLUE

main67620-20890-06iCT140,TT140..STD198201-198310

SADDLE BROWN,BROWN

main67620-20891-01iCT141,YT140..RHD198612-199907

BLACK,BLACK

main67620-20891-14iCT141..5F198705-198802

SINGAPORE TAXI,NTUC,BLUE,BLUE

main67620-2B012-01iCT141198601-198612

BLACK,BLACK

main67620-2B140iTT141..RHD..GL198212-198310

W/*PW,BLACK

main67620-2B141iTT141..GL198310-198412

W/*PW,BLACK

main67620-2B150iTT141..LHD..GL198212-198310

W/*PW,BLACK

main67620-2B240-04iTT141..RHD..GL198212-198310

W/*PW,BLUE,BLUE

main67620-2B240-06iTT141..RHD..GL198212-198310

W/*PW,SADDLE BROWN,BROWN

main67620-2B241-04iTT141..GL198310-198412

W/*PW,BLUE,BLUE

main67620-2B241-06iTT141..GL198310-198412

W/*PW,SADDLE BROWN,BROWN

main67620-2B250-04iTT141..LHD..GL198212-198310

W/*PW,BLUE,BLUE

main67620-2B250-06iTT141..LHD..GL198212-198310

W/*PW,SADDLE BROWN,BROWN

main67620-2D590-01iCT141,YT140..LHD198612-199907

W/FULL TRIM,BLACK,BLACK

main67620-2D600-01iCT141,YT140..LHD198612-199907

BLACK,BLACK

main67620-2D710-01iCT141,YT140..RHD198612-199907

W/FULL TRIM,BLACK,BLACK

main67620-2G510-04iCT141..5F198802-199907

SINGAPORE TAXI,BLUE,BLUE

67625BRACKET, FRONT DOOR TRIM, RH

main67625-20030iTT141..GL198212-198412

W/*PW

67626BRACKET, FRONT DOOR TRIM, LH

main67626-20030iTT141..GL198212-198412

W/*PW

67777POCKET, FRONT DOOR TRIM, RH

main67777-20050-01iTT141..GL198212-198412

W/*PW,BLACK,BLACK

main67777-20050-04iTT141..GL198212-198412

W/*PW,BLUE,BLUE

main67777-20050-06iTT141..GL198212-198412

W/*PW,SADDLE BROWN,BROWN

main67777-20060-01iTT141..RHD..GL198201-198210

BLACK,BLACK

main67777-20060-04iTT141..RHD..GL198201-198210

BLUE,BLUE

main67777-20060-06iTT141..RHD..GL198201-198210

SADDLE BROWN,BROWN

main67777-20061-01iTT141..RHD..GL198210-198310

BLACK,BLACK

main67777-20061-04iCT141,YT140198705-199907

SINGAPORE TAXI,NTUC,BLUE,BLUE

main67777-20061-06iTT141..RHD..GL198210-198310

SADDLE BROWN,BROWN

67778POCKET, FRONT DOOR TRIM, LH

main67778-20010-01iTT141..GL198212-198412

W/*PW,BLACK,BLACK

main67778-20010-04iTT141..GL198212-198412

W/*PW,BLUE,BLUE

main67778-20010-06iTT141..GL198212-198412

W/*PW,SADDLE BROWN,BROWN

main67778-20020-01iTT141..LHD..GL198201-198210

BLACK,BLACK

main67778-20020-04iTT141..LHD..GL198201-198210

BLUE,BLUE

main67778-20020-06iTT141..LHD..GL198201-198210

SADDLE BROWN,BROWN

main67778-20021-01iTT141..LHD..GL198210-198310

BLACK,BLACK

main67778-20021-04iTT141..LHD..GL198210-198310

BLUE,BLUE

main67778-20021-06iTT141..LHD..GL198210-198310

SADDLE BROWN,BROWN

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-12020-01×2iCT141,YT140199207-199907

BLACK,BLACK

main69751-20031-01×2iCT140,RT140,TT140..STD198201-198312

BLACK,BLACK

main69751-20031-34×2iCT141,YT140198705-199207

SINGAPORE TAXI,NTUC,BLUE,BLUE

main69751-20040×2iCT140,TT14#..DLX,GL,TAX198201-198508

main69751-20060-01×2iCT141,YT140198612-199907

W/FULL TRIM,BLACK,BLACK

sub69751-12030

67791RETAINER, FRONT DOOR POCKET

main67791-20030×10iTT141..GL198212-198412

W/*PW

67811PAD, FRONT DOOR SILENCER

main67139-20010×2iCT14#,RT140,ST141,TT14#..GEN,PHL198201-198612

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-14100iCT141,YT140198612-198801

main67831-14110iCT141,YT140198801-199907

main67831-20200iTT141..RHD..GL198212-198412

W/*PW

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-14030iCT14#,RT14#,ST141,TT14#198201-198612

sub67832-14040

main67832-20070iTT141..LHD..GL198212-198310

W/*PW

67837ASEAL, FRONT DOOR VENT, RH

main67837-20040iCT141,YT140198612-199907

67838ASEAL, FRONT DOOR VENT, LH

main67838-20030iTT141..LHD..(3FC,4F)..DLX..GEN198308-198310

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-14230iCT14#,RT14#,ST141,TT14#198201-198612

main67861-20280iCT141,YT140198612-199907

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×42iCT141,YT140198612-199907

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-14230iCT14#,RT14#,ST141,TT14#198201-198612

main67862-20280iCT141,YT140198612-199907

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-14260iCT140,RT140,TT14#198201-198508

*TT,T=4.0,*TT,T=4.0

main68111-20280iST141..S198508-198612

*TEM,T=4.0,*TEM,T=4.0

main68111-20430iCT141,YT140198612-199907

*TT,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-14270iCT140,RT140,TT14#198201-198508

*TT,T=4.0,*TT,T=4.0

main68112-20200iST141..S198508-198612

*TEM,T=4.0,*TEM,T=4.0

main68112-20350iCT141,YT140198612-199907

*TT,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-14060×2iRT142,ST141198304-198508

L=2301

main68141-20200×2iCT141,YT140199207-199907

main68141-91C02×2iRT142,ST141198508-199907

L=1845

main68143-20050×2iRT142,ST141198304-198508

L=450

main68143-91C02×2iCT141,YT140198601-199207

L=450

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-20120iYT140198612-199907

RH

main68210-20090iCT141198601-199907

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080×10iCT141198601-199907

main68211-14100×10iCT140,RT140,TT140..STD198201-198312

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-20180iCT140,RT140,TT140..STD198201-198312

RH

main68170-20190iRT142;ST141..SED..ARL198508-198612

RH

main68220-20120iCT141198601-199907

LH

main68220-20130iRT142;ST141..SED..ARL198508-198612

LH

68194SEAL, FRONT DOOR BELT, RH

main68192-20010iCT140,RT140,TT140..STD198201-198312

68195SEAL, FRONT DOOR BELT, LH

main68192-20010iCT140,RT140,TT140..STD198201-198312

68610CHECK ASSY, FRONT DOOR

main68610-20020×2iCT14#,RT14#,ST141,TT14#198201-198612

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010×2iCT140,RT140,ST141,TT14#198201-198407

sub68617-12010

main68617-90A00×2iCT141,RT142,ST141,TT141198507-198612

main68617-90A01×2iRT142,ST141,TT14#198407-198507

7401

9016460010

main90164-60010

9016460020

main90164-60020

9016840025

main90168-40025

9017906070

main90179-06070

9166140612

main91661-40612

9352014010

main93520-14010

9354015016

main93540-15016

9356014008

main93560-14008

51 parts on this diagram · 1 diagram in section
