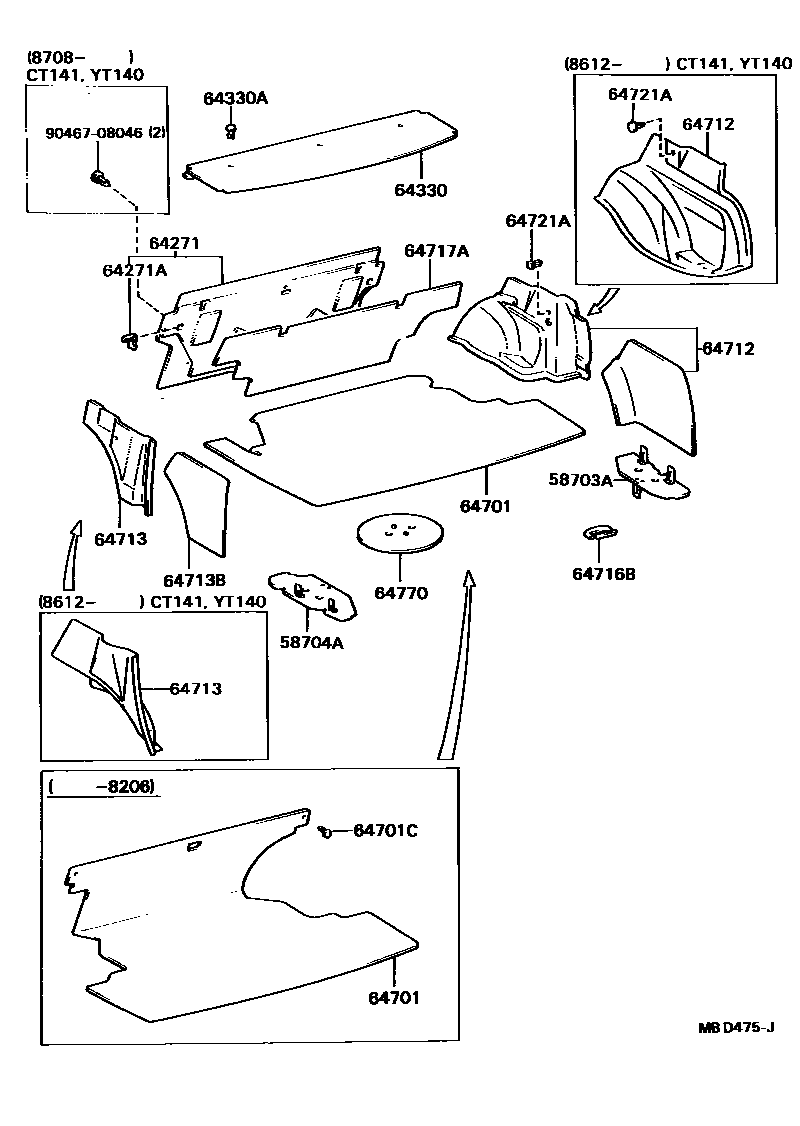

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20030iCT14#,RT14#,ST141,TT14#..SED198201-198612

main58703-20090iCT141,YT140198612-199907

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20020iCT140,RT140,TT14#..SED198201-198612

main58704-20090iCT141,YT140198612-199907

64271BOARD, ROOM PARTITION, NO.1

main64270-14061iCT140,RT140,TT14#..SED198201-198307

main64270-14062iCT141,ST141..SED..GEN198307-198612

main64270-14071iTT141..GL198201-198307

W/*RRS

main64270-14072iTT141..GL198307-198412

W/*RRS

main64270-20050iCT141,YT140198612-199202

sub64271-20250

main64271-20250iCT141,YT140199202-199907

64271ARETAINER, ROOM PARTITION BOARD

main62598-14020iCT141,ST141..SED..GEN198201-198708

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20340-01iCT141,ST141..SED..GEN198201-198612

BLACK,BLACK

sub64330-20340

main64330-20340-04iCT140,RT140,TT14#..SED198201-198508

BLUE,BLUE

sub64330-20340

main64330-20340-06iCT140,RT140,TT14#..SED198201-199907

SADDLE BROWN,BROWN

sub64330-20340

main64330-20420-01iTT141..GL198201-198412

W/*RRS,BLACK,BLACK

sub64330-20420

main64330-20420-04iTT141..GL198201-198412

W/*RRS,BLUE,BLUE

sub64330-20420

main64330-20420-06iTT141..GL198201-198412

W/*RRS,SADDLE BROWN,BROWN

sub64330-20420

main64330-20800-01iCT141,YT140198612-199907

BLACK,BLACK

main64330-2B790-C0iCT141..5F199702-199907

SINGAPOLE SPEC, BLACK,BLACK

main64330-2B800-C0iCT141..5F199210-199702

SINGAPORE SPEC,BLACK,BLACK

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08037-01iCT140,RT140,TT14#..SED198310-198612

BLACK,BLACK

sub90467-08037

main90467-08037-04iCT140,RT140,TT14#..SED198310-198508

BLUE,BLUE

sub90467-08037

main90467-08037-16iCT140,RT140,TT14#..SED198310-199907

SADDLE BROWN,BROWN

sub90467-08037

main90467-08046-01iCT141,YT140198612-199907

BLACK,BLACK

sub90467-08046

sub90467-08037

main90467-09144-01iCT140,RT140,TT14#..SED198201-198310

BLACK,BLACK

sub90467-09144

main90467-09144-14iCT140,RT140,TT14#..SED198201-198310

BLUE,BLUE

sub90467-09144

main90467-09144-26iCT140,RT140,TT14#..SED198201-198310

SADDLE BROWN,BROWN

sub90467-09144

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-14131iCT140,TT14#..SED..(DLX,STD,TAX)198201-198206

main64701-14141iTT141..GL198201-198206

main64711-20170iCT140,RT140,TT14#..SED..(DLX,STD,TAX)198206-198612

main64711-20180iTT141..GL198206-198412

main64711-20400-03iCT141,YT140198612-199907

GRAY,GRAY

64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)

main90467-07158-01iCT140,RT140,TT14#..SED198201-199907

BLACK,BLACK

sub90467-07158

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64071-20010iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-199907

main64712-20150-03iCT141,YT140198612-199907

GRAY,GRAY

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-14080iST141..SED..GEN198201-199907

main64713-20150-03iCT141,YT140198612-199907

GRAY,GRAY

64713BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-20140iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-199907

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-14030iCT140,RT14#,ST141,TT14#..SED198201-199907

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20070iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198206-199907

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-01iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-199907

BLACK,BLACK

sub90467-07158

64770COVER ASSY, SPARE WHEEL

main64770-14010iCT14#,RT14#,ST141,TT14#..SED198201-199907

9046708046

main90467-08046

16 parts on this diagram · 1 diagram in section
