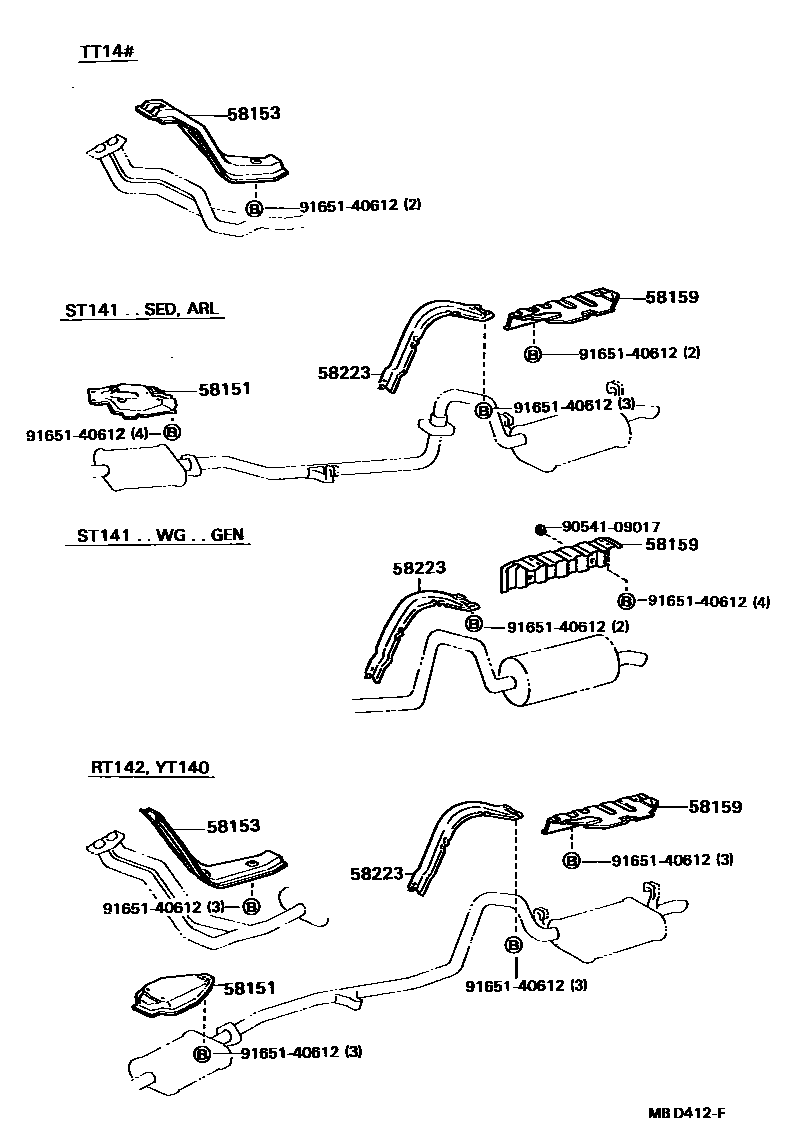

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-14070iRT142198408-198612

main58151-24020iST141..ARL198304-198612

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-14030iYT140198408-199907

main58153-14040iTT14#198201-198508

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-14020iYT140198304-199907

main58368-21020iST141..WG..GEN198508-199907

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-14030iRT142,ST141198304-198612

main58223-91255iST141..WG..GEN198508-199907

9054109017

main90541-09017

9165140612

main91651-40612

6 parts on this diagram · 1 diagram in section
