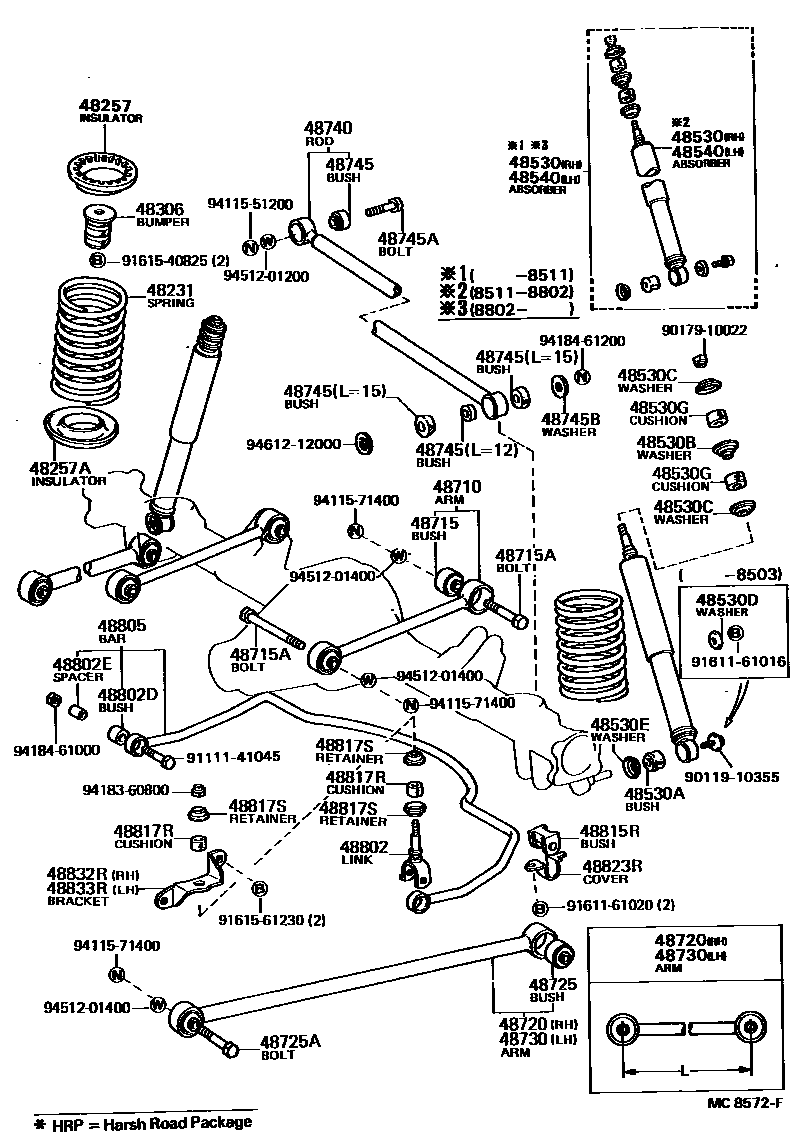

REAR SPRING & SHOCK ABSORBER

0001 1 0004 1 0005 1 0008 1

48231SPRING, COIL, REAR

main48231-14570iCT140..DLX198301-199907

main48231-14610iST141..SED..ARL198304-198612

main48231-15030iST141..WG198304-198508

main48231-20110iRT140,TT14#..SED198209-198301

main48231-20130iCT140..DLX198201-198209

main48231-20170iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

TAXI SPEC

main48231-20170iCT141,YT140198601-199907

main48231-20570iCT141,YT140..LHD198801-199907

HONGKONG SPEC

main48231-20570iCT141,YT140198612-199907

*HRP

main48231-24050iRT142..SED198508-198612

48257INSULATOR, REAR COIL SPRING

main48257-12020iST141..ARL198208-199907

main48257-14020iCT140,RT140,TT14#..SED198201-198208

main48257-22030iRT142..SED198508-198512

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14030iRT142..WG198201-199907

main48258-22041iRT142..SED198508-198612

RH

main48258-22050iRT142..SED198508-198612

LH

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030iCT141,YT140198201-199907

main48306-19055iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

main48341-22060iRT142..SED198508-198612

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19775iCT140,RT140,TT14#..SED198201-198508

main48531-20250iST141..SED..GEN198511-198802

main48531-21050iST141..WG..GEN198511-198802

main48531-29885iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-198511

main48531-80001iCT141,YT140198508-199907

main48531-80001iTT141..SED..LHD..(3FC,4F)..DLX198207-198508

PERU SPEC

main48531-80001iRT140..DLX198207-198312

OIL TWIN TUBE TYPE

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iCT14#,RT14#,ST141,TT14#,YT140198201-198708

main90385-16004iCT141,YT140198708-199907

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02050iCT140,RT14#,ST141,TT14#198201-199907

main90948-02075iRT142..SED198508-198612

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002iRT142..SED198201-199907

main90948-02002iTT14#..SED;CT140,RT14#,ST141..CS,CSI,CSX,CXI,DLX,S,TAX198201-199907

LWR

main90948-02045iTT14#..SED;CT140,RT14#,ST141..CS,CSI,CSX,CXI,DLX,S,TAX198201-199907

UPR

main90948-02045iRT142..WG198508-198612

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012iCT140,RT14#,ST141,TT14#198201-198503

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iCT14#,RT14#,ST141,TT14#,YT140198201-199907

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002iST141..SED;ST141..WG..ARL198201-199907

LWR

main90540-10005iST141..SED;ST141..WG..ARL198201-199907

UPR

main90948-01003iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

main90948-01003iRT142..SED198508-198512

UPR

main90948-01019iRT142..SED198508-198612

LWR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19775iTT141..SED..RHD;CT140,RT140,TT140198201-198412

main48531-20250iCT141,YT140198511-198802

main48531-21050iST141..WG..GEN198511-198802

main48531-29885iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-198511

main48531-80001iST141..SED..GEN198508-199907

main48531-80001iTT141..SED..LHD..(3FC,4F)..DLX198207-198310

PERU SPEC

main48531-80001iRT140..DLX198207-198312

OIL TWIN TUBE TYPE

48710ARM ASSY, UPPER CONTROL

main48710-14040iRT14#,ST141..CS,CSI,CSX,CXI,DLX,S198201-198612

main48710-14050iST141,TT141..SED..(GEN,ME)198201-199907

main48710-14060iCT140,TT140..SED..(DLX,STD)198201-198412

main48710-20050iCT141,YT140198601-199907

main48710-20050iCT140..RHD;CT140..TAX198301-198312

FR TAXI DISC BRAKE

main48710-20050iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE

48715BUSH, UPPER CONTROL ARM

main48702-14010iCT140,TT140..SED..(DLX,STD)198201-198412

main48702-14020iST141,TT141..SED..(GEN,ME)198201-199907

main48702-22060iRT14#,ST141..CS,CSI,CSX,CXI,DLX,S198201-198612

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14006iCT141,YT140198201-199907

L=77

main90105-14009iRT142..WG198201-199907

L=141

48720ARM ASSY, LOWER CONTROL, RH

main48720-14040iRT142..WG198304-198612

main48720-14040iST141..SED;ST141..WG..ARL198201-199907

FR DISC BRAKE,L=475

main48720-14050iCT140,RT140,TT140..STD198201-199907

L=470

main48720-20040iCT140..RHD;CT140..TAX198301-198312

FR TAXI DISC BRAKE,L=475

main48720-20040iCT141,YT140198601-199907

main48720-20040iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE,L=475

48725BUSH, LOWER CONTROL ARM

main48702-14020iRT142,ST141198304-198612

main48702-14020iST141..SED;ST141..WG..ARL198201-199907

FR DISC BRAKE,ARM L=475

main48702-14020iCT140,RT140,TT14#..SED..(DLX,GL,STD)198201-198508

ARM L=470

main48702-20010iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE,ARM L=475

main48702-20010iCT140..RHD;CT140..TAX198301-198312

FR TAXI DISC BRAKE

main48702-20010iCT141,YT140198601-199907

main48725-22030iRT142..SED198508-198612

OUTER

main48725-22040iRT142..SED198508-198612

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14006iRT142..WG198201-199907

48730ARM ASSY, LOWER CONTROL, LH

main48720-14040iRT142,ST141198304-198612

main48720-14040iST141..SED;ST141..WG..ARL198201-199907

FR DISC BRAKE,L=475

main48720-14050iST141..SED;ST141..WG..ARL198201-199907

L=470

main48720-20040iCT141,YT140198601-199907

main48720-20040iCT140..RHD;CT140..TAX198301-198312

FR TAXI DISC BRAKE,L=475

main48720-20040iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE,L=475

48740ROD ASSY, REAR LATERAL CONTROL

main48740-20010iST141..SED..GEN198508-199907

main48740-20030iST141..ARL198201-199907

48745BUSH, LATERAL CONTROL ROD

main48706-14010iTT14#..SED;CT140,RT14#,ST141..CS,CSI,CSX,CXI,DLX,S,TAX198201-199907

BODY SIDE

main90385-20001iST141;RT142..WG198201-199907

L=15,HOUSING SIDE

main90386-20001iST141..SED;ST141..WG..ARL198201-199907

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90106-12002iTT14#..SED;CT140,RT14#,ST141..CS,CSI,CSX,CXI,DLX,S,TAX198201-199907

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iTT14#..SED;CT140,RT14#,ST141..CS,CSI,CSX,CXI,DLX,S,TAX198201-199907

48802LINK SUB-ASSY, STABILIZER

main48802-14030iRT142..SED198508-198612

main48802-14040iST141..SED;ST141..WG..ARL198201-199907

48802DBUSH, STABILIZER LINK

main90385-11021iRT142,ST141..ARL198201-199907

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iCT140..LHD..DLX;TT14#..SED..(3FC,4F,5F)198201-199907

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14090iCT140..LHD..DLX198201-198312

main48805-14090iRT142..CXI198408-198508

W/POWER STEERING

main48805-14100iRT142,ST141198201-199907

main48805-14110iRT142..WG198508-198612

main48805-14170iRT142..SED198508-198612

48815RBUSH, STABILIZER(FOR REAR)

main48815-14030iRT142198508-198612

main48815-14050iRT142..CXI198408-198508

W/POWER STEERING

main48815-14050iCT140..LHD..DLX198201-198312

main48815-14060iRT142,ST141198201-199907

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010iCT140..LHD..DLX;TT14#..SED..(3FC,4F,5F)198201-199907

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iCT140..LHD..DLX;TT14#..SED..(3FC,4F,5F)198201-199907

T=1.2

main90948-02025iST141..SED..GEN198201-199907

T=1.0

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-14020iRT142..SED198508-198612

main48832-22020iRT142,ST141198201-199907

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-14030iRT142,ST141198201-199907

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-14020iRT142..WG198201-199907

9011910355

main90119-10355

9017910022

main90179-10022

9111141045

main91111-41045

9161161016

main91611-61016

9161161020

main91611-61020

9161540825

main91615-40825

9161561230

main91615-61230

9411551200

main94115-51200

9411571400

main94115-71400

9418360800

main94183-60800

9418461000

main94184-61000

9418461200

main94184-61200

9451201200

main94512-01200

9451201400

main94512-01400

9461212000

main94612-12000

48 parts on this diagram · 4 diagrams in section
