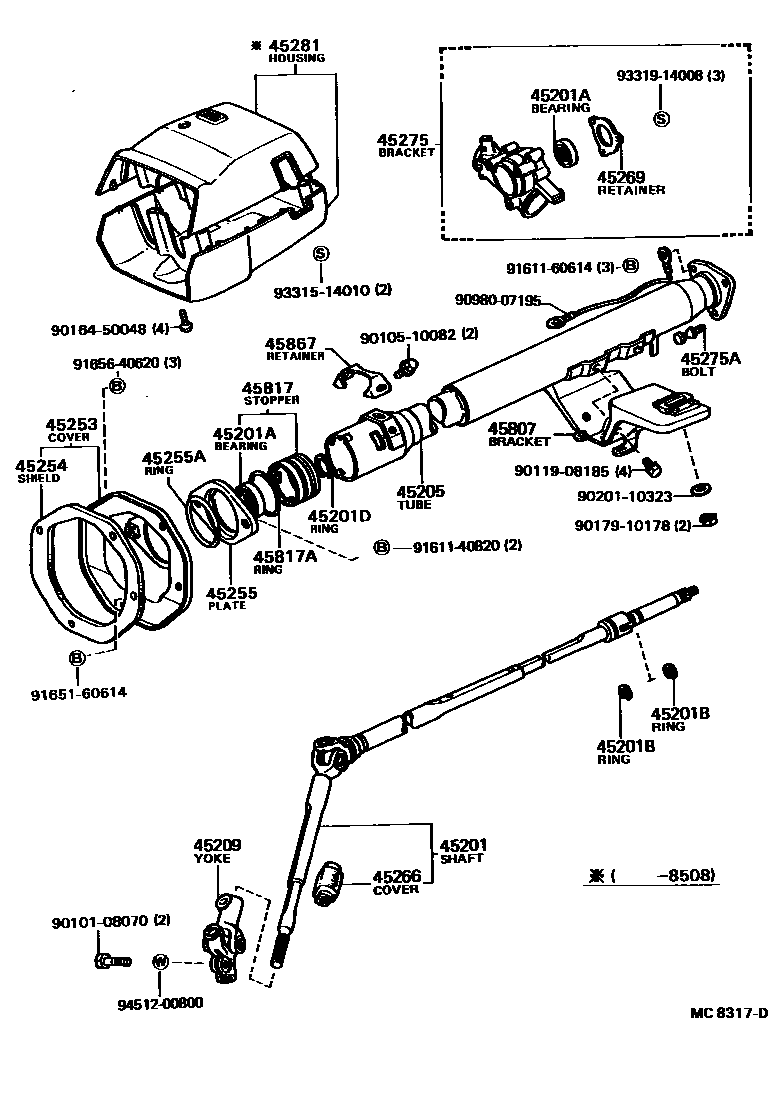

STEERING COLUMN & SHAFT

0001 1 0003 1(8304- )ST141,RT142; (86120009 1 0010 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-14020iTT14#..SED..RHD..(3FC,4F,5F)198201-198307

sub45210-14H00

main45210-14021iTT14#..SED..RHD..(3FC,4F,5F)198307-198412

main45210-14050iCT140,TT14#..SED..LHD..(3FC,4F,5F)..(DLX,GL,STD)198201-198307

sub45210-14H01

main45210-14051iCT140,ST141,TT14#..SED..LHD..(3FC,4F,5F)..(DLX,GL,STD)198307-198612

main45210-14080iCT140,RT140,TT14#..WG198201-198508

main45210-14130iRT142,ST141..CS,CSI,S198307-198612

main45210-20130iTT141..SED..RHD198212-198412

W/POWER STEERING

main45210-22050iTT140..RHD..4F..STD198305-198508

W/TILT STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iTT140..RHD..4F..STD198305-198508

UPR,W/TILT STEERING

main90363-18038iCT141,YT140..LHD198612-199907

UPR

main90363-28001iTT140..RHD..4F..STD198305-198508

CTR,W/TILT STEERING

main90363-30007iTT14#..SED..(3FC,4F,5F)198201-198501

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iCT14#,RT14#,ST141,TT14#,YT140198201-199907

T=1.20,T=1.2

main90520-17196×2iRT142,ST141..CS,CSI,S198304-198612

T=1.35-1.45,T=1.4

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iCT140..LHD..DLX198201-198508

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-14080iCT141,YT140..LHD198612-199310

W/TILT STEERING

main45870-14100iCT140,TT14#..SED..(3FC,4F,5F)198201-198508

main45870-14110iTT140..RHD..4F..STD198305-198412

W/TILT STEERING

main45870-14130iCT140,RT140,TT14#..WG198201-198508

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14010iCT140,TT14#..SED..LHD..(3FC,4F,5F)..(DLX,GL,STD)198201-198307

sub45209-14060

main45209-14020iST141..SED..3FC..CS198504-198612

W/POWER STEERING

main45209-14030iTT14#..SED..RHD..(3FC,4F,5F)198201-198307

main45209-32010iST141..SED..GEN198508-198612

sub45209-10020

45253COVER, STEERING COLUMN HOLE

main45025-14100iTT14#..SED..RHD..(3FC,4F,5F)198201-198412

main45025-14110iCT140,ST141,TT14#..SED..LHD..(3FC,4F,5F)..(DLX,GL,STD)198201-198612

main45025-14130iCT141,YT140..RHD198601-199907

main45025-14140iCT140,RT140,ST141,TT14#..WG..LHD198201-199907

main45025-20090iTT140..3H198201-198310

main45025-20100iTT140..4H198201-198310

45254SHIELD, STEERING COLUMN HOLE

main45254-20070iTT140..4H198201-198310

main45254-24011iCT14#,RT14#,ST141,TT14#,YT140..3FC,4F,4FC,5F198201-199907

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iTT140..3H,4H198201-198508

main45255-12030iTT14#..SED..(3FC,4F,5F)198201-198508

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iTT140..3H,4H198201-198508

main90301-59001iCT140..LHD..DLX198201-198508

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iTT14#..SED..(3FC,4F,5F)198201-198508

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iCT141,RT142,ST141,YT140..CS,CSI,DLX,S,STD198304-199907

main45269-20010iTT140..3H,4H198209-198310

sub45269-35010

45275BRACKET, STEERING COLUMN, UPPER

main45280-14010iCT140,RT140,TT14#..LHD..(3FC,4F,5F)198201-198209

main45280-14011iCT141,YT140..LHD198612-199907

main45280-14020iCT140,TT14#..SED..LHD..(DLX,GL)198201-198209

W/TILT STEERING

main45280-14021iCT140,TT14#..SED..LHD..(DLX,GL)198209-198508

W/TILT STEERING

main45280-14041iCT141,YT140198704-199907

W/TILT STEERING

main45280-24011iTT14#..SED..RHD..(DLX,GL)198201-198209

W/TILT STEERING

main45280-24012iST141..SED..3FC..CS198504-198612

W/POWER STEERING

main45280-24030iCT140,TT14#..RHD..(3FC,4F,5F)198201-198209

main45280-24031iCT141,RT142,ST141,YT140..RHD..(CS,CSI,S,STD)198304-199907

main45280-30310iTT140..3H198201-198310

sub45280-20560

main45280-30320iTT140..4H198201-198310

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iCT140,RT140,TT14#..3FC,4F,5F198201-198208

main45897-14010iCT140,TT14#..SED..LHD..(DLX,GL)198208-198508

W/TILT STEERING

main45897-30020iCT140..LHD..DLX198201-198208

W/TILT STEERING

45281HOUSING, STEERING COLUMN

main45286-14922-01iST141..SED..3FC..CS198504-198508

W/TILT STEERING,BLACK,BLACK

main45286-14922-06iRT142,ST141..CSX,CXI198304-198508

DARK BROWN,BROWN

main45286-14923-01iCT140,RT140,TT14#..LHD..(3FC,4F,5F)198201-198305

BLACK,BLACK

main45286-14923-06iCT140,RT140,TT14#..LHD..(3FC,4F,5F)198201-198305

DARK BROWN,BROWN

main45286-14924-01iCT140,TT14#..SED..LHD..(DLX,GL)198201-198305

W/TILT STEERING,BLACK,BLACK

main45286-14924-06iCT140,TT14#..SED..LHD..(DLX,GL)198201-198305

W/TILT STEERING,DARK BROWN,BROWN

main45286-14925-01iCT140,TT14#..SED..LHD..(DLX,GL)198305-198508

W/TILT STEERING,BLACK,BLACK

main45286-14925-06iCT140,TT14#..SED..LHD..(DLX,GL)198305-198508

W/TILT STEERING,DARK BROWN,BROWN

main45286-14926-01iCT140,RT140,TT14#..LHD..(3FC,4F,5F)198305-198508

BLACK,BLACK

main45286-14926-06iCT140,RT140,TT14#..LHD..(3FC,4F,5F)198305-198508

DARK BROWN,BROWN

main45286-20919-01iTT140..3H198201-198310

BLACK,BLACK

main45286-20919-06iTT140..3H198201-198310

DARK BROWN,BROWN

main45286-20920-01iTT140..4H198201-198310

BLACK,BLACK

main45286-20920-06iTT140..4H198201-198310

DARK BROWN,BROWN

main45286-20928-01iCT141,YT140..RHD198601-199907

BLACK,BLACK

main45286-24900-01iCT140,TT14#..RHD..(3FC,4F,5F)198201-198508

BLACK,BLACK

main45286-24900-06iRT142,ST141..CS,CSI,S198304-198508

DARK BROWN,BROWN

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45807-14100iCT140,RT140,ST141,TT14#,YT140..LHD..(3FC,4F,5F)198201-199907

main45807-20110iTT140..4H198201-198310

main45807-20120iTT140..3H198201-198310

main45807-24011iCT140..RHD198201-198312

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iCT140..LHD..DLX198202-198501

main45808-12030iRT142,ST141,TT141198501-198508

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iCT140..LHD..DLX198201-198508

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iTT14#..SED..(3FC,4F,5F)198202-198508

9010108070

main90101-08070

9010510082

main90105-10082

9011908185

main90119-08185

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9098007195

main90980-07195

9161140820

main91611-40820

9161160614

main91611-60614

9165160614

main91651-60614

9165640620

main91656-40620

9331514010

main93315-14010

9331914008

main93319-14008

9451200800

main94512-00800

33 parts on this diagram · 4 diagrams in section
