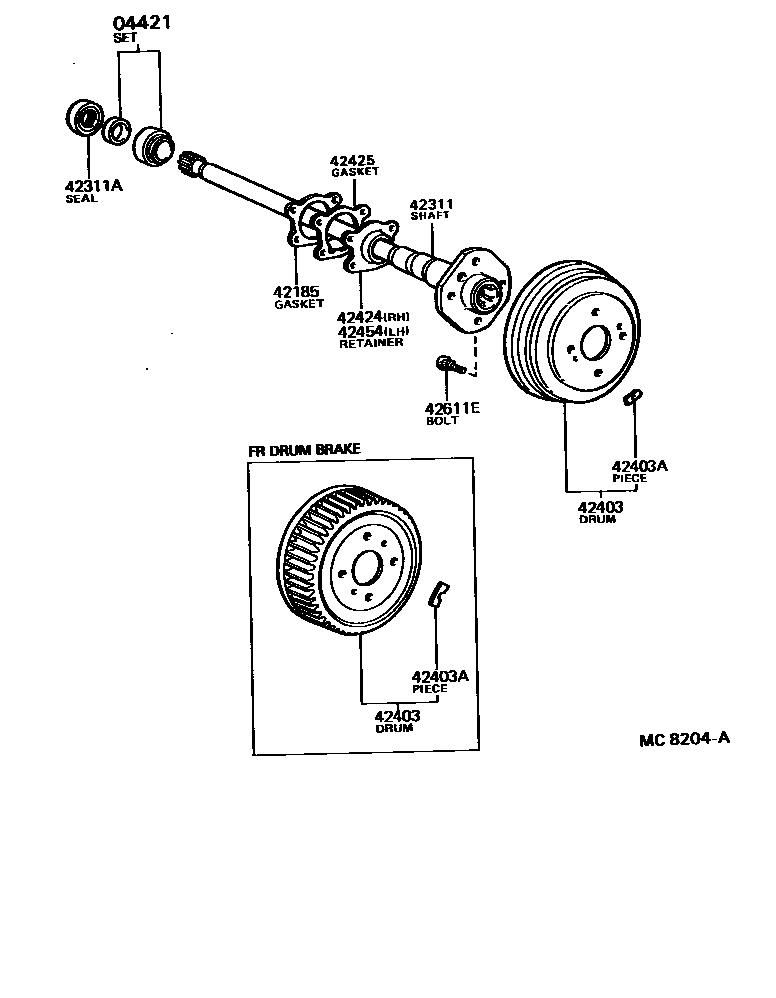

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30011×2iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

sub04421-30012

42185GASKET, REAR AXLE HOUSING END

main42185-14020×2iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

main42185-22030×2iRT142..SED198508-198612

42311SHAFT, REAR AXLE

main42301-22050×2iRT142..SED198508-198612

main42311-14140×2iCT140,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-198510

main42311-14141×2iCT141,ST141..SED..GEN198510-199907

main42311-22100×2iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

main42311-22110×2iYT140198612-199907

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009×2iRT142..SED198508-198612

main90311-52059×2iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060×2iCT140,RT140,TT14#..DLX,GL,STD198201-198508

FR DISC BRAKE

main42431-14061×2iST141..CS,DLX,S198510-199907

main42431-20060×2iCT140..RHD;CT140..TAX198301-198312

FR TAXI DISC BRAKE

sub42431-20031

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01045×4iCT141,YT140198601-199907

10G,10G

main90937-01046×4iCT141,YT140198601-199907

25G,25G

main90937-01047×4iCT141,YT140198601-199907

40G,40G

main90937-01117×2iRT142..WG198508-198510

10G,10G

main90937-01118×2iST141..CS,DLX,S;RT142..SED..CSI198304-198510

20G,20G

main90937-01119×2iST141..CS,DLX,S;RT142..SED..CSI198304-198510

30G,30G

main90937-01195×2iCT140,RT140,TT14#..DLX,GL,STD198201-198703

40G,40G,FR DISC BRAKE

main90937-01196×2iRT142..WG198508-198510

50G,50G

main90937-01197×2iRT142..WG198508-198510

60G,60G

main90937-01217×4iCT141,YT140198601-199907

55G,55G

main90937-01287×2iST141..CS,DLX,S198510-199907

10G,10G

main90937-01288×2iST141..CS,DLX,S198510-199907

20G,20G

main90937-01289×2iST141..CS,DLX,S198510-199907

30G,30G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iCT140,RT140,TT14#198201-198307

main90942-02047×8iRT142..SED198508-198612

10 parts on this diagram · 4 diagrams in section
