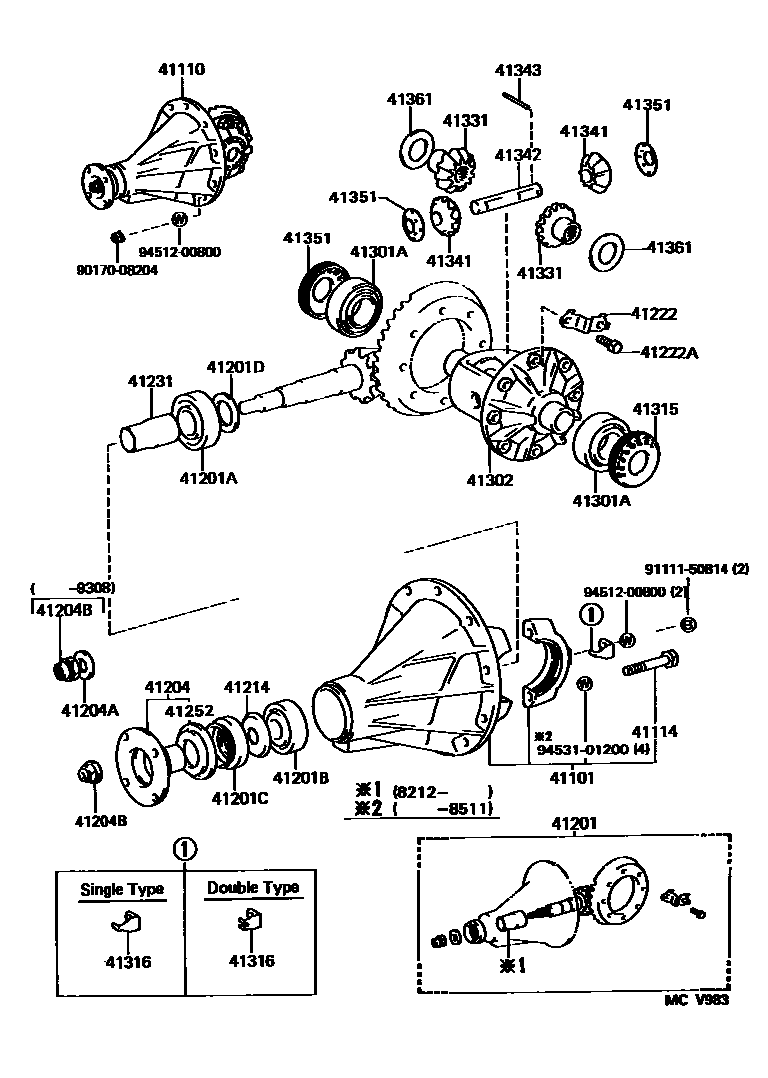

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1 0004 1 0005 1 0006 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-20020iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199710

sub41101-20021

sub41204-48020

main41101-20021iCT141199710-199907

main41101-22020iRT142..SED198508-198612

main41101-30010iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14180iRT142..4FC..CXI198508-198612

*FGR=41:11=3.727,*AXC=F302,*FGR=41:11

main41110-14280iRT142..SED..5F198508-198612

*AXC=F372,*FGR=43:12

main41110-20181iRT140..DLX198201-198510

*AXC=T292,*FGR=41:10

main41110-20182iST141..4FC..GEN198510-199907

*FGR=41:10=4.100,*AXC=T292,*FGR=41:10

main41110-20191iTT141..3FC..ME198201-198310

*AXC=T302,*FGR=41:11

main41110-20192iCT141198601-199907

*FGR=41:11=3.727

main41110-20201iCT140,ST141,TT14#..SED..MTM..(GEN,ME)198201-198510

*AXC=T312,*FGR=43:11

main41110-20202iST141..SED..5F..GEN198510-199907

*FGR=41:11=3.727,*AXC=T312,*FGR=43:11

main41110-20241iST141,TT141..WG..GEN198201-199907

*FGR=41:10=4.100

main41110-20251iCT140..STD198201-198807

*FGR=43:11=3.909

sub41110-22240

main41110-20261iTT140..SED..LHD..4F..STD..GEN198201-198310

*AXC=T282,*FGR=43:10

main41110-21020iRT140,TT140..WG198201-198310

*FGR=43:10=4.300

main41110-22240iYT140198807-199907

*FGR=43:11=3.909

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12371iCT140,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-198511

sub90105-12114

main90101-12376iYT140198201-199907

main90105-12053iRT142..SED198508-198612

main90105-12114iCT141,ST141..SED..GEN198511-199907

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29167iCT140..STD198201-198212

*FGR=43:11=3.909

sub41201-29168

main41201-29168iYT140198212-198807

*FGR=43:11=3.909

sub41201-29765

main41201-29196iTT140..SED..GEN198201-198212

*AXC=T292,R=41:10

sub41201-29197

main41201-29197iST141,TT141..ATM..GEN198212-199907

*FGR=41:10=4.100,*AXC=T292,R=41:10

main41201-29206iTT140..SED..LHD..4F..STD..GEN198201-198212

*AXC=T282,R=43:10

sub41201-29207

main41201-29207iTT140..SED..LHD..4F..STD..GEN198212-198310

*FGR=43:10=4.300,*AXC=T282,R=43:10

main41201-29216iRT140,TT140..WG198201-198212

sub41201-29217

main41201-29217iRT140,TT140..WG198212-198310

*FGR=43:10=4.300

main41201-29226iRT140..DLX198201-198212

*AXC=T302,R=41:11

sub41201-29227

main41201-29227iRT140..DLX198212-198310

*FGR=41:11,*AXC=T302,R=41:11

main41201-29227iCT141198601-199907

*FGR=41:11

main41201-29236iCT140,TT14#..SED..MTM198201-198212

*AXC=T312,R=43:11

sub41201-29237

main41201-29237iCT140,ST141,TT14#..SED..MTM..(GEN,ME)198212-199907

*FGR=43:11,*AXC=T312,R=43:11

main41201-29298iRT142..4FC..CXI198508-198612

*AXC=F302,R=41:11

sub41201-39635

main41201-29765iYT140198807-199907

*FGR=43:11=3.909

main41201-39218iTT141..WG198201-198212

*FGR=41:10=4.100

sub41201-39555

main41201-39467iRT142..SED..5F198508-198612

*AXC=F372,R=43:12

sub41201-39795

main41201-39555iST141,TT141..WG..GEN198212-199907

*FGR=41:10=4.100

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iRT142..SED198508-198612

main90366-35031iYT140198612-199108

sub90366-35064

main90366-35064iYT140199108-199907

main90368-34049iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

sub90366-34019

main97609-32307iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

main90366-30022iRT142..SED198508-199108

sub90366-30078

main90366-30055iYT140199108-199907

main90368-30002iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iRT142..SED198508-198612

main90311-38015iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

main90311-38133iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=2.36,MARK 05,T=2.36

main90201-35397iRT142..SED198201-199907

T=2.39,MARK 06,T=2.39

main90201-35398iRT142..SED198201-199907

T=2.42,MARK 07,T=2.42

main90201-35399iRT142..SED198201-199907

T=2.43,MARK 08,T=2.45

main90201-35400iRT142..SED198201-199907

T=2.48,MARK 09,T=2.48

main90201-35401iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=2.51,MARK 10,T=2.51

main90201-35402iRT142..SED198201-199907

T=2.54,MARK 11,T=2.54

main90201-35403iRT142..SED198201-199907

T=2.57,MARK 12,T=2.57

main90201-35404iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=2.60,MARK 13,T=2.60

main90201-35434iRT142..SED198201-199907

T=2.24,MARK 01,T=2.24

sub90201-35515

main90201-35434iYT140198612-199907

T=2.24,MARK 01

sub90201-35515

main90201-35435iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=2.27,MARK 02,T=2.27

sub90201-35516

main90201-35436iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=2.30,MARK 03,T=2.30

sub90201-35517

main90201-35437iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=2.33,MARK 04,T=2.33

sub90201-35518

main90201-35438iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=2.63,MARK 14,T=2.63

main90201-35439iRT142..SED198201-199907

T=2.66,MARK 15,T=2.66

main90201-35440iRT142..SED198201-199907

T=2.69,MARK 16,T=2.69

main90201-35441iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

T=2.72,MARK 17,T=2.72

main90201-35441iYT140198612-199907

T=2.72,MARK 17

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20020iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199710

main41204-20030iRT142..SED198201-199907

main41204-48020iCT141199710-199907

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iRT142..SED198201-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iRT142..SED198201-199308

main90179-18020iCT141,YT140199308-199907

OD=33.5

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-20020iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

main41214-30021iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iCT141,ST141,YT140..SED..GEN198511-199907

main41222-30030iCT140,RT140,ST141,TT14#..GEN,ME,PHL198201-198511

sub41222-28010

main41222-30040iRT142..SED198508-198612

sub41222-35030

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iRT142..SED198201-199907

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iRT142..SED198201-199907

main41231-22020iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-22010iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199710

main41252-30010iRT142..SED198201-199907

main41252-48020iCT141199710-199907

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-41050iCT141198809-199907

main90368-41050iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

KOYO

main90368-41053iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-198809

NSK

sub90368-41050

main90368-41056iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-198809

NACHI

sub90368-41050

main90368-45002iRT142..SED198508-198612

main90368-45011iYT140198707-199907

sub90368-45014

main90368-45066iYT140198201-198707

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41311-22030iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-198704

sub41311-22031

sub41351-12030

main41311-22031iCT141198704-199907

main41311-22050iRT142..SED198508-198612

sub41311-22060

sub90368-50006

main41311-30022iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-22011iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

main41315-30010iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-22011iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

SINGLE TYPE

main41316-30010iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

SINGLE TYPE

main41317-22011iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

DOUBLE TYPE

main41317-30010iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-22020iCT140,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-198510

main41331-22021iST141..SED..GEN198510-199907

main41331-22041iRT142..SED198508-198612

sub41331-14040

main41331-30021iYT140198201-199907

sub41331-22070

41341PINION, REAR DIFFERENTIAL

main41341-22020iCT141198201-199907

sub41341-12030

main41341-30011iYT140198201-199907

main41341-30020iRT142..SED198508-198612

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22010iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

main41342-22020iRT142..SED198508-198612

sub41342-22021

main41342-30011iYT140198805-199907

main41342-39015iYT140198201-198805

sub41342-30011

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-04193iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

main90250-06058iRT142..SED198201-199907

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-12030iCT141198704-199907

main41351-30032iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

main41351-30060iRT142..SED198508-198612

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=1.00,MARK 02,T=1.0

main41361-22030iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=1.10,MARK 03,T=1.1

main41361-22040iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=1.20,MARK 04,T=1.2

main41361-22140iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=0.95,MARK 14,T=0.95

main41361-22150iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=1.05,MARK 15,T=1.05

main41361-22160iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

T=1.15,MARK 16,T=1.15

main41361-30040iRT142..SED198508-198612

T=1.0,T=0.96-1.04

main41361-30050iRT142..SED198508-198612

T=1.1,T=1.06-1.14

main41361-30060iRT142..SED198508-198612

T=1.2,T=1.16-1.24

main41361-30070iRT142..SED198508-198612

T=1.3,T=1.26-1.34

9017008204

main90170-08204

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

30 parts on this diagram · 5 diagrams in section
