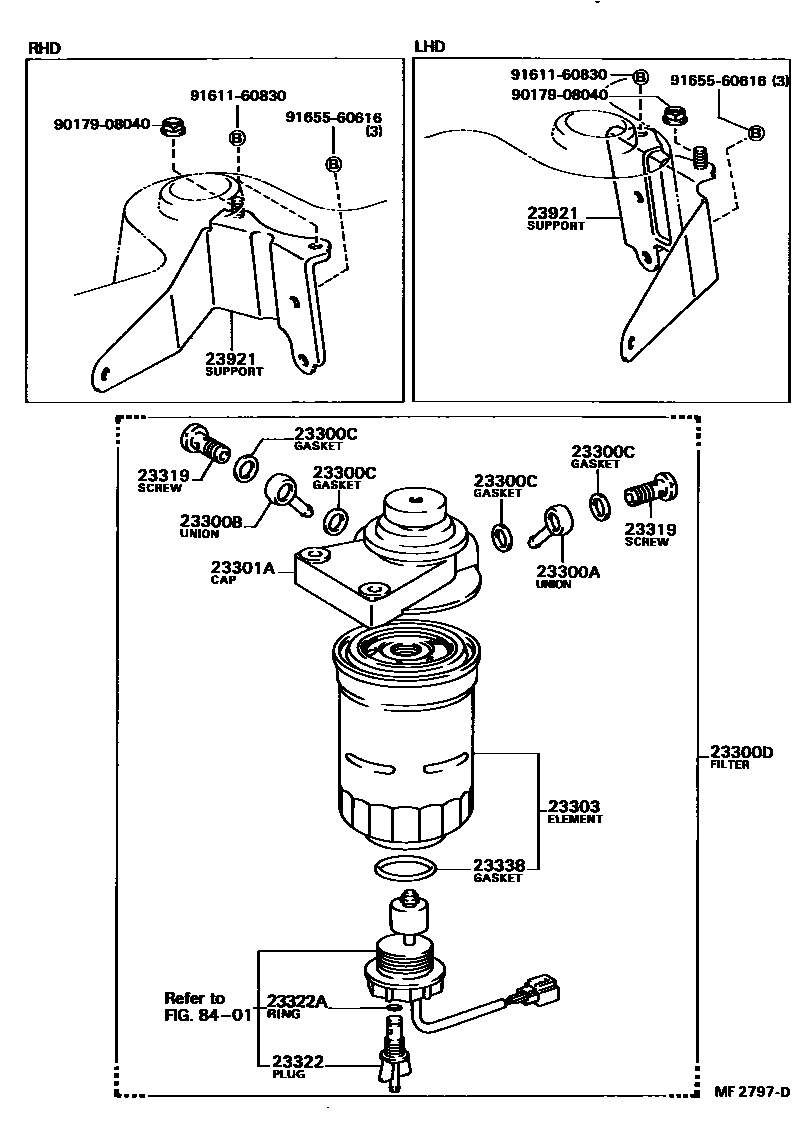

FUEL FILTER

0001 1 0003 1 0004 1 0005 1 MF2693B,MF2883B 0007 1

23300FILTER ASSY, FUEL

main23300-25020i2SC..ST141198304-198612

main23300-26060i2S..ST141198508-198612

main23300-34100i2T,3T..TT14#198201-198508

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016i1C..CT140198209-198312

main90405-08160i1C..CT140198201-198209

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016i1C..CT140198209-198312

main90405-08160i1C..CT140198201-198209

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030×4i1C..CT140198201-198312

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-64020i1C..CT140198201-198312

sub23300-64021

23301ACAP ASSY, FUEL FILTER

main23301-64010i1C..CT140198201-198312

main23301-64050i2C..CT141..5F198606-199907

main23301-64190i2C..CT141..4F198612-199907

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2C..CT141198601-199907

23319SCREW, FUEL PIPE FOLLOW

main90099-18011×2i2C..CT141198601-198606

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2C..CT141198601-199907

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1C..CT140198201-198312

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1C..CT140198201-198312

23921SUPPORT, FUEL FILTER

main23921-64020i1C..CT140..RHD198201-198312

main23921-64030i2C..CT141..4F198612-199907

main90461-10320i2T,3T..TT14#198201-198212

main90461-12003i2S#..ST141198212-199907

8401

9017908040

main90179-08040

9161160830

main91611-60830

9165560616

main91655-60616

16 parts on this diagram · 5 diagrams in section
