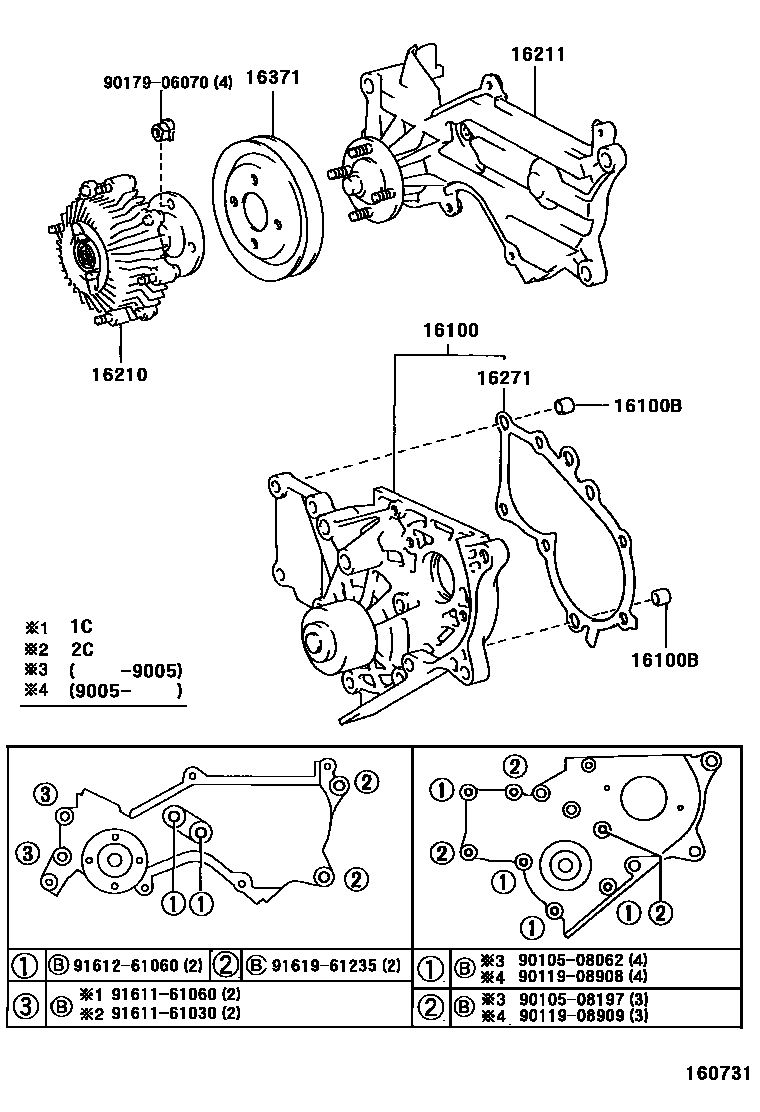

WATER PUMP

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

16100PUMP ASSY, ENGINE WATER

main16100-28020i2T,3T..TT14#198201-198508

main16100-39116i12RM..RT140198206-198312

main16100-39345i22REC..RT142198408-198612

sub16100-39346

main16100-69075i2S#..ST141198304-198612

sub90179-06045

sub16100-69076

main16100-69085i2C..CT141198601-198912

main16100-69275i2C..CT141198912-199005

sub16100-64H00

sub16100-64H01

main16100-69295i2C..CT141199005-199704

main16100-69296i2C..CT141199704-199811

sub16100-69425

main16100-69298i2C..CT141199811-199907

sub16100-69435

main16100-79035i2Y..YT140198612-198704

main16100-79036i2Y..YT140198704-199611

main16100-79037i2Y..YT140199611-199907

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i1C..CT140198201-198312

16210COUPLING ASSY, FLUID

main16210-28020i2T,3T..TT14#198201-198508

main16210-38050i22REC..RT142..5F198408-198612

main16210-38060i22REC..RT142..4FC198408-198612

main16210-63010i2S..ST141198508-198612

main16210-64010i2C..CT141198601-199907

main16210-72010i2Y..YT140198612-199907

main16210-74010i2SC..ST141198304-198612

16211BRACKET, FLUID COUPLING

main16211-63010i2S..ST141198508-198612

main16211-74010i2SC..ST141198304-198612

main16307-64010i1C..CT140198201-198312

sub16307-64011

sub91611-61030

main16307-64012i2C..CT141198601-199907

16271GASKET, WATER PUMP

main16129-25012i2T,3T..TT14#198201-198508

sub16129-25013

main16271-31010i12RM..RT140198206-198312

main16271-64010i1C..CT140198201-198312

main16271-64020i2C..CT141198912-199005

main16271-64030i2C..CT141199005-199811

main16271-64031i2C..CT141199811-199907

16371PULLEY, FAN

main16173-28010i2T,3T..TT14#198201-198508

main16173-35020i22REC..RT142198408-198612

main16173-63010i2S..ST141198508-198612

main16173-74010i2SC..ST141198304-198612

WATER PUMP SIDE

main16173-74011i2SC..ST141198304-198612

COUPLING SIDE

main16371-31022i12RM..RT140198206-198312

main16371-64011i1C..CT140198201-198312

main16371-71010i2Y..YT140198612-199907

sub16371-71021

9010508062

main90105-08062

9010508197

main90105-08197

9011908908

main90119-08908

9011908909

main90119-08909

9017906070

main90179-06070

9161161030

main91611-61030

9161161060

main91611-61060

9161261060

main91612-61060

9161961235

main91619-61235

15 parts on this diagram · 7 diagrams in section
