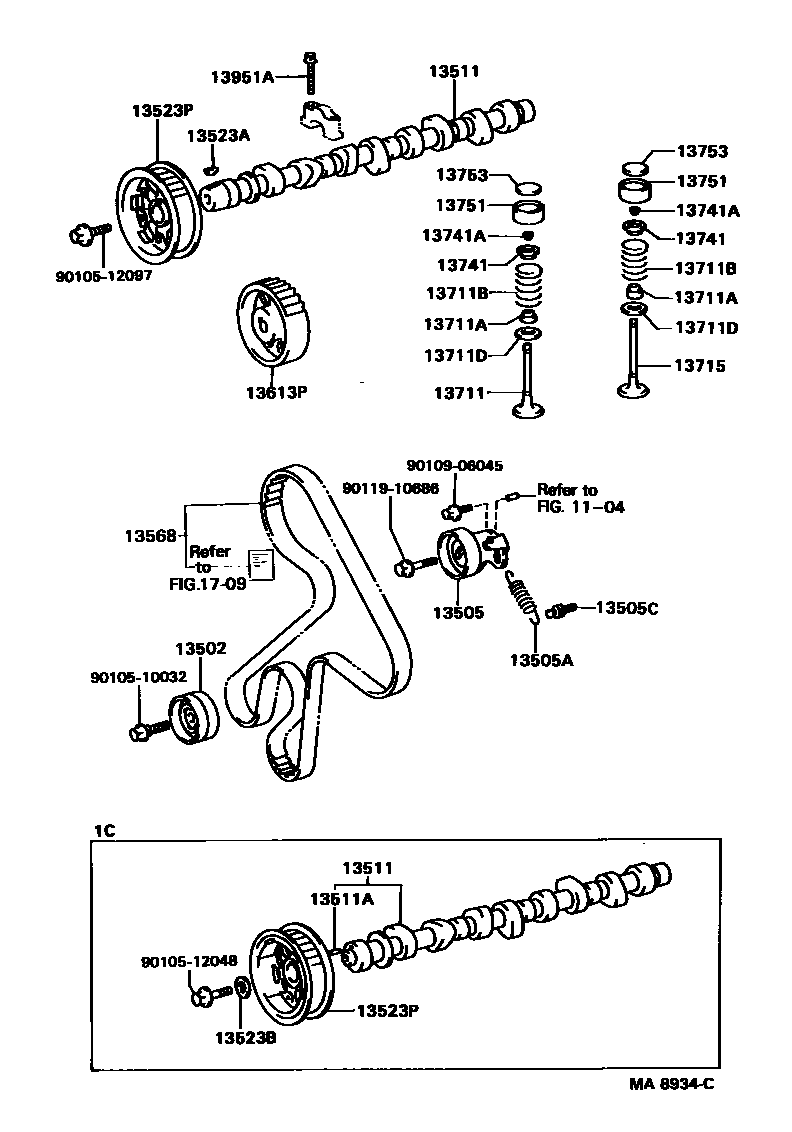

CAMSHAFT & VALVE
1104
13505ASPRING, TENSION(FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
L=14,OD=6,L=14,OD=6
13523GEAR OR SPROCKET, CAMSHAFT TIMING
N=50
N=36
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13613PPULLEY, INJECTION PUMP DRIVE
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
EXHAUST
INTAKE
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.20,T=2.200
T=2.25,T=2.250
T=2.30,T=2.300
T=2.35,T=2.350
T=2.40,T=2.400
T=2.45,T=2.450
T=2.50,T=2.500
T=2.55,T=2.550
T=2.60,T=2.600
T=2.65,T=2.650
T=2.70,T=2.700
T=2.75,T=2.750
T=2.80,T=2.800
T=2.85,T=2.850
T=2.90,T=2.900
T=2.95,T=2.950
T=3.00,T=3.000
T=3.05,T=3.050
T=3.10,T=3.100
T=3.15,T=3.150
T=3.20,T=3.200
T=3.25,T=3.250
T=3.30,T=3.300
T=3.35,T=3.350
T=3.40,T=3.400
1709
9010510032
main90105-10032
9010512048
main90105-12048
9010512097
main90105-12097
9010906045
main90109-06045
9011910686
main90119-10686
30 parts on this diagram · 6 diagrams in section
