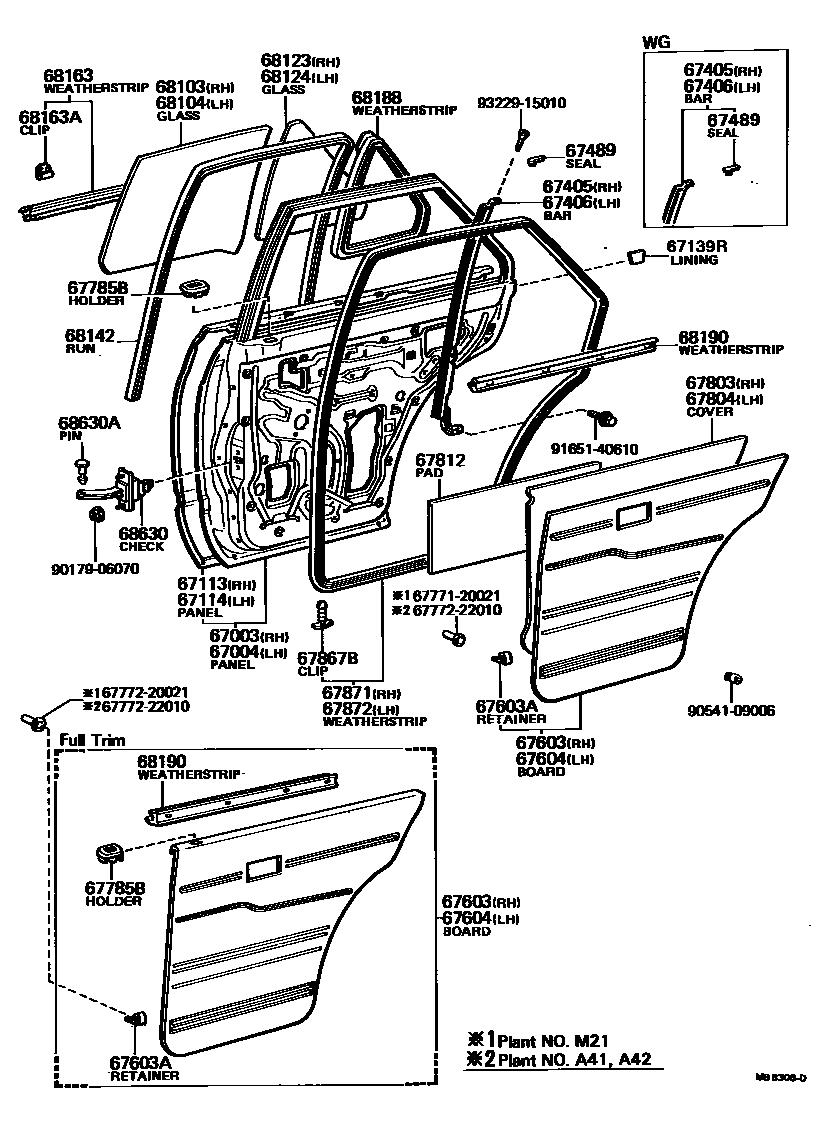

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-20120iRT130,132,TT13#..SED197809-198205

sub67003-20130

main67003-20130iXT130..LNK197908-198301

main67003-20160iRT132,TT132..LB..(EUR,GEN)197809-198112

main67003-20170iRT132..ARL197908-198008

main67003-20190iTT132..LB..LHD..4F..GEN198012-198112

SAUDI ARABIA SPEC

sub67003-20170

main67003-20190iRT132,133..GL198008-198301

sub67003-20170

main67003-91259iRT130,132,TT13#..WG197809-198205

sub67003-91263

main67003-91260iTT132..LHD..4F..DLX..LEF198012-198112

SAUDI ARABIA SPEC

sub67003-91263

main67003-91260iXT130..LEF197908-198111

sub67003-91263

main67003-91263iXT130..LEF198111-198301

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-20120iRT130,132,TT13#..SED197809-198205

sub67004-20130

main67004-20130iXT130..LNK197908-198301

main67004-20160iRT132,TT132..LB..(EUR,GEN)197809-198112

main67004-20170iRT132..ARL197908-198008

main67004-20190iTT132..LB..LHD..4F..GEN198012-198112

SAUDI ARABIA SPEC

sub67004-20170

main67004-20190iRT132,133..GL198008-198301

sub67004-20170

main67004-91259iRT130,132,TT13#..WG197809-198205

sub67004-91263

main67004-91260iTT132..LHD..4F..DLX..LEF198012-198112

SAUDI ARABIA SPEC

sub67004-91263

main67004-91260iXT130..LEF197908-198111

sub67004-91263

main67004-91263iXT130..LEF198111-198301

67113PANEL, REAR DOOR, OUTER RH

main67113-20060iRT13#,TT13#,XT130..LB,SED,WG197809-198301

sub67113-20070

main67113-20070iRT13#..LHD;TT132..SED..RHD;TT133,XT130..SED;TT132..RHD..4F..DLX..LEF;TT132..SED..LHD..(3FC,4F)198106-198301

GALVANIZED IRON SHEET

67114PANEL, REAR DOOR, OUTER LH

main67114-20060iRT13#,TT13#,XT130..LB,SED,WG197809-198301

sub67114-20070

main67114-20070iRT13#..LHD;TT132..SED..RHD;TT133,XT130..SED;TT132..RHD..4F..DLX..LEF;TT132..SED..LHD..(3FC,4F)198106-198301

GALVANIZED IRON SHEET

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-20070iRT13#,TT13#,XT130..SED197809-198301

main67407-20080iRT132,133,TT132..LB197809-198301

main67407-91255iRT130,132,TT13#,XT130..WG197809-198301

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-20060iRT13#,TT13#,XT130..SED197809-198301

main67408-20070iRT132,133,TT132..LB197809-198301

main67408-91255iRT130,132,TT13#,XT130..WG197809-198301

67489SEAL, REAR DOOR DIVISION BAR

main67481-20010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

RH

main67482-20010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

LH

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-20370-01iRT13#,TT13#..STD197809-198008

BLACK,BLACK,TRIM2#

main67630-20370-02iRT13#,TT13#..SED..STD197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-20370-05iRT13#,TT13#..STD197809-198008

BEIGE,BEIGE,TRIM4#

main67630-20371-01iRT130,132,TT13#..STD198008-198205

BLACK,BLACK,TRIM2#

main67630-20371-02iRT132,TT13#..SED..STD198008-198205

DARK WINE,RED/MAROON,TRIM3#

main67630-20371-06iRT130,132,TT13#..STD198008-198205

LIGHT BROWN,BROWN,TRIM4#

main67630-20390-01iXT130197809-198008

BLACK,BLACK,TRIM2#

main67630-20390-02iXT130..LNK197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-20390-05iRT13#,TT13#..(LB,SED,WG)..DLX..GEN197809-198008

BEIGE,BEIGE,TRIM4#

main67630-20391-01iXT130;RT130,133..LHD..LNK;TT13#..(LB,SED,WG)..DLX..GEN198008-198301

BLACK,BLACK,TRIM2#

main67630-20391-02iRT130,133..LHD..LNK;XT130..(3FC,4F)..LNK;TT13#..(LB,SED)..DLX..GEN198008-198301

DARK WINE,RED/MAROON,TRIM3#

main67630-20391-06iXT130;RT130,133..LHD..LNK;TT13#..(LB,SED,WG)..DLX..GEN198008-198301

LIGHT BROWN,BROWN,TRIM4#

main67630-20410-01iTT132..DLX..EUR197809-198008

BLACK,BLACK,TRIM2#

main67630-20410-02iTT132..DLX..EUR197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-20410-05iTT132..DLX..EUR197809-198008

BEIGE,BEIGE,TRIM4#

main67630-20411-01iTT132..DLX..EUR198008-198108

BLACK,BLACK,TRIM2#

main67630-20411-02iTT132..DLX..EUR198008-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-20411-06iTT132..DLX..EUR198008-198108

LIGHT BROWN,BROWN,TRIM4#

main67630-20420-01iRT132,TT132..GL197809-198008

BLACK,BLACK,TRIM2#

main67630-20420-01iXT130..LNK197908-198008

FB-C SEAT,BLACK,BLACK,TRIM2#

main67630-20420-02iRT132,TT132..GL197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-20420-02iXT130..LNK197908-198008

FB-C SEAT,DARK WINE,RED/MAROON,TRIM3#

main67630-20420-05iRT132,TT132..GL197809-198008

BEIGE,BEIGE,TRIM4#

main67630-20420-05iXT130..LNK197908-198008

FB-C SEAT,BEIGE,BEIGE,TRIM4#

main67630-20520-01iRT130,XT130198111-198301

FB-C,BLACK,BLACK,TRIM2#

main67630-20520-01iRT132,133,TT132..GL198008-198301

BLACK,BLACK,TRIM2#

main67630-20520-02iRT132,133,TT132..GL198008-198301

DARK WINE,RED/MAROON,TRIM3#

main67630-20520-02iRT130,XT130..LNK198111-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main67630-20520-06iRT130,XT130198111-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main67630-20520-06iRT132,133,TT132..GL198008-198301

LIGHT BROWN,BROWN,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-20022iRT13#,TT13#,XT130..LB,SED,WG197809-198301

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-20370-01iRT13#,TT13#..STD197809-198008

BLACK,BLACK,TRIM2#

main67640-20370-02iRT13#,TT13#..SED..STD197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-20370-05iRT13#,TT13#..STD197809-198008

BEIGE,BEIGE,TRIM4#

main67640-20371-01iRT130,132,TT13#..STD198008-198205

BLACK,BLACK,TRIM2#

main67640-20371-02iRT132,TT13#..SED..STD198008-198205

DARK WINE,RED/MAROON,TRIM3#

main67640-20371-06iRT130,132,TT13#..STD198008-198205

LIGHT BROWN,BROWN,TRIM4#

main67640-20390-01iRT13#,TT13#..(LB,SED,WG)..DLX..GEN197809-198008

BLACK,BLACK,TRIM2#

main67640-20390-02iXT130..LNK197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-20390-05iXT130197809-198008

BEIGE,BEIGE,TRIM4#

main67640-20391-01iXT130;RT130,133..LHD..LNK;TT13#..(LB,SED,WG)..DLX..GEN198008-198301

BLACK,BLACK,TRIM2#

main67640-20391-02iRT130,133..LHD..LNK;XT130..(3FC,4F)..LNK;TT13#..(LB,SED)..DLX..GEN198008-198301

DARK WINE,RED/MAROON,TRIM3#

main67640-20391-06iXT130;RT130,133..LHD..LNK;TT13#..(LB,SED,WG)..DLX..GEN198008-198301

LIGHT BROWN,BROWN,TRIM4#

main67640-20410-01iTT132..DLX..EUR197809-198008

BLACK,BLACK,TRIM2#

main67640-20410-02iTT132..DLX..EUR197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-20410-05iTT132..DLX..EUR197809-198008

BEIGE,BEIGE,TRIM4#

main67640-20411-01iTT132..DLX..EUR198008-198108

BLACK,BLACK,TRIM2#

main67640-20411-02iTT132..DLX..EUR198008-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-20411-06iTT132..DLX..EUR198008-198108

LIGHT BROWN,BROWN,TRIM4#

main67640-20420-01iRT132,TT132..GL197809-198008

BLACK,BLACK,TRIM2#

main67640-20420-01iXT130..LNK197908-198008

FB-C SEAT,BLACK,BLACK,TRIM2#

main67640-20420-02iXT130..LNK197908-198008

FB-C SEAT,DARK WINE,RED/MAROON,TRIM3#

main67640-20420-02iRT132,TT132..GL197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-20420-05iRT132,TT132..GL197809-198008

BEIGE,BEIGE,TRIM4#

main67640-20420-05iXT130..LNK197908-198008

FB-C SEAT,BEIGE,BEIGE,TRIM4#

main67640-20520-01iRT130,XT130198111-198301

FB-C,BLACK,BLACK,TRIM2#

main67640-20520-01iRT132,133,TT132..GL198008-198301

BLACK,BLACK,TRIM2#

main67640-20520-02iRT132,133,TT132..GL198008-198301

DARK WINE,RED/MAROON,TRIM3#

main67640-20520-02iRT130,XT130..LNK198111-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main67640-20520-06iRT132,133,TT132..GL198008-198301

LIGHT BROWN,BROWN,TRIM4#

main67640-20520-06iRT130,XT130198111-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main69751-20030iRT13#,TT13#..STD197809-198101

sub69751-20031

main69751-20031iRT130,132,TT13#..STD198101-198205

main69751-20040iRT133,XT130;RT130,132,TT13#..(LB,SED,WG)..(DLX,GL)197809-198301

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-20110iRT132,XT130..ARL197908-198008

main67841-20120iRT13#,TT13#..(LB,SED,WG)..(EUR,GEN,PHL)197809-198301

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-20110iRT132,XT130..ARL197908-198008

main67841-20120iRT13#,TT13#..(LB,SED,WG)..(EUR,GEN,PHL)197809-198301

67812PAD, REAR DOOR SILENCER

main67812-20050iRT130,132,TT13#..(LB,SED,WG)..(EUR,GEN,PHL)197809-198205

sub67812-12010

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iRT13#,TT13#,XT130..LB,SED,WG197809-198301

67871WEATHERSTRIP, REAR DOOR, RH

main67871-20090iRT13#,TT13#,XT130..SED197809-198301

main67871-20110iRT132,133,TT132..LB197809-198301

main67871-91259iRT130,132,TT13#,XT130..WG197809-198301

67872WEATHERSTRIP, REAR DOOR, LH

main67872-20090iRT13#,TT13#,XT130..SED197809-198301

main67872-20110iRT132,133,TT132..LB197809-198301

main67872-91259iRT130,132,TT13#,XT130..WG197809-198301

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-20160iRT132,133,TT13#,XT130..SED..STD197809-198301

*TEM,T=4.0

sub68113-20200

main68113-20170iRT13#,TT13#,XT130..SED197809-198301

*TT,T=4.0

sub68113-20200

main68113-20180iRT132,TT132..LB197809-198112

*TT,T=4.0

sub68113-20210

main68113-20190iTT13#..SED..STD198008-198112

*TEM,T=3.5

sub68113-20200

main68113-20200iTT13#..SED198008-198112

*TT,T=3.5

main68113-20210iRT132,133,TT132..LB198008-198301

*TT,T=3.5

main68113-91259iRT13#,TT13#,XT130..WG..STD197809-198301

*TEM,T=4.0

sub68113-91261

main68113-91260iRT130,132,TT13#,XT130..WG197809-198301

*TT,T=4.0

sub68113-91262

main68113-91261iRT130,TT13#..WG..STD198008-198112

*TEM,T=3.5

main68113-91262iRT130,TT13#..WG198008-198112

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-20080iRT13#,TT13#,XT130..SED..STD197809-198301

*TEM,T=4.0

sub68114-20110

main68114-20090iRT13#,TT13#,XT130..SED197809-198301

*TT,T=4.0

sub68114-20120

main68114-20100iTT132..LB..GEN197809-198112

*TT,T=4.0

sub68114-20130

main68114-20110iTT13#..SED..STD198008-198112

*TEM,T=3.5

sub68114-20120

main68114-20120iRT130..LNK198008-198112

*TT,T=3.5

main68114-20130iRT132,133,TT132..LB198008-198301

*TT,T=3.5

main68114-91257iRT132,TT13#,XT130..WG..STD197809-198301

*TEM,T=4.0

sub68114-91259

main68114-91258iRT132,TT13#,XT130..WG197809-198301

*TT,T=4.0

sub68114-91260

main68114-91259iRT130,TT13#..WG..STD198008-198112

*TEM,T=3.5

sub68114-91260

main68114-91260iRT130,TT13#..WG198008-198112

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-20210iRT13#,TT13#,XT130..SED..STD197809-198301

*TEM,T=4.0

sub68123-20240

main68123-20220iRT13#,TT13#,XT130..SED197809-198301

*TT,T=4.0

sub68123-20250

main68123-20230iRT132,TT132..LB197809-198112

*TT,T=4.0

sub68123-20260

main68123-20240iTT13#..SED..STD198008-198112

*TEM,T=3.5

sub68123-20250

main68123-20250iTT13#..SED198008-198112

*TT,T=3.5

main68123-20260iRT132,133,TT132..LB198008-198301

*TT,T=3.5

main68123-91259iRT13#,TT13#,XT130..WG..STD197809-198301

*TEM,T=4.0

sub68123-91262

main68123-91260iRT132,TT13#,XT130..WG197809-198301

*TT,T=4.0

sub68123-91261

main68123-91261iRT130,TT13#..WG198008-198112

*TT,T=3.5

main68123-91262iRT130,TT13#..WG..STD198008-198112

*TEM,T=3.5

sub68123-91261

68124GLASS, REAR DOOR WINDOW, LH

main68124-20130iRT13#,TT13#,XT130..SED..STD197809-198301

*TEM,T=4.0

sub68124-20160

main68124-20140iRT13#,TT13#,XT130..SED197809-198301

*TT,T=4.0

sub68124-20170

main68124-20150iRT132,TT132..LB197809-198112

*TT,T=4.0

sub68124-20180

main68124-20160iTT13#..SED..STD198008-198112

*TEM,T=3.5

sub68124-20170

main68124-20170iTT13#..SED198008-198112

*TT,T=3.5

main68124-20180iRT132,133,TT132..LB198008-198301

*TT,T=3.5

main68124-91257iRT132,TT13#,XT130..WG..STD197809-198301

*TEM,T=4.0

sub68124-91260

main68124-91258iRT13#,TT13#..WG..GEN197809-198301

*TT,T=4.0

sub68124-91259

main68124-91259iRT130,TT13#..WG198008-198112

*TT,T=3.5

main68124-91260iRT130,TT13#..WG..STD198008-198112

*TEM,T=3.5

68142RUN, REAR DOOR GLASS

main68142-20040iRT130,132,TT13#,XT130..SED197809-198301

main68142-20050iRT132,133,TT132..LB197809-198301

main68142-91257iRT130,132,TT13#,XT130..WG197809-198301

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-20070iRT130,132,TT13#..STD197809-198205

RH

main68230-20050iRT130,132,TT13#..STD197809-198205

LH

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030iRT130,132,TT13#..STD197809-198205

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-20050iRT13#,TT13#,XT130..SED197809-198301

RH

main68188-20060iRT132,133,TT132..LB197809-198301

RH

main68188-91258iRT130,132,TT13#,XT130..WG197809-198301

RH

main68189-20050iRT13#,TT13#,XT130..SED197809-198301

LH

main68189-20060iRT132,133,TT132..LB197809-198301

LH

main68189-91256iRT130,132,TT13#,XT130..WG197809-198301

LH

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-20110iRT13#,TT132..STD197809-198205

main68190-20120iRT13#,TT13#,XT130..LB,SED,WG197809-198301

68630CHECK ASSY, REAR DOOR

main68630-20020iRT13#,TT13#,XT130..LB,SED,WG197809-198101

sub68630-20021

main68630-20021iRT13#,TT133,XT130;TT132..LB..LHD..5F;TT132..LHD..(3FC,4F);TT132..(LB,SED,WG)..RHD198101-198301

68630APIN(FOR REAR DOOR CHECK)

main68617-22010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

sub68617-12010

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9017906070

main90179-06070

9054109006

main90541-09006

9165140610

main91651-40610

9322915010

main93229-15010

36 parts on this diagram · 1 diagram in section
