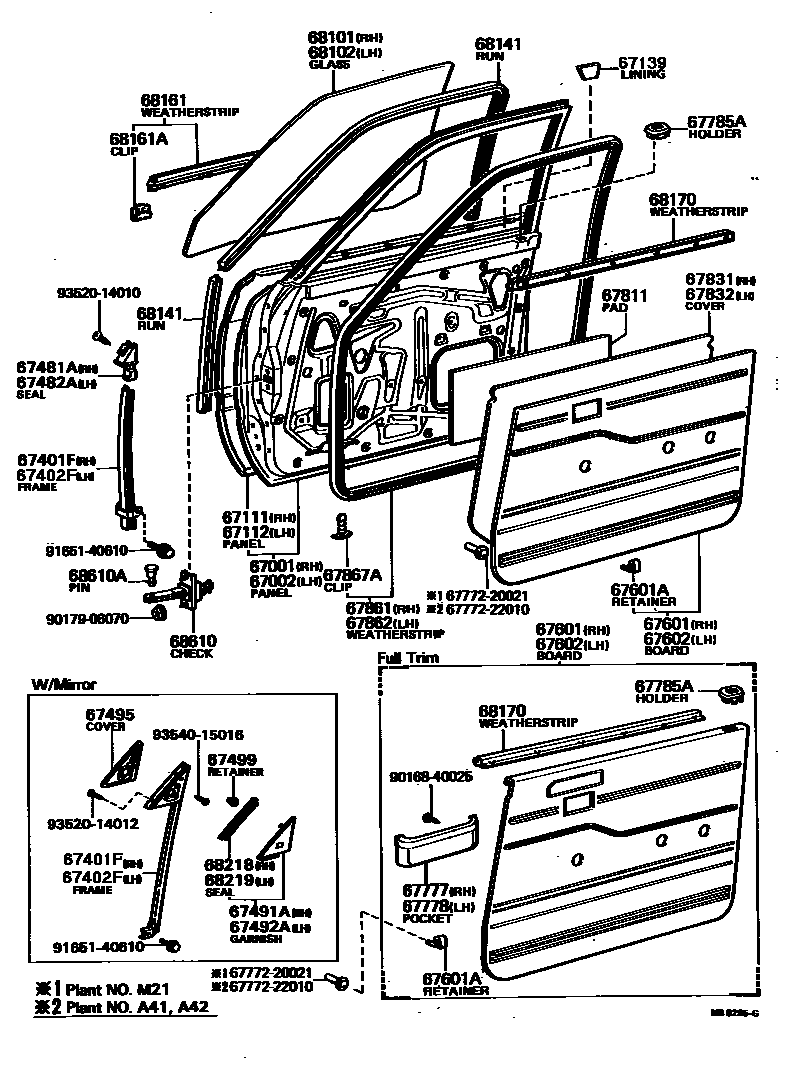

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20170iRT13#,TT13#..SED,WG197809-198008

sub67001-20171

main67001-20171iRT130,132,TT13#..SED,WG198008-198205

sub67001-20191

main67001-20191iTT13#..SED..LHD..(3FC,4F)..LNK198012-198112

*SAA

main67001-20191iRT133,XT130..STD198111-198301

main67001-20220iRT132,TT132..WG..LHD197809-198008

W/DOOR MIRROR

main67001-20220iTT132..SED..LHD..4F..GEN198006-198008

W/DOOR MIRROR,*SAA

main67001-20230iTT132..LB..LHD..EUR;RT132,TT132..LB..GEN197809-198008

sub67001-20231

main67001-20231iTT132..LB198008-198112

sub67001-20241

main67001-20260iTT132..LB..LHD..4F..GEN198006-198008

W/DOOR MIRROR,*SAA

main67001-20260iTT132..LB..EUR197809-198008

W/DOOR MIRROR

main67001-20270iXT130197908-198008

main67001-20280iRT132..ARL197908-198008

main67001-20310iTT132..LB..LHD..4F..GEN198012-198112

*SAA

sub67001-20241

main67001-20310iRT132,133..GL198008-198301

sub67001-20241

main67001-20320iTT132..LHD..4F..DLX..LEF198012-198112

*SAA

sub67001-20191

main67001-95508iRT132,TT132..HT197809-198112

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20180iRT13#,TT13#..(SED,WG)..(GEN,PHL)197809-198008

sub67002-20181

main67002-20181iRT130,132,TT13#..SED,WG198008-198205

sub67002-20191

main67002-20191iRT133,XT130..STD198111-198301

main67002-20191iTT13#..SED..LHD..(3FC,4F)..LNK198012-198112

*SAA

main67002-20220iRT13#,TT132..SED..(EUR,GEN)197809-198008

W/DOOR MIRROR

main67002-20230iRT132..LB;TT132..LB..RHD;TT132..LB..LHD..GEN197809-198008

sub67002-20231

main67002-20231iTT132..LB198008-198112

sub67002-20241

main67002-20240iRT132..ARL197908-198008

main67002-20260iRT132,TT132..LB..LHD197809-198008

W/DOOR MIRROR

main67002-20270iXT130197908-198008

sub67002-20271

main67002-20271iTT132..LHD..4F..DLX..LEF198012-198112

*SAA

sub67002-20191

main67002-20290iTT132..LB..LHD..4F..GEN198012-198112

*SAA

sub67002-20241

main67002-20290iRT132,133..GL198008-198301

sub67002-20241

main67002-95510iRT132,TT132..HT197809-198112

main67002-95512iRT132,TT132..HT197809-198008

W/DOOR MIRROR

67111PANEL, FRONT DOOR, OUTER RH

main67111-20100iRT13#,TT13#,XT130..LB,SED,WG197809-198301

main67111-20120iTT132..(SED,WG)..RHD;RT13#,TT133,XT130..DLX,STD;TT132..(SED,WG)..LHD..(3FC,4F)198106-198301

GALVANIZED IRON SHEET

main67111-95502iRT132,TT132..HT197809-198112

67112PANEL, FRONT DOOR, OUTER LH

main67112-20130iRT13#,TT13#,XT130..LB,SED,WG197809-198301

main67112-20151iTT132..(SED,WG)..RHD;RT13#,TT133,XT130..DLX,STD;TT132..(SED,WG)..LHD..(3FC,4F)198106-198301

GALVANIZED IRON SHEET

main67112-95502iRT132,TT132..HT197809-198112

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-20080iRT130,132,TT13#,XT130..(SED,WG)..(ARL,GEN,PHL)197809-198301

main67401-20090iRT132,TT132..LB197809-198112

main67401-20100iRT13#,TT13#,XT130..SED,WG198008-198301

W/DOOR MIRROR

main67401-20110iRT132,133,TT132..LB198008-198301

W/DOOR MIRROR

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-20070iRT13#,TT13#,XT130..SED,WG197809-198301

main67402-20080iTT132..LB..GEN197809-198112

main67402-20090iRT13#,TT13#,XT130..SED,WG198008-198301

W/DOOR MIRROR

main67402-20100iRT132,133,TT132..LB198008-198301

W/DOOR MIRROR

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-20030iRT130,132,TT13#,XT130..(SED,WG)..(ARL,GEN,PHL)197809-198301

main67481-20040iTT132..LB..GEN197809-198112

main67481-20050iRT13#,TT13#,XT130..LB,SED,WG198008-198301

W/DOOR MIRROR

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-20050iRT13#,TT13#,XT130..LB,SED,WG198008-198301

W/DOOR MIRROR

main67482-20020iRT130,132,TT13#,XT130..SED,WG197809-198301

main67482-20030iRT132,TT132..LB197809-198112

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20030iRT133,XT130..STD198008-198301

main67491-20040iRT132,133,TT132..LB198008-198301

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20030iRT133,XT130..STD198008-198301

main67492-20040iRT130,TT13#..SED..LHD..DLX198008-198112

W/REMOCON DOOR MIRROR

main67492-20050iRT132,133,TT132..LB198008-198301

main67492-20060iTT132..LB..LHD198008-198112

W/REMOCON DOOR MIRROR

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-20030iRT130,132,TT13#..SED..LHD198008-198205

main67495-20040iTT132..LB..LHD198008-198112

main67496-20010iRT133,XT130..STD198111-198301

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iRT13#,TT13#,XT130..LB,SED,WG198008-198301

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-20740-01iRT13#,TT13#..STD197809-198008

BLACK,BLACK,TRIM2#

main67610-20740-02iRT13#,TT13#..SED..STD197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-20740-05iRT13#,TT13#..STD197809-198008

BEIGE,BEIGE,TRIM4#

main67610-20741-01iRT130,132,TT13#..STD198008-198205

BLACK,BLACK,TRIM2#

main67610-20741-02iRT132,TT13#..SED..STD198008-198205

DARK WINE,RED/MAROON,TRIM3#

main67610-20741-06iRT130,132,TT13#..STD198008-198205

LIGHT BROWN,BROWN,TRIM4#

main67610-20780-01iRT13#,TT13#..(LB,SED,WG)..DLX..GEN197809-198008

BLACK,BLACK,TRIM2#

main67610-20780-02iXT130..LNK197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-20780-05iRT13#,TT13#..(LB,SED,WG)..DLX..GEN197809-198008

BEIGE,BEIGE,TRIM4#

main67610-20781-01iXT130;RT130,TT13#..(LB,SED,WG)..DLX..(GEN,PHL)198008-198301

BLACK,BLACK,TRIM2#

main67610-20781-02iXT130;RT130,TT13#..(LB,SED)..DLX..(GEN,PHL)198008-198112

DARK WINE,RED/MAROON,TRIM3#

main67610-20781-06iXT130;RT130,TT13#..(LB,SED,WG)..DLX..(GEN,PHL)198008-198301

LIGHT BROWN,BROWN,TRIM4#

main67610-20800-01iTT132..DLX..EUR197809-198008

BLACK,BLACK,TRIM2#

main67610-20800-02iTT132..DLX..EUR197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-20800-05iTT132..DLX..EUR197809-198008

BEIGE,BEIGE,TRIM4#

main67610-20801-01iTT132..DLX..EUR198008-198108

BLACK,BLACK,TRIM2#

main67610-20801-02iTT132..DLX..EUR198008-198108

DARK WINE,RED/MAROON,TRIM3#

main67610-20801-06iTT132..DLX..EUR198008-198108

LIGHT BROWN,BROWN,TRIM4#

main67610-20831-01iRT132,133,TT132..GL198008-198301

BLACK,BLACK,TRIM2#

main67610-20831-01iRT133,XT130..STD198111-198301

FB-C,BLACK,BLACK,TRIM2#

main67610-20831-02iRT133,XT130..STD..LNK198111-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main67610-20831-02iRT132,133,TT132..GL198008-198301

DARK WINE,RED/MAROON,TRIM3#

main67610-20831-06iRT132,133,TT132..GL198008-198301

LIGHT BROWN,BROWN,TRIM4#

main67610-20831-06iRT133,XT130..STD198111-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main67610-20860-01iXT130..LNK197908-198008

W/POCKET,BLACK,BLACK,TRIM2#

main67610-20860-01iRT132,TT132..GL197809-198008

BLACK,BLACK,TRIM2#

main67610-20860-02iRT132,TT132..GL197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-20860-02iXT130..LNK197908-198008

W/POCKET,DARK WINE,RED/MAROON,TRIM3#

main67610-20860-05iXT130..LNK197908-198008

W/POCKET,BEIGE,BEIGE,TRIM4#

main67610-20860-05iRT132,TT132..GL197809-198008

BEIGE,BEIGE,TRIM4#

main67610-20890-01iRT133,XT130..STD198008-198301

W/DOOR MIRROR,BLACK,BLACK,TRIM2#

main67610-20890-02iRT133,XT130..STD..LNK198008-198301

W/DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#

main67610-20890-06iRT133,XT130..STD198008-198301

W/DOOR MIRROR,LIGHT BROWN,BROWN,TRIM4#

main67610-95536-01iRT132,TT132..HT197809-198008

BLACK,BLACK,TRIM2#

main67610-95536-02iRT132,TT132..HT197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-95536-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main67610-95544-01iTT132..HT198008-198112

BLACK,BLACK,TRIM2#

main67610-95544-02iTT132..HT198008-198112

DARK WINE,RED/MAROON,TRIM3#

main67610-95544-06iTT132..HT198008-198112

LIGHT BROWN,BROWN,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-14010iRT132,TT132,XT130..ARL,EUR197809-198301

main67771-20022iRT132,TT132,XT130..ARL,EUR197809-198301

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-20560-01iRT13#,TT13#..STD197809-198008

BLACK,BLACK,TRIM2#

main67620-20560-02iRT13#,TT13#..SED..STD197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-20560-05iRT13#,TT13#..STD197809-198008

BEIGE,BEIGE,TRIM4#

main67620-20561-01iRT130,132,TT13#..STD198008-198205

BLACK,BLACK,TRIM2#

main67620-20561-02iRT132,TT13#..SED..STD198008-198205

DARK WINE,RED/MAROON,TRIM3#

main67620-20561-06iRT130,132,TT13#..STD198008-198205

LIGHT BROWN,BROWN,TRIM4#

main67620-20580-01iXT130197809-198008

BLACK,BLACK,TRIM2#

main67620-20580-02iRT13#,TT13#..(LB,SED)..DLX..GEN197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-20580-05iXT130197809-198008

BEIGE,BEIGE,TRIM4#

main67620-20581-01iXT130;RT130,TT13#..(LB,SED,WG)..DLX..(GEN,PHL)198008-198301

BLACK,BLACK,TRIM2#

main67620-20581-02iXT130;RT130,TT13#..(LB,SED)..DLX..(GEN,PHL)198008-198301

DARK WINE,RED/MAROON,TRIM3#

main67620-20581-06iXT130;RT130,TT13#..(LB,SED,WG)..DLX..(GEN,PHL)198008-198301

LIGHT BROWN,BROWN,TRIM4#

main67620-20610-01iXT130..LNK197908-198008

W/POCKET,BLACK,BLACK,TRIM2#

main67620-20610-01iRT132,TT132..GL197809-198008

BLACK,BLACK,TRIM2#

main67620-20610-02iXT130..LNK197908-198008

W/POCKET,DARK WINE,RED/MAROON,TRIM3#

main67620-20610-02iRT132,TT132..GL197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-20610-05iRT132,TT132..GL197809-198008

BEIGE,BEIGE,TRIM4#

main67620-20610-05iXT130..LNK197908-198008

W/POCKET,BEIGE,BEIGE,TRIM4#

main67620-20631-01iRT132,133,TT132..GL198008-198301

BLACK,BLACK,TRIM2#

main67620-20631-01iRT130,XT130198111-198301

FB-C,BLACK,BLACK,TRIM2#

main67620-20631-02iRT130,XT130..LNK198111-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main67620-20631-02iRT132,133,TT132..GL198008-198301

DARK WINE,RED/MAROON,TRIM3#

main67620-20631-06iRT130,XT130198111-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main67620-20631-06iRT132,133,TT132..GL198008-198301

LIGHT BROWN,BROWN,TRIM4#

main67620-20660-01iTT132..DLX..EUR197809-198008

BLACK,BLACK,TRIM2#

main67620-20660-02iTT132..DLX..EUR197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-20660-05iTT132..DLX..EUR197809-198008

BEIGE,BEIGE,TRIM4#

main67620-20661-01iTT132..DLX..EUR198008-198108

BLACK,BLACK,TRIM2#

main67620-20661-02iTT132..DLX..EUR198008-198108

DARK WINE,RED/MAROON,TRIM3#

main67620-20661-06iTT132..DLX..EUR198008-198108

LIGHT BROWN,BROWN,TRIM4#

main67620-20690-01iRT130,TT13#..(LB,SED,WG)..DLX..(GEN,PHL)198008-198301

W/DOOR MIRROR,BLACK,BLACK,TRIM2#

main67620-20690-02iRT130,TT13#..(LB,SED)..DLX..(GEN,PHL)198008-198301

W/DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#

main67620-20690-06iRT130,XT130198008-198301

W/DOOR MIRROR,LIGHT BROWN,BROWN,TRIM4#

main67620-95521-01iRT132..HT197809-198112

BLACK,BLACK,TRIM2#

main67620-95521-02iRT132,TT132..HT197809-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-95521-05iRT132..HT197809-198112

BEIGE,BEIGE,TRIM4#

main67620-95522-01iRT132..HT197810-197905

BLACK,BLACK,TRIM2#

main67620-95522-02iRT132..HT197810-197905

DARK WINE,RED/MAROON,TRIM3#

main67620-95522-05iRT132..HT197810-197905

BEIGE,BEIGE,TRIM4#

main67620-95529-01iTT132..HT198008-198112

BLACK,BLACK,TRIM2#

main67620-95529-02iTT132..HT198008-198112

DARK WINE,RED/MAROON,TRIM3#

main67620-95529-06iTT132..HT198008-198112

LIGHT BROWN,BROWN,TRIM4#

67777POCKET, FRONT DOOR TRIM, RH

main67777-22040-01iRT132,TT132..ARL,EUR197809-198108

BLACK,BLACK,TRIM2#

sub67777-22040

main67777-22040-02iTT132..DLX..EUR197809-198108

DARK WINE,RED/MAROON,TRIM3#

sub67777-22040

main67777-22040-05iRT132,TT132..ARL,EUR197809-198008

BEIGE,BEIGE,TRIM4#

sub67777-22040

main67777-22040-06iTT132..DLX..EUR198008-198108

LIGHT BROWN,BROWN,TRIM4#

sub67777-22040

67778POCKET, FRONT DOOR TRIM, LH

main67778-22030-01iXT130..LNK197809-198108

BLACK,BLACK,TRIM2#

sub67778-22030

main67778-22030-02iRT132,TT132..ARL,EUR197809-198108

DARK WINE,RED/MAROON,TRIM3#

sub67778-22030

main67778-22030-05iRT132,TT132..ARL,EUR197809-198008

BEIGE,BEIGE,TRIM4#

sub67778-22030

main67778-22030-06iTT132..DLX..EUR198008-198108

LIGHT BROWN,BROWN,TRIM4#

sub67778-22030

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-20030iRT13#,TT13#..STD197809-198101

sub69751-20031

main69751-20031-01iRT130,132,TT13#..STD198101-198205

BLACK

sub69751-20031

main69751-20040iRT133,XT130;RT130,132,TT13#..(LB,SED,WG)..(DLX,GL)197809-198301

67811PAD, FRONT DOOR SILENCER

main67811-20050iRT130,132,TT13#..(LB,SED,WG)..(EUR,GEN,PHL)197809-198205

sub67811-12010

main67811-20060iRT132,TT132..HT197809-198112

sub67811-12010

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20180iRT132,XT130..ARL197908-198001

sub67831-20181

sub67832-20050

main67831-20181iRT132,XT130..LNK..ARL198001-198008

main67831-20190iRT13#,TT13#..(LB,SED,WG)..(EUR,GEN,PHL)197809-198001

sub67831-20191

sub67832-20040

main67831-20191iRT13#,TT13#,XT130..LB,SED198001-198301

main67831-91256iRT132,TT13#,XT130..WG198001-198301

main67831-95504iRT132,TT132..HT197809-198112

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-20180iRT132,XT130..ARL197908-198001

sub67831-20181

sub67832-20050

main67831-20190iRT13#,TT13#..(LB,SED,WG)..(EUR,GEN,PHL)197809-198001

sub67831-20191

sub67832-20040

main67831-91256iRT132,TT13#,XT130..WG198001-198301

main67831-95504iRT132,TT132..HT197809-198112

main67832-20040iRT13#,TT13#,XT130..LB,SED198001-198301

main67832-20050iRT132,XT130..LNK..ARL198001-198008

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20130iRT13#,TT132..SED,WG197809-197908

sub67861-20131

main67861-20131iRT13#,TT13#,XT130..SED197908-198301

main67861-20150iRT132,TT132..LB197809-197908

sub67861-20151

main67861-20151iRT132,133,TT132..LB197908-198301

main67861-91256iRT130,132,TT13#,XT130..WG197908-198301

main67861-95501iRT132,TT132..HT197809-198112

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20130iRT13#,TT132..SED,WG197809-197908

sub67862-20131

main67862-20131iRT13#,TT13#,XT130..SED197908-198301

main67862-20150iRT132,TT132..LB197809-197908

sub67862-20151

main67862-20151iRT132,133,TT132..LB197908-198301

main67862-91256iRT130,132,TT13#,XT130..WG197908-198301

main67862-95501iRT132,TT132..HT197809-198112

67867CLIP, DOOR WEATHERSTRIP

main67869-30020iRT132,TT132..HT197809-198112

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iRT13#,TT13#,XT130..LB,SED,WG197809-198301

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20220iRT130,132,TT13#,XT130..STD197809-198301

*TEM,T=4.0

sub68111-20230

main68111-20230iRT130..SED..PHL;RT13#,TT13#,XT130..(SED,WG)..(ARL,EUR,GEN)197809-198301

*TT,T=4.0

main68111-20240iTT132..LB..GEN197809-198112

*TT,T=4.0

main68111-20250iRT13#,TT13#,XT130..STD198008-198301

*TEM,T=4.0,W/DOOR MIRROR

sub68111-20260

main68111-20260iRT13#,TT13#,XT130..SED,WG198008-198301

*TT,T=4.0,W/DOOR MIRROR

main68111-20270iRT132,133,TT132..LB198008-198301

*TT,T=4.0,W/DOOR MIRROR

main68111-95502iRT132,TT132..HT197809-198112

*TT,T=5.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20140iRT130,132,TT13#,XT130..STD197809-198301

*TEM,T=4.0

sub68112-20150

main68112-20150iRT130,132,TT13#,XT130..SED,WG197809-198301

*TT,T=4.0

main68112-20160iTT132..LB..GEN197809-198112

*TT,T=4.0

main68112-20170iRT13#,TT13#,XT130..STD198008-198301

*TEM,T=4.0,W/DOOR MIRROR

sub68112-20180

main68112-20180iRT13#,TT13#,XT130..SED,WG198008-198301

*TT,T=4.0,W/DOOR MIRROR

main68112-20190iRT132,133,TT132..LB198008-198301

*TT,T=4.0,W/DOOR MIRROR

main68112-95500iRT132,TT132..HT197809-198112

*TT,T=5.0

68141RUN, FRONT DOOR GLASS

main68141-14030iRT13#,TT132..SED197809-197906

L=1016+685

sub68141-20100

main68141-20070iTT132..LB..GEN197809-198112

L=1670

main68141-20080iRT130,132,TT13#,XT130..SED197809-198301

L=1701,PLANT NO.M21

main68141-20090iTT132..LB..GEN197809-198112

L=1670,PLANT NO.M21

sub68141-20080

main68141-20100iRT130,132,TT13#,XT130..SED197906-198301

L=1016,685

main68141-20110iRT13#,TT13#,XT130..SED,WG198008-198301

L=141+825+685,W/DOOR MIRROR

main68141-20120iRT132,133,TT132..LB198008-198301

L=130+818+661,W/DOOR MIRROR

main68141-91256iRT130,132,TT13#,XT130..WG197809-198301

L=1701

sub68141-91C01

main68143-20050iRT13#,TT13#,XT130..LB,SED,WG198008-198301

L=450,W/DOOR MIRROR

sub68143-91C02

main68143-22010iRT13#,TT13#,XT130..LB,SED197809-198301

L=426

sub68143-14020

main68143-91255iRT130,132,TT13#,XT130..WG197809-198301

L=439

sub68143-91C01

main68143-91601iRT13#,TT13#,XT130..LB,SED197809-198301

L=426,PLANT NO.M21

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-20050iRT130,132,TT13#..STD197809-198205

RH

main68210-20040iRT130,132,TT13#..STD197809-198205

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030iRT130,132,TT13#..STD197809-198205

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-20110iXT130;RT130,133..LHD..LNK;TT13#..(LB,SED,WG)..DLX..GEN197809-198301

main68170-20120iRT130,132,TT13#..STD197809-198205

RH

main68170-20140iRT130,132,TT13#..STD198008-198205

W/DOOR MIRROR,RH

main68170-20150iXT130;RT13#..LNK;TT13#..(LB,SED,WG)..(DLX,GL)198008-198301

W/DOOR MIRROR,RH

main68170-95500iRT132,TT132..HT197809-198112

main68220-20070iRT130,132,TT13#..STD197809-198205

LH

main68220-20080iRT130,132,TT13#..STD198008-198205

W/DOOR MIRROR,LH

main68220-20090iXT130;RT13#..LNK;TT13#..(LB,SED,WG)..(DLX,GL)198008-198301

W/DOOR MIRROR,LH

68218SEAL, FRONT DOOR WINDOW CORNER, RH

main67481-20050iRT132,133,TT132..LB198008-198301

68219SEAL, FRONT DOOR WINDOW CORNER, LH

main67481-20050iTT132..LB..LHD198008-198112

W/REMOCON DOOR MIRROR

main67481-20050iRT130,132,TT13#..SED,WG198008-198301

68610CHECK ASSY, FRONT DOOR

main68610-20010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

main68610-95500iRT132,TT132..HT197809-198112

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010iRT13#,TT13#,XT130197809-198301

sub68617-12010

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9016840025

main90168-40025

9017906070

main90179-06070

9165140610

main91651-40610

9352014010

main93520-14010

9352014012

main93520-14012

9354015016

main93540-15016

44 parts on this diagram · 2 diagrams in section
