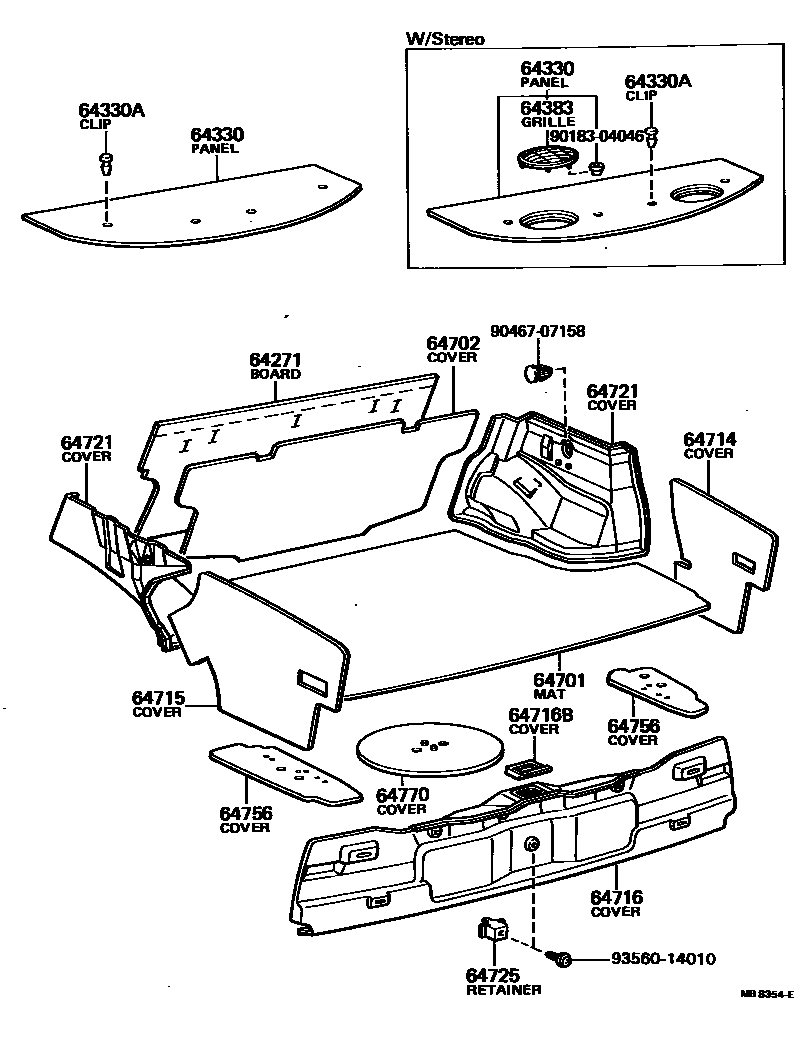

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64271BOARD, ROOM PARTITION, NO.1

main64271-20100iRT13#,TT13#,XT130..HT,SED197809-198301

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20240-01iRT13#,TT13#,XT130..SED..(DLX,STD)197809-197911

BLACK,BLACK,TRIM2#

sub64330-20250

main64330-20240-01iTT13#..SED..LHD..(3FC,4F)..DLX198012-198112

W/RADIO,BLACK,BLACK,TRIM2#

sub64330-20250

main64330-20240-01iRT13#,TT13#,XT130..SED..STD197911-198301

BLACK,BLACK,TRIM2#,4#

sub64330-20250

main64330-20240-02iRT13#,TT13#,XT130..SED..(DLX,STD)197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub64330-20250

main64330-20240-05iRT13#,TT13#,XT130..SED..(DLX,STD)197809-198101

BEIGE,BEIGE,TRIM4#

sub64330-20250

main64330-20250-01iTT13#,XT130..SED..(ARL,GEN)197809-198008

W/STEREO,BLACK,BLACK,TRIM2#

sub64330-20250

main64330-20250-01iRT132,133,TT13#,XT130..SED..STD198008-198301

W/STEREO,BLACK,BLACK,TRIM2#,4#

sub64330-20250

main64330-20250-02iRT13#..SED197809-198301

W/STEREO,DARK WINE,RED/MAROON,TRIM3#

sub64330-20250

main64330-20250-05iRT13#..SED197809-198101

W/STEREO,BEIGE,BEIGE,TRIM4#

sub64330-20250

main64330-20260-01iTT132..SED..GL197809-198008

BLACK,BLACK,TRIM2#

sub64330-20270

sub64330-20260

main64330-20260-02iTT132..SED..GL197809-198008

DARK WINE,RED/MAROON,TRIM3#

sub64330-20270

sub64330-20260

main64330-20260-05iTT132..SED..GL197809-198008

BEIGE,BEIGE,TRIM4#

sub64330-20270

sub64330-20260

main64330-20260-06iTT132..SED..GL198008-198008

LIGHT BROWN,BROWN,TRIM4#

sub64330-20270

sub64330-20260

main64330-20270-01iTT132..SED..GL197811-198008

W/STEREO,BLACK,BLACK,TRIM2#

sub64330-20270

main64330-20270-02iTT132..SED..GL197811-198008

W/STEREO,DARK WINE,RED/MAROON,TRIM3#

sub64330-20270

main64330-20270-05iTT132..SED..GL197811-198008

W/STEREO,BEIGE,BEIGE,TRIM4#

sub64330-20270

main64330-20300-01iRT130,132,TT13#..SED..DLX197911-198112

BLACK,BLACK,TRIM2#

sub64330-20310

sub64330-20300

main64330-20300-01iTT132..4F..STD..LNK198012-198108

W/RADIO,BLACK,BLACK,TRIM2#

sub64330-20310

sub64330-20300

main64330-20300-02iTT132..4F..STD..LNK198012-198108

W/RADIO,DARK WINE,RED/MAROON,TRIM3#

sub64330-20310

sub64330-20300

main64330-20300-02iRT130,132,TT13#..SED..DLX197911-198112

DARK WINE,RED/MAROON,TRIM3#

sub64330-20310

sub64330-20300

main64330-20300-05iRT132,TT13#..SED..DLX197911-198008

BEIGE,BEIGE,TRIM4#

sub64330-20310

sub64330-20300

main64330-20300-06iRT130,TT13#..SED..DLX198008-198112

LIGHT BROWN,BROWN,TRIM4#

sub64330-20310

sub64330-20300

main64330-20300-06iTT132..4F..STD..LNK198012-198108

W/RADIO,LIGHT BROWN,BROWN,TRIM4#

sub64330-20310

sub64330-20300

main64330-20310-01iRT132,TT13#..SED..DLX..GEN197911-198112

W/STEREO,BLACK,BLACK,TRIM2#

sub64330-20310

main64330-20310-02iRT130,TT13#..SED..DLX197911-198112

W/STEREO,DARK WINE,RED/MAROON,TRIM3#

sub64330-20310

main64330-20310-05iRT132,TT13#..SED..DLX..GEN197911-198008

W/STEREO,BEIGE,BEIGE,TRIM4#

sub64330-20310

main64330-20310-06iRT130,TT13#..SED..DLX198008-198112

W/STEREO,LIGHT BROWN,BROWN,TRIM4#

sub64330-20310

main64330-95513-01iRT132,TT132..HT197809-198112

BLACK,BLACK,TRIM2#

sub64330-95513

main64330-95513-02iRT132,TT132..HT197809-198112

DARK WINE,RED/MAROON,TRIM3#

sub64330-95513

main64330-95513-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

sub64330-95513

main64330-95513-06iTT132..HT198008-198112

LIGHT BROWN,BROWN,TRIM4#

sub64330-95513

main64330-95514-01iRT132,TT132..HT197809-198112

W/STEREO,BLACK,BLACK,TRIM2#

sub64330-95514

main64330-95514-02iRT132,TT132..HT197809-198112

W/STEREO,DARK WINE,RED/MAROON,TRIM3#

sub64330-95514

main64330-95514-05iRT132,TT132..HT197809-198008

W/STEREO,BEIGE,BEIGE,TRIM4#

sub64330-95514

main64330-95514-06iTT132..HT198008-198112

W/STEREO,LIGHT BROWN,BROWN,TRIM4#

sub64330-95514

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main64371-12010-02iRT132,TT132..HT197809-198112

DARK WINE,RED/MAROON,TRIM3#

sub64371-12010

sub90467-09019

main64371-12010-21iRT132,TT132..HT197809-198112

BLACK,BLACK,TRIM2#

sub64371-12010

sub90467-09019

main64371-12010-56iRT132,TT132..HT197809-198112

LIGHT BROWN,BROWN,TRIM4#

sub64371-12010

sub90467-09019

main90467-09065-01iTT132..4F..STD..LNK198012-198108

W/RADIO,BLACK,BLACK,TRIM2#

sub90467-09065

sub90467-09010

main90467-09065-01iTT132..SED..GL197809-198112

BLACK,BLACK,TRIM2#

sub90467-09065

sub90467-09010

main90467-09065-02iTT132..4F..STD..LNK198012-198108

W/RADIO,DARK WINE,DARK WINE,TRIM3#

sub90467-09065

sub90467-09010

main90467-09065-02iRT130,TT13#..SED..DLX197809-198112

DARK WINE,DARK WINE,TRIM3#

sub90467-09065

sub90467-09010

main90467-09065-05iTT132..SED..GL197809-198008

BEIGE,BEIGE,TRIM4#

sub90467-09065

sub90467-09010

main90467-09065-26iTT132..4F..STD..LNK198012-198108

W/RADIO,LIGHT BROWN,BROWN,TRIM4#

sub90467-09065

sub90467-09010

main90467-09065-26iRT130,TT13#..SED..DLX198008-198112

LIGHT BROWN,BROWN,TRIM4#

sub90467-09065

sub90467-09010

main90467-09144-01iRT13#,TT13#,XT130..SED..(DLX,STD)197809-198008

BLACK,BLACK,TRIM2#

sub90467-09144

main90467-09144-01iTT13#..SED..LHD..(3FC,4F)..DLX198012-198112

W/RADIO,BLACK,BLACK,TRIM2#

sub90467-09144

main90467-09144-01iRT132,TT13#,XT130..SED..STD198008-198301

BLACK,BLACK,TRIM2#,4#

sub90467-09144

main90467-09144-02iRT133,XT130..STD..LNK197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub90467-09144

main90467-09144-05iXT130..LNK197809-198101

BEIGE,BEIGE,TRIM4#

sub90467-09144

main90467-09144-06iRT133,XT130..STD..LNK198101-198301

LIGHT BROWN,BROWN,TRIM4#

sub90467-09144

64383GRILLE, SPEAKER, REAR

main64383-22011-01iRT13#,TT13#,XT130..HT,SED197809-198301

BLACK,BLACK,TRIM2#

sub64383-22011

main64383-22011-02iRT13#,TT13#,XT130..HT,SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub64383-22011

main64383-22011-05iRT13#,TT13#,XT130..HT,SED197809-198101

BEIGE,BEIGE,TRIM4#

sub64383-22011

main64383-22011-06iRT13#,TT13#..HT,SED198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub64383-22011

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-20120iRT13#,TT13#..(HT,SED)..GEN197809-198301

main64711-20150iTT132,XT130..SED..(ARL,EUR)197809-198008

64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT

main64717-20050iRT133,TT132,XT130..SED..(ARL,EUR)197809-198301

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-20120iRT133..STD;XT130..(3FC,4F)..LNK;RT130,132,TT13#..(HT,SED)..(DLX,GL)197809-198301

64715COVER, LUGGAGE COMPARTMENT, LH

main64715-20120iRT133..STD;XT130..(3FC,4F)..LNK;RT130,132,TT13#..(HT,SED)..(DLX,GL)197809-198301

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-20040iTT132,XT130..SED..(GL,STD)..(ARL,EUR)197809-198006

sub64716-20041

main64716-20041iXT130..(3FC,4F)..LNK;RT133,TT132..SED..(GL,STD)..(ARL,EUR)198006-198301

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-14030iTT132..HT..LHD;TT132..(HT,SED)..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198108-198301

main64749-20020iRT13#,TT13#,XT130..HT,SED197809-198108

sub64749-14030

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20020iRT133,XT130..STD..LNK197908-198301

RH

main64721-20030iTT132..SED..EUR197809-198008

RH

main64722-20010iRT133,TT132,XT130..SED..(ARL,EUR)197809-198301

LH

64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1

main64725-30070iXT130..(3FC,4F)..LNK;RT133,TT132..SED..(GL,STD)..(ARL,EUR)197809-198301

sub64725-95800

64756COVER, LUGGAGE COMPARTMENT SIDE

main58703-20010iRT130,132,TT13#..(HT,SED)..(GEN,PHL)197809-198205

RH

main58703-20020iRT133,TT132,XT130..SED..(ARL,EUR)197809-198301

RH

main58704-20010iRT13#,TT13#,XT130..HT,SED197809-198301

LH

64770COVER ASSY, SPARE WHEEL

main64770-14010iRT13#,TT13#,XT130..HT,SED197809-198301

9018304046

main90183-04046

9046707158

main90467-07158

9356014010

main93560-14010

17 parts on this diagram · 1 diagram in section
