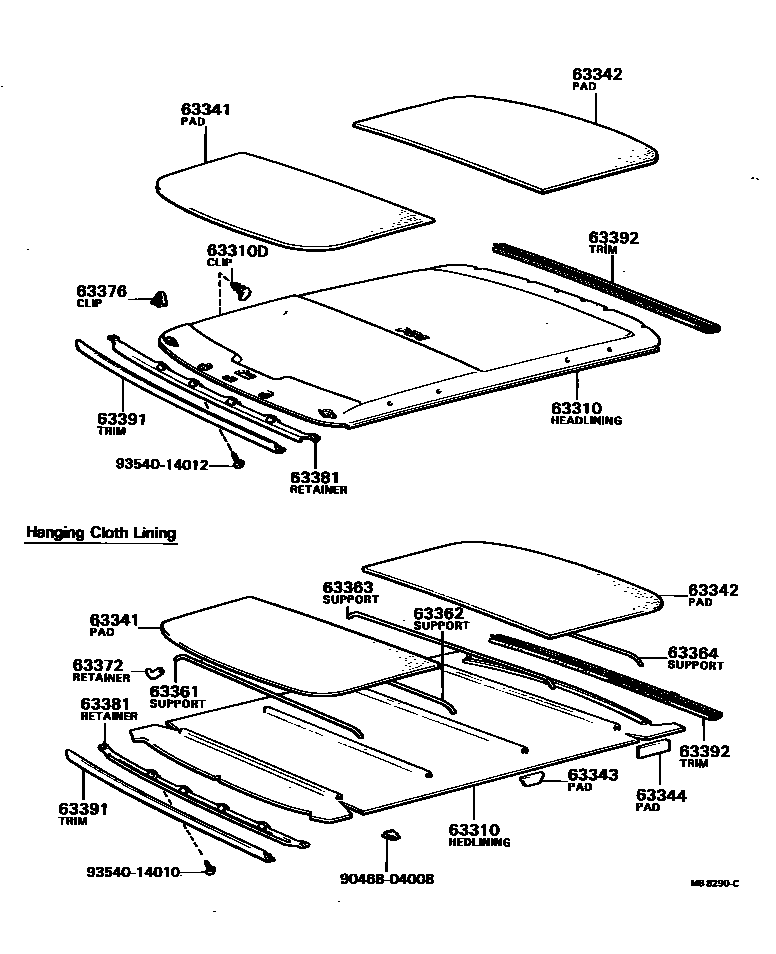

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63310HEADLINING ASSY, ROOF

main63310-20180-05iRT132..SED..LNK;RT130..SED..LEF..GEN;TT13#..SED..(DLX,STD)197809-198008

BEIGE,BEIGE,TRIM4#

main63310-20180-08iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

main63310-20180-08iRT132..SED..LNK;RT130..SED..LEF..GEN;TT13#..SED..(DLX,STD)197809-198008

IVORY,IVORY,TRIM2#,3#

main63310-20210-05iTT132..SED..GL197809-198008

BEIGE,BEIGE,TRIM4#

sub63310-20211

sub63310-20250

main63310-20210-08iTT132..SED..GL197809-198008

IVORY,IVORY,TRIM2#,3#

sub63310-20211

sub63310-20250

main63310-20220-05iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-197910

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub63310-20221

main63310-20220-08iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-197910

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

sub63310-20221

main63310-20221-05iRT13#..SED..LHD;TT132..SED..LHD..(3FC,5F)..DLX..GEN197910-198008

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub63310-20222

main63310-20221-05iXT130..LNK198008-198101

BEIGE,BEIGE,TRIM4#

sub63310-20222

main63310-20221-08iTT132..SED..RHD..DLX;RT132,XT130..SED..RHD197910-198011

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

sub63310-20222

main63310-20222-05iXT130..LNK198011-198101

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

main63310-20222-08iTT132..SED..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198011-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

main63310-95514-08iTT132..HT..RHD198008-198112

IVORY,IVORY,TRIM2#,3#,4#

main63310-95515-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main63310-95515-08iRT132,TT132..HT..LHD197809-198112

IVORY,IVORY,TRIM2#,3#,4#

main63311-20260-05iRT132,TT132..LB..DLX197809-198008

BEIGE,BEIGE,TRIM4#

sub63311-20260

main63311-20260-08iRT132,TT132..LB..DLX197809-198112

IVORY,IVORY,TRIM2#,3#,4#

sub63311-20260

main63311-20280-05iRT132,TT132..LB..GL197809-198008

BEIGE,BEIGE,TRIM4#

sub63311-20281

main63311-20280-08iRT132,TT132..LB..GL197809-198008

IVORY,IVORY,TRIM2#,3#

sub63311-20281

main63311-20281-08iRT132,133,TT132..GL198008-198301

IVORY,IVORY,TRIM2#,3#,4#

sub63311-20281

main63311-20310iTT132..GL198008-198108

W/SUN ROOF

main63311-91255-05iXT130..LEF197809-198101

BEIGE,BEIGE,TRIM4#

main63311-91255-08iRT130,132,TT13#,XT130..WG197809-198301

IVORY,IVORY,TRIM2#,4#

63310DCLIP, ROOF HEADLINING

main90467-07007-05iRT13#,TT13#..LB,SED197809-198008

BEIGE,BEIGE,TRIM4#

sub90467-07007

main90467-07007-08iRT13#,TT13#..LB,SED197809-198008

IVORY,IVORY,TRIM2#,3#

sub90467-07007

main90467-07007-08iRT130,132,TT13#..(LB,SED)..(DLX,STD)198008-198205

IVORY,IVORY,TRIM2#,3#,4#

sub90467-07007

63341PAD, ROOF SILENCER, NO.1

main63341-20070iRT13#,TT13#,XT130..HT,LB,SED197809-198301

sub63341-22H92

main63341-91256iRT130,132,TT13#,XT130..WG197809-198301

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63341-20070iRT13#,TT13#,XT130..SED197809-198301

sub63341-22H92

main63343-20050iRT132,133,TT132..LB197809-198301

sub63341-22H92

main63343-91257iRT130,132,TT13#,XT130..WG197809-198301

sub63343-91256

main63343-95501iRT132,TT132..HT197809-198112

sub63341-22H92

63343PAD, ROOF SILENCER, NO.3

main63353-20010iTT133..RHD..5F;TT133..LHD..4F..DLX;TT133..RHD..STD..LNK197809-198301

63344PAD, ROOF SILENCER, NO.4

main63352-20010iTT132..SED..RHD..DLX;RT13#,XT130..SED..RHD..LNK197809-198301

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-20060iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198301

L=1014

sub63361-20080

main63361-20070iTT132..SED..RHD..DLX;RT13#,XT130..SED..RHD..LNK197809-198301

L=1011

sub63361-20080

main63361-20080iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198301

L=1017

main63361-91256iRT130,132,TT13#,XT130..WG197809-198301

L=1033

main63361-91257iRT130,132,TT13#,XT130..WG197809-198301

L=1038

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-20060iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198301

L=1014

sub63361-20080

main63361-20070iTT132..SED..RHD..DLX;RT13#,XT130..SED..RHD..LNK197809-198301

L=1011

sub63361-20080

main63361-20080iRT13#,TT13#,XT130..SED197809-198301

L=1017

main63361-91256iRT130,132,TT13#,XT130..WG197809-198301

L=1033

main63361-91257iRT130,132,TT13#,XT130..WG197809-198301

L=1038

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-20060iTT132..SED..RHD..DLX;RT13#,XT130..SED..RHD..LNK197809-198301

L=1014

sub63361-20080

main63361-20070iTT132..SED..RHD..DLX;RT13#,XT130..SED..RHD..LNK197809-198301

L=1011

sub63361-20080

main63361-20080iTT132..SED..RHD..DLX;RT13#,XT130..SED..RHD..LNK197809-198301

L=1017

main63361-91256iRT130,132,TT13#,XT130..WG197809-198301

L=1033

main63361-91257iRT130,132,TT13#,XT130..WG197809-198301

L=1038

63364SUPPORT, ROOF HEADLINING, NO.4

main63361-20060iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198301

L=1014

sub63361-20080

main63361-20070iTT132..SED..RHD..DLX;RT13#,XT130..SED..RHD..LNK197809-198301

L=1011

sub63361-20080

main63361-20080iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198301

L=1017

main63361-91256iRT130,132,TT13#,XT130..WG197809-198301

L=1033

main63361-91257iRT130,132,TT13#,XT130..WG197809-198301

L=1038

63372RETAINER, HEADLINING SUPPORT

main63365-12010iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198301

63376CLIP, HEADLINING

main63376-20010iRT13#,TT13#..HT,SED197809-198010

main63395-12020iTT132..HT..LHD;TT132..(HT,SED)..RHD;RT130,132,TT133..SED;TT132..SED..LHD..(3FC,4F)198010-198205

63381RETAINER, HEADLINING, FRONT

main63381-20020iTT13#..SED197809-198112

main63381-20030iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198301

SUSPENDED HEADLINING

main63381-20030iRT130,132,TT13#,XT130..WG197809-198301

main63381-20040iRT132,133,TT132..LB197809-198301

main63381-95500iRT132,TT132..HT197809-198112

63391TRIM, ROOF HEADLINING, FRONT

main63391-20040-05iRT13#,TT132..HT,SED197809-198008

BEIGE,BEIGE,TRIM4#

sub63391-20040

main63391-20040-08iRT130..LHD..DLX..LEF;RT132,TT132..SED..LHD..(DLX,GL)197809-198008

IVORY,IVORY,TRIM2#,3#

sub63391-20040

main63391-20040-08iTT13#..SED197809-198205

IVORY,IVORY,TRIM2#,3#,4#

sub63391-20040

main63391-20050-05iRT130..LNK;TT132..LHD..STD..LNK;RT13#..SED..LHD..STD..LEF197809-198101

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub63391-20050

main63391-20050-05iRT130..LNK;TT132..LHD..STD..LNK;RT13#..SED..LHD..STD..LEF197809-198101

BEIGE,BEIGE,TRIM4#

sub63391-20050

main63391-20050-08iRT130..LNK;TT132..LHD..STD..LNK;RT13#..SED..LHD..STD..LEF197809-198008

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

sub63391-20050

main63391-20050-08iRT13#,TT13#,XT130..SED198008-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

sub63391-20050

main63391-20050-08iRT130,132,TT13#,XT130..WG197809-198301

IVORY,IVORY,TRIM2#,4#

sub63391-20050

main63391-20060-05iRT132,TT132..LB197809-198008

BEIGE,BEIGE,TRIM4#

sub63391-20060

main63391-20060-08iRT132,133,TT132..LB197809-198301

IVORY,IVORY,TRIM2#,3#,4#

sub63391-20060

63392TRIM, ROOF HEADLINING, REAR

main63305-20020-05iRT130..LHD..DLX..LEF;RT132,TT132..SED..LHD..(DLX,GL)197809-198008

BEIGE,BEIGE,TRIM4#

main63305-20020-05iXT130..LNK198008-198101

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

main63305-20020-08iRT130..SED..RHD..LEF;RT132,TT132..SED..RHD197809-198008

IVORY,IVORY,TRIM2#,3#

main63305-20020-08iRT13#,TT13#,XT130..SED198008-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

main63305-20020-08iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

main63305-20030-05iXT130;TT133..RHD..5F;TT133..LHD..4F..DLX;TT133..RHD..STD..LNK197809-198008

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub63305-20020

main63305-20030-08iRT130..LNK;TT132..LHD..STD..LNK;RT13#..SED..LHD..STD..LEF197809-198008

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

sub63305-20020

main63305-95501-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main63305-95501-08iRT132,TT132..HT197809-198112

IVORY,IVORY,TRIM2#,3#,4#

main63392-20050-05iRT132,TT132..LB197809-198008

BEIGE,BEIGE,TRIM4#

sub63392-20050

main63392-20050-08iRT132,133,TT132..LB197809-198301

IVORY,IVORY,TRIM2#,3#,4#

sub63392-20050

main63392-91255-05iXT130..LEF197809-198101

RH,BEIGE,BEIGE,TRIM4#

sub63392-91255

main63392-91255-08iRT130,132,TT13#,XT130..WG197809-198301

RH,IVORY,IVORY,TRIM2#,4#

sub63392-91255

main63396-91255-05iXT130..LEF197809-198101

CTR,BEIGE,BEIGE,TRIM4#

main63396-91255-08iRT130,132,TT13#,XT130..WG197809-198301

CTR,IVORY,IVORY,TRIM2#,4#

main63397-91255-05iXT130..LEF197809-198101

LH,BEIGE,BEIGE,TRIM4#

sub63397-91255

main63397-91255-08iRT130,132,TT13#,XT130..WG197809-198301

LH,IVORY,IVORY,TRIM2#,4#

sub63397-91255

9046804008

main90468-04008

9354014010

main93540-14010

9354014012

main93540-14012

18 parts on this diagram · 3 diagrams in section
