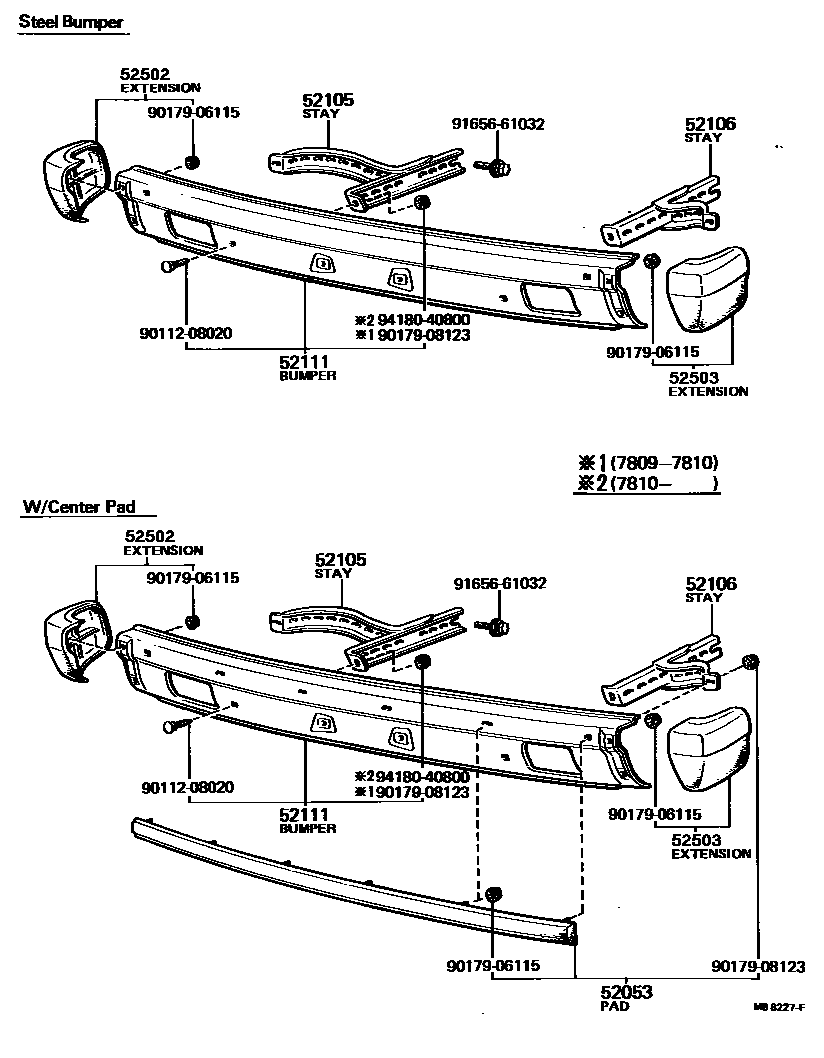

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0006 1

52053PAD SUB-ASSY, FRONT BUMPER

main52051-29045iRT13#,TT13#,XT130..ARL,EUR,GEN¥9,600197809-198111

main52051-29075iRT13#,TT13#..LB,SED¥22,500198008-198301

main52051-29085iRT130,132,TT13#..WG198008-198205

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-20060iRT13#,TT13#,XT130¥3,780197809-198111

main52011-20080iRT13#,TT13#..LB,SED,WG¥4,540198008-198301

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-20040iXT130¥3,780197809-198111

main52012-20060iRT13#,TT13#..LB,SED,WG¥4,540198008-198301

52111BUMPER ASSY, FRONT

main52111-29355iXT130¥30,500197809-198111

sub52111-29495¥30,600

main52111-29365iRT13#,TT13#,XT130..ARL,EUR,GEN¥29,100197809-198111

W/PAD

sub52111-20210¥28,800

main52111-29375iTT132..LHD..EUR¥27,500197809-198008

W/HEAD LAMP CLEANER & PAD

sub52111-20220

main52111-29425iRT130,132,TT13#..STD¥29,100198008-198205

sub52111-20230¥27,600

main52111-29435iRT13#,TT13#..LB,SED¥27,600198008-198301

W/PAD

sub52111-20240¥29,700

main52111-29445iRT130,132,TT13#..WG¥31,200198008-198205

W/PAD

sub52111-91255

52502EXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-29045iRT13#,TT13#,XT130¥9,300197809-198111

main52102-29085iRT13#,TT13#..LB,SED,WG¥13,600198008-198301

52503EXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-29145iRT13#,TT13#,XT130¥9,300197809-198111

main52103-29165iRT13#,TT13#..LB,SED,WG¥13,600198008-198301

9011208020

main90112-08020¥230

9017906115

main90179-06115¥120

9017908123

main90179-08123¥160

9165661032

main91656-61032¥180

9418040800

main94180-40800¥150

11 parts on this diagram · 4 diagrams in section
