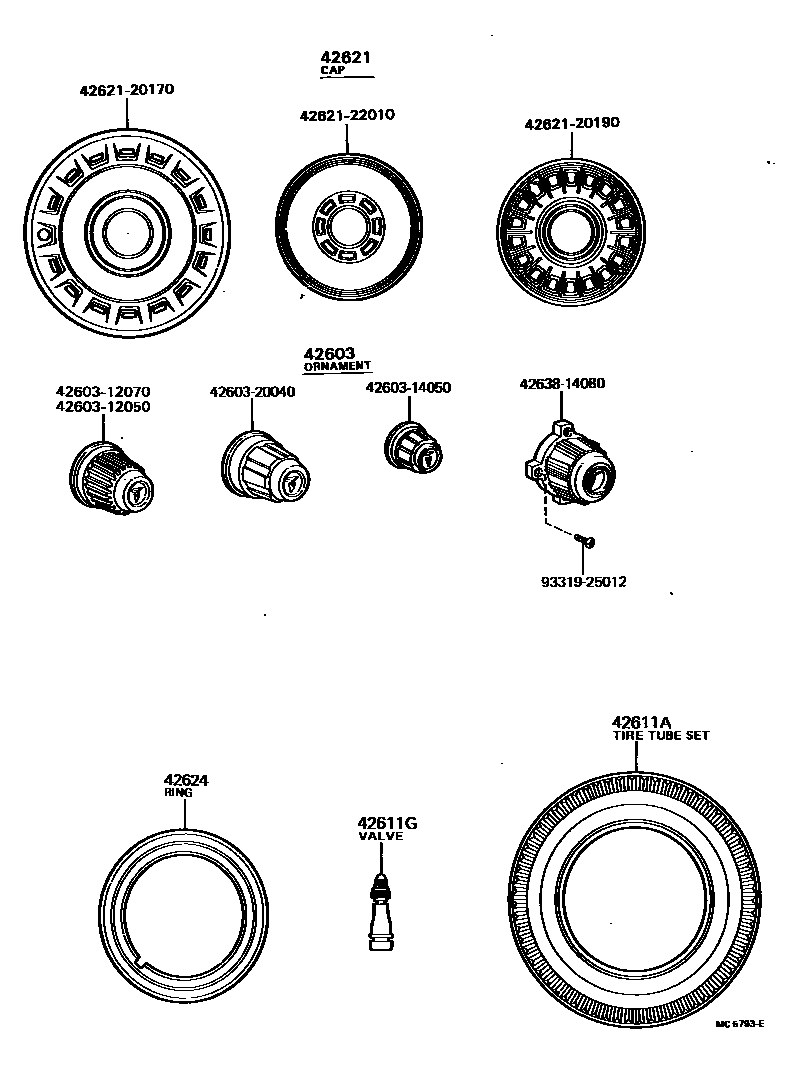

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050×4iTT132..LEF198008-198112

main42603-12070×4iRT132,TT13#..(HT,LB,SED)..GEN197809-198008

main42603-14050×4iRT133,XT130198202-198301

sub42603-22100

main42603-20040×4iRT133..GL198108-198112

sub42603-22100

main42638-14080×4iRT133,XT130..STD198111-198301

W/ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-14100×4iRT132197908-198005

175SR 14,T/L

main42652-14110iTT132197809-198112

165SR14,T/L,STEEL

main42652-20130×4iRT132198005-198108

175SR 14,T/L

main42652-22090×4iRT130,132,TT13#197809-198205

6.45-13-4,BLACK,T/L

main42652-22240×4iTT132197809-198112

175SR14,T/L,STEEL

main42652-22280×4iRT133198108-198112

185/70SR14

main98011-56132×4iTT133198008-198112

5.60-13-4,BLACK,W/T

main98011-56133×4iTT133198008-198112

5.60-13-6,BLACK,W/T

main98021-64133×4iRT130,132,TT13#197809-198205

6.45-13-6,BLACK,W/T

main98511-56132×4iTT133198008-198112

5.60-13-4,BLACK,T/L

main98511-56133×4iRT130,TT132197809-198008

5.60-13-6,BLACK,T/L

main98511-64133×4iRT130,132,TT13#197809-198205

6.45-13-6,BLACK,T/L

main98921-64132×4iRT130,132,TT13#197809-198205

6.45-13-4,BLACK,W/T

main98938-65130×4iRT130,132,TT13#197809-198205

165SR13,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iRT13#,TT13#197809-198205

42621CAP, WHEEL

main42621-20170×4iRT13#,TT132..GEN197809-198008

main42621-20190×4iRT130,132,TT13#..GEN,PHL198008-198205

main42621-22010×4iRT130,TT133..STD..GEN197809-198008

W/4J-13

sub42621-22011

42624RING, WHEEL CAP

main42624-14030×4iRT132..ARL197908-198108

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070

4260314050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050

4260320040ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20040

4262120170CAP, WHEEL

main42621-20170

4262120190CAP, WHEEL

main42621-20190

4262122010CAP, WHEEL

main42621-22010

4263814080

main42638-14080

9331925012

main93319-25012

14 parts on this diagram · 2 diagrams in section
