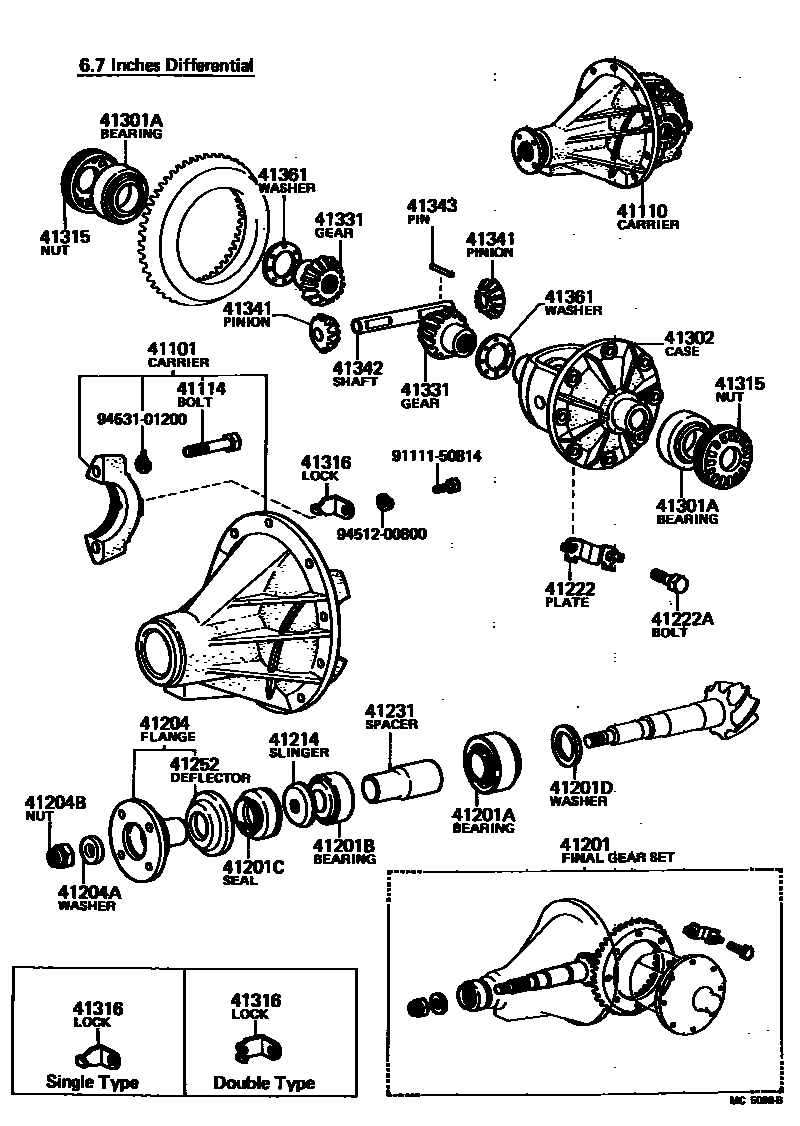

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-20020iRT133..GL;RT130,132,TT13#..HT,LB,SED198008-198205

sub41101-20021

sub41204-48020

main41101-22010iRT13#,TT13#..HT,LB,SED197809-198008

main41101-30010iRT130,132,TT13#..WG197809-198205

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20180iRT130..SED..GEN197809-197908

R=41:10=4.100,*AXC=T292

main41110-20181iRT132..3FC198008-198108

R=41:10=4.100,*AXC=T292

main41110-20190iRT130..SED197809-198008

R=41:11=3.727,*AXC=T302

main41110-20191iTT132..LHD..3FC..LNK..GEN198008-198112

R=41:11=3.727,*AXC=T302

main41110-20200iRT132..5F197908-198008

R=43:11=3.909,*AXC=T312

main41110-20201iRT132..5F198008-198108

R=43:11=3.909,*AXC=T312

main41110-20241iRT132,TT132..WG197809-198205

*FGR=41:10=4.100,R=41:10=4.100,*AXC=E292

main41110-20260iTT133..SED..LHD197908-198008

R=43:10=4.300,*AXC=T282

sub41110-20261

main41110-21020iRT130,TT133..WG197809-198112

*FGR=43:10=4.300,R=43:10=4.300,*AXC=E282

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12371×4iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

*12-1,25PX54-24

sub90105-12114

main90101-12376×4iRT130,132,TT13#..WG197809-198205

*12-1,25PX60-24

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29196iRT130..SED..GEN197809-197908

N=41:10

sub41201-29197

main41201-29206iRT130..SED..LHD..LEF..GEN197809-197908

N=43:10

sub41201-29207

main41201-29215iRT130,TT133..WG197809-198008

N=43:10

main41201-29216iRT130,TT133..WG198008-198112

N=43:10

sub41201-29217

main41201-29226iTT132..LHD..3FC..LNK..GEN198008-198112

N=41:11

sub41201-29227

main41201-29236iRT132,TT13#..(HT,LB,SED)..GEN197809-198205

N=43:11

sub41201-29237

main41201-39217iRT132,TT132..WG197809-198008

N=41:10

main41201-39218iRT132,TT132..WG198008-198205

*FGR=41:10=4.100,N=41:10

sub41201-39555

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90368-34049iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

sub90366-34019

main97609-32307iRT132,TT13#..WG197809-198205

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iRT132,TT13#..WG197812-198205

main90368-30002iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main97609-30306iRT132,TT132..WG197809-197812

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38015iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main90311-38133iRT130,132,TT13#..WG197809-198205

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iRT133..GL;RT130,132,TT13#197809-198205

T=2.36,MARK 05,T=2.35-2.37

main90201-35397iRT133..GL;RT130,132,TT13#197809-198205

T=2.39,MARK 06,T=2.38-2.40

main90201-35398iRT133..GL;RT130,132,TT13#197809-198205

T=2.42,MARK 07,T=2.41-2.43

main90201-35399iRT133..GL;RT130,132,TT13#197809-198205

T=2.43,MARK 08,T=2.44-2.46

main90201-35400iRT133..GL;RT130,132,TT13#197809-198205

T=2.48,MARK 09,T=2.47-2.49

main90201-35401iRT133..GL;RT130,132,TT13#197809-198205

T=2.51,MARK 10,T=2.50-2.52

main90201-35402iRT133..GL;RT130,132,TT13#197809-198205

T=2.54,MARK 11,T=2.53-2.55

main90201-35403iRT133..GL;RT130,132,TT13#197809-198205

T=2.57,MARK 12,T=2.56-2.58

main90201-35404iRT133..GL;RT130,132,TT13#197809-198205

T=2.60,MARK 13,T=2.59-2.61

main90201-35434iRT130,132,TT13#..WG197809-198205

T=2.24,MARK 01,T=2.23-2.25

sub90201-35515

main90201-35435iRT133..GL;RT130,132,TT13#197809-198205

T=2.27,MARK 02,T=2.26-2.28

sub90201-35516

main90201-35436iRT133..GL;RT130,132,TT13#197809-198205

T=2.30,MARK 03,T=2.29-2.31

sub90201-35517

main90201-35437iRT133..GL;RT130,132,TT13#197809-198205

T=2.33,MARK 04,T=2.32-2.34

sub90201-35518

main90201-35438iRT133..GL;RT130,132,TT13#197809-198205

T=2.63,MARK 14,T=2.62-2.64

main90201-35439iRT133..GL;RT130,132,TT13#197809-198205

T=2.66,MARK 15,T=2.65-2.67

main90201-35440iRT133..GL;RT130,132,TT13#197809-198205

T=2.69,MARK 16,T=2.68-2.70

main90201-35441iRT130,132,TT13#..WG197809-198205

T=2.72,MARK 17,T=2.71-2.73

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20020iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main41204-20030iRT130,132,TT13#..WG197809-198205

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iRT133..GL;RT130,132,TT13#197809-198205

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main90179-18060iRT13#,TT13#..WG197809-198008

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-20020iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main41214-30021iRT130,132,TT13#..WG197809-198205

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-30030iRT133..GL;RT130,132,TT13#197809-198205

sub41222-28010

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×8iRT133..GL;RT130,132,TT13#197809-198205

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main41231-22020iRT130,132,TT13#..WG197809-198205

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-22010iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main41252-30010iRT130,132,TT13#..WG197809-198205

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-41050×2iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main90368-45066×2iRT132,TT13#..WG197809-198205

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-30021iRT13#,TT13#..WG197809-198008

main41311-22030iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

sub41311-22031

sub41351-12030

main41311-30022iRT130,132,TT13#..WG198008-198205

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-22011×2iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main41315-30010×2iRT130,132,TT13#..WG197809-198205

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-22011×2iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

SINGLE TYPE

main41316-30010×2iRT130,132,TT13#..WG197809-198205

SINGLE TYPE

main41317-22011×2iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

DOUBLE TYPE

main41317-30010×2iRT130,132,TT13#..WG197809-198205

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-22020×2iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

N=15

main41331-30020×2iRT13#,TT13#..WG197809-198008

N=16

main41331-30021×2iRT130,132,TT13#..WG198008-198205

N=16

sub41331-22070

41341PINION, REAR DIFFERENTIAL

main41341-22020×2iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

N=10

sub41341-12030

main41341-30010×2iRT13#,TT13#..WG197809-198008

N=10

main41341-30011×2iRT130,132,TT13#..WG198008-198205

N=10

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22010iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main41342-39015iRT130,132,TT13#..WG197809-198205

sub41342-30011

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-04193iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198205

main90250-06058iRT130,132,TT13#..WG197809-198205

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020×2iRT13#,TT13#..HT,LB,SED197809-198008

T=1.00,MARK 02,T=0.98-1.02

main41361-22030×2iRT13#,TT13#..HT,LB,SED197809-198008

T=1.10,MARK 03,T=1.08-1.12

main41361-22040×2iRT133..GL;RT130,132,TT13#198008-198205

T=1.20,MARK 04,T=1.18-1.22

main41361-22140×2iRT13#,TT13#..HT,LB,SED197809-198008

T=0.95,MARK 14,T=0.93-0.97

main41361-22150×2iRT133..GL;RT130,132,TT13#198008-198205

T=1.05,MARK 15,T=1.03-1.07

main41361-22160×2iRT133..GL;RT130,132,TT13#198008-198205

T=1.15,MARK 16,T=1.13-1.17

main41361-30020×2iRT13#,TT13#..WG197809-198008

T=1.4-1.5

main41362-30020×2iRT13#,TT13#..WG197809-198008

T=1.5-1.6

main41363-30010×2iRT13#,TT13#..WG197809-198008

T=1.6-1.7

main41364-30010×2iRT13#,TT13#..WG197809-198008

T=1.7-1.8

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

28 parts on this diagram · 3 diagrams in section
