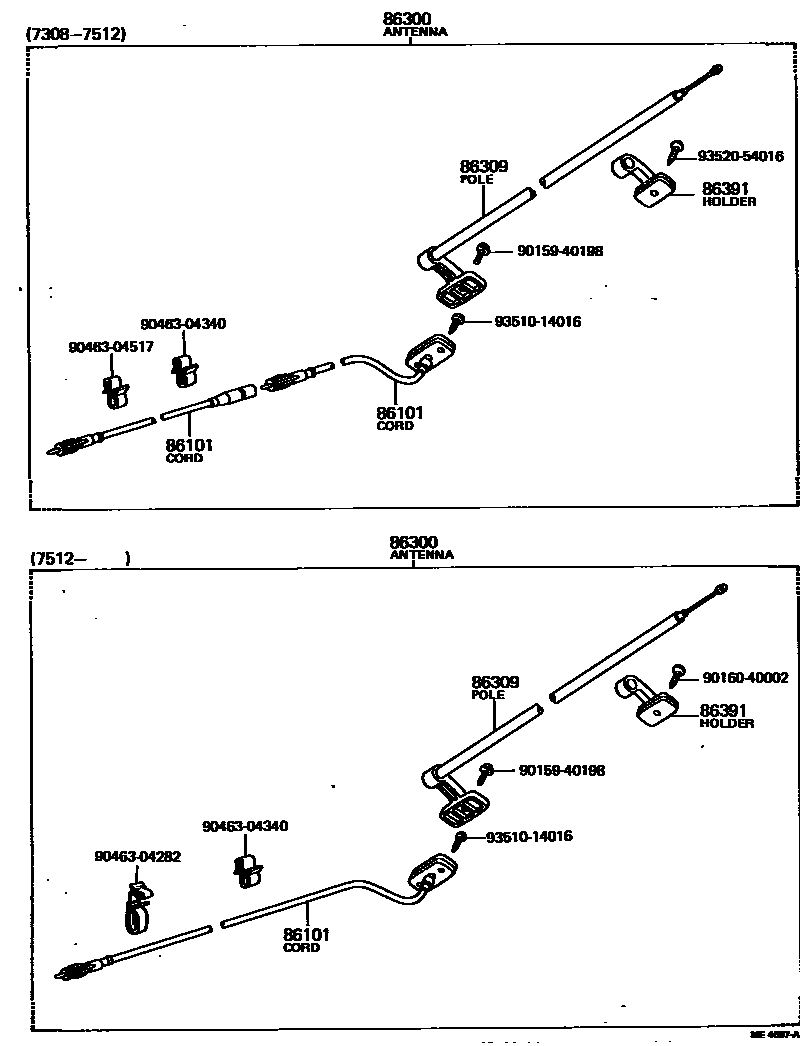

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-20010iRT114,118..EUR,GEN197408-197512

L=450

main86101-20011iRT102,104197512-197610

L=1200

main86101-20030iRT114,118..EUR,GEN197408-197512

L=1200

86300ANTENNA ASSY, W/HOLDER

main86300-29025iRT100,104,114,116,118..RHD197610-197905

main86300-29035iRT100,104,11#..LHD197701-197712

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-20010iRT100,112,116,117..RHD197308-197504

main86309-20011iRT100,112,114,116,117,118..RHD197504-197610

main86309-20020iRT10#,110,112,116,117..LHD197308-197504

main86309-20021iRT100,104,11#..LHD197701-197712

86391HOLDER, ANTENNA

main86391-20060iRT102,104..4D197308-197504

main86391-20061iRT100,104,11#..ARL,EUR,GEN,PHL197610-197701

9015940198

main90159-40198

9016040002

main90160-40002

9046304282

main90463-04282

9046304340

main90463-04340

9046304517

main90463-04517

9351014016

main93510-14016

9352054016

main93520-54016

11 parts on this diagram · 1 diagram in section
