SPEAKER

0001 1 0002 1 0003 1 0004 1

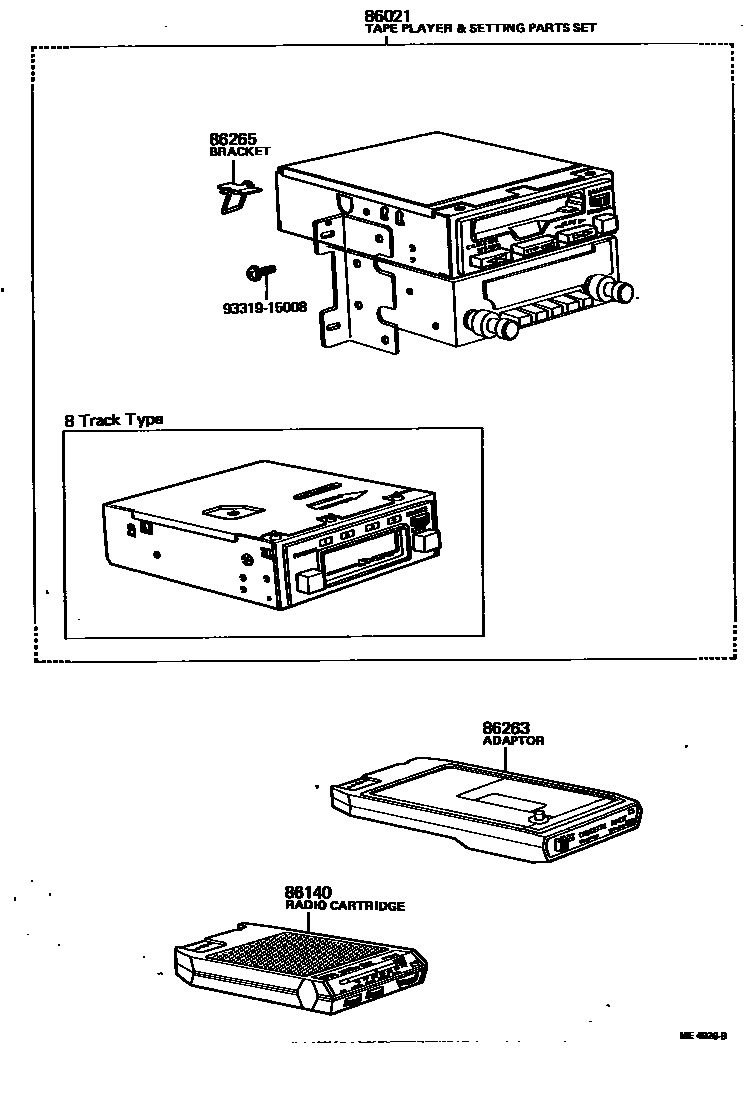

86021TAPE PLAYER AND SETTING PARTS SET

main86021-29015iRT10#,112,114,116,117,118..EUR,GEN197308-197701

8TRACK TYPE

main86021-29025iRT10#,112,114,116,117,118..EUR,GEN197308-197701

CASSETTE TYPE

main86021-29055iRT100,104,11#..EUR,GEN197701-197710

CASSETTE TYPE

main86021-29056iRT100,104,11#..GEN197710-197905

CASSETTE TYPE

86140RADIO CARTRIDGE ASSY, TAPE PLAYER (AM, FM STEREO PACK)

main86140-20020iRT10#,112,114,116,117,118..EUR,GEN197308-197701

86263ADAPTER, TAPE PLAYER CARTRIDGE(FOR CASSETTE PACK)

main86263-20010iRT10#,112,114,116,117,118..EUR,GEN197308-197701

86265BRACKET, TAPE PLAYER, NO.1

main86239-20010iRT10#,112,114,116,117,118..EUR,GEN197308-197708

main86266-20010iRT100,104,11#..GEN197708-197905

9331915008

main93319-15008

5 parts on this diagram · 4 diagrams in section
