FRONT SEAT & SEAT TRACK

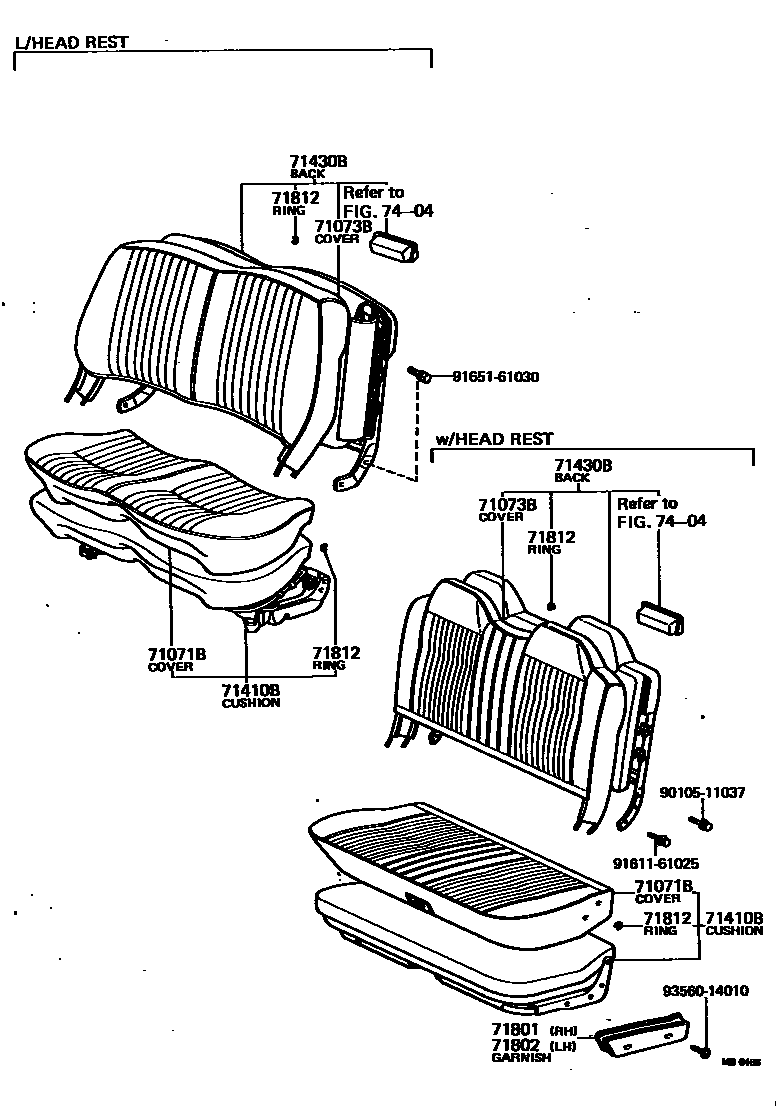

Parts diagram
71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71071-20360-01i197308-197701
VL.BLACK,BLACK,TRIM2#
main71071-20360-03i197308-197408
VL.GRAY,GRAY,TRIM1#
main71071-20360-04i197308-197408
VL.BLUE,BLUE,TRIM8#
main71071-20360-05i197408-197701
VL.BEIGE,BEIGE,TRIM4#
main71071-20360-06i197308-197701
VL.OLIVE-BROWN,BROWN,TRIM4#
main71071-20361-01i197701-197808
VL.BLACK,BLACK,TRIM2#
sub71071-20361
main71071-20361-03i197701-197808
VL.GRAY,GRAY,TRIM1#
sub71071-20361
main71071-20361-05i197701-197808
VL.BEIGE,BEIGE,TRIM4#
sub71071-20361
main71071-20370-01i197308-197701
FB.BLACK,BLACK,TRIM2#
main71071-20370-03i197308-197408
FB.GRAY,GRAY,TRIM1#
main71071-20370-04i197308-197408
FB.BLUE,BLUE,TRIM8#
main71071-20370-05i197408-197701
FB.BEIGE,BEIGE,TRIM4#
main71071-20370-06i197308-197701
FB.OLIVE-BROWN,BROWN,TRIM4#
main71071-20380-01i197308-197504
PF.BLACK,BLACK,TRIM2#
main71071-20380-01i197504-197701
PF,BLACK,BLACK,TRIM2#
main71071-20380-03i197308-197408
PF.GRAY,GRAY,TRIM1#
main71071-20380-04i197308-197408
PF.BLUE,BLUE,TRIM8#
main71071-20380-05i197408-197701
PF.BEIGE,BEIGE,TRIM4#
main71071-20380-06i197308-197701
PF.OLIVE-BROWN,BROWN,TRIM4#
main71071-20381-01i197701-197808
PF.BLACK,BLACK,TRIM2#
sub71071-20421
main71071-20381-03i197701-197808
PF.GRAY,GRAY,TRIM1#
sub71071-20421
main71071-20381-05i197701-197808
PF.BEIGE,BEIGE,TRIM4#
sub71071-20421
71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)
main71073-20340-01i197308-197408
VL.BLACK,BLACK,TRIM2#
sub71073-20341
main71073-20340-03i197308-197408
VL.GRAY,GRAY,TRIM1#
sub71073-20341
main71073-20340-04i197308-197408
VL.BLUE,BLUE,TRIM8#
sub71073-20341
main71073-20340-06i197308-197408
VL.OLIVE-BROWN,BROWN,TRIM4#
sub71073-20341
main71073-20341-01i197408-197701
VL.BLACK,BLACK,TRIM2#
main71073-20341-05i197408-197701
VL.BEIGE,BEIGE,TRIM4#
main71073-20341-06i197408-197701
VL.OLIVE-BROWN,BROWN,TRIM4#
main71073-20342-01i197701-197808
VL.BLACK,BLACK,TRIM2#
sub71073-20342
main71073-20342-03i197701-197808
VL.GRAY,GRAY,TRIM1#
sub71073-20342
main71073-20342-05i197701-197808
VL.BEIGE,BEIGE,TRIM4#
sub71073-20342
main71073-20350-01i197308-197408
FB.BLACK,BLACK,TRIM2#
sub71073-20351
main71073-20350-03i197308-197408
FB.GRAY,GRAY,TRIM1#
sub71073-20351
main71073-20350-04i197308-197408
FB.BLUE,BLUE,TRIM8#
sub71073-20351
main71073-20350-06i197308-197408
FB.OLIVE-BROWN,BROWN,TRIM4#
sub71073-20351
main71073-20351-01i197408-197701
FB.BLACK,BLACK,TRIM2#
main71073-20351-05i197408-197701
FB.BEIGE,BEIGE,TRIM4#
main71073-20351-06i197408-197701
FB.OLIVE-BROWN,BROWN,TRIM4#
main71073-20360-01i197308-197408
PF.BLACK,BLACK,TRIM2#
sub71073-20361
main71073-20360-03i197308-197408
PF.GRAY,GRAY,TRIM1#
sub71073-20361
main71073-20360-04i197308-197408
PF.BLUE,BLUE,TRIM8#
sub71073-20361
main71073-20360-06i197308-197408
PF.OLIVE-BROWN,BROWN,TRIM4#
sub71073-20361
main71073-20361-01i197408-197701
PF.BLACK,BLACK,TRIM2#
main71073-20361-05i197408-197701
PF.BEIGE,BEIGE,TRIM4#
main71073-20361-06i197408-197701
PF.OLIVE-BROWN,BROWN,TRIM4#
main71073-20362-01i197701-197808
PF.W/HEAD REST,BLACK,BLACK,TRIM2#
main71073-20362-03i197701-197808
PF.W/HEAD REST,GRAY,GRAY,TRIM1#
main71073-20362-05i197701-197808
PF.W/HEAD REST,BEIGE,BEIGE,TRIM4#
main71073-20410-01i197504-197701
VL.BLACK,BLACK,TRIM2#
main71073-20410-06i197504-197701
VL.BROWN,BROWN,TRIM4#
main71073-20411-01i197701-197808
VL.BLACK,BLACK,TRIM2#
main71073-20411-03i197701-197808
VL.GRAY,GRAY,TRIM1#
main71073-20411-05i197701-197808
VL.BEIGE,BEIGE,TRIM4#
main71073-20420-01i197504-197701
PF.BLACK,BLACK,TRIM2#
main71073-20420-06i197504-197701
PF.BROWN,BROWN,TRIM4#
main71073-20421-01i197701-197808
PF.L/HEAD REST,BLACK,BLACK,TRIM2#
main71073-20421-03i197701-197808
PF.L/HEAD REST,GRAY,GRAY,TRIM1#
main71073-20421-05i197701-197808
PF.L/HEAD REST,BEIGE,BEIGE,TRIM4#
71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
main71410-20400-01i197308-197701
VL.BLACK,BLACK,TRIM2#
main71410-20400-03i197308-197408
VL.GRAY,GRAY,TRIM1#
main71410-20400-04i197308-197408
VL.BLUE,BLUE,TRIM8#
main71410-20400-05i197408-197701
VL.BEIGE,BEIGE,TRIM4#
main71410-20400-06i197308-197701
VL.OLIVE-BROWN,BROWN,TRIM4#
main71410-20410-01i197308-197701
FB.BLACK,BLACK,TRIM2#
main71410-20410-03i197308-197408
FB.GRAY,GRAY,TRIM1#
main71410-20410-04i197308-197408
FB.BLUE,BLUE,TRIM8#
main71410-20410-05i197408-197701
FB.BEIGE,BEIGE,TRIM4#
main71410-20410-06i197308-197701
FB.OLIVE-BROWN,BROWN,TRIM4#
main71410-20420-01i197308-197701
PF.BLACK,BLACK,TRIM2#
main71410-20420-03i197308-197408
PF.GRAY,GRAY,TRIM1#
main71410-20420-04i197308-197408
PF.BLUE,BLUE,TRIM8#
main71410-20420-05i197408-197701
PF.BEIGE,BEIGE,TRIM4#
main71410-20420-06i197308-197701
PF.OLIVE-BROWN,BROWN,TRIM4#
main71410-20421-01i197701-197808
PF.BLACK,BLACK,TRIM2#
main71410-20421-03i197701-197808
PF.GRAY,GRAY,TRIM1#
main71410-20421-05i197701-197808
PF.BEIGE,BEIGE,TRIM4#
main71410-20451-01i197701-197808
VL.BLACK,BLACK,TRIM2#
sub71410-20451
main71410-20451-03i197701-197808
VL.GRAY,GRAY,TRIM1#
sub71410-20451
main71410-20451-05i197701-197808
VL.BEIGE,BEIGE,TRIM4#
sub71410-20451
71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)
main71430-20380-01i197308-197408
VL.BLACK,BLACK,TRIM2#
sub71430-20381
main71430-20380-03i197308-197408
VL.GRAY,GRAY,TRIM1#
sub71430-20381
main71430-20380-04i197308-197408
VL.BLUE,BLUE,TRIM8#
sub71430-20381
main71430-20380-06i197308-197408
VL.OLIVE-BROWN,BROWN,TRIM4#
sub71430-20381
main71430-20381-01i197408-197701
VL.BLACK,BLACK,TRIM2#
main71430-20381-05i197408-197701
VL.BEIGE,BEIGE,TRIM4#
main71430-20381-06i197408-197701
VL.OLIVE-BROWN,BROWN,TRIM4#
main71430-20382-01i197701-197808
VL.BLACK,BLACK,TRIM2#
sub71430-20382
main71430-20382-03i197701-197808
VL.GRAY,GRAY,TRIM1#
sub71430-20382
main71430-20382-05i197701-197808
VL.BEIGE,BEIGE,TRIM4#
sub71430-20382
main71430-20390-01i197308-197408
FB.BLACK,BLACK,TRIM2#
sub71430-20391
main71430-20390-03i197308-197408
FB.GRAY,GRAY,TRIM1#
sub71430-20391
main71430-20390-04i197308-197408
FB.BLUE,BLUE,TRIM8#
sub71430-20391
main71430-20390-06i197308-197408
FB.OLIVE-BROWN,BROWN,TRIM4#
sub71430-20391
main71430-20391-01i197408-197701
FB.BLACK,BLACK,TRIM2#
main71430-20391-05i197408-197701
FB.BEIGE,BEIGE,TRIM4#
main71430-20391-06i197408-197701
FB.OLIVE-BROWN,BROWN,TRIM4#
main71430-20400-01i197308-197408
PF.BLACK,BLACK,TRIM2#
sub71430-20401
main71430-20400-03i197308-197408
PF.GRAY,GRAY,TRIM1#
sub71430-20401
main71430-20400-04i197308-197408
PF.BLUE,BLUE,TRIM8#
sub71430-20401
main71430-20400-06i197308-197408
PF.OLIVE-BROWN,BROWN,TRIM4#
sub71430-20401
main71430-20401-01i197408-197701
PF.BLACK,BLACK,TRIM2#
main71430-20401-05i197408-197701
PF.BEIGE,BEIGE,TRIM4#
main71430-20401-06i197408-197701
PF.OLIVE-BROWN,BROWN,TRIM4#
main71430-20402-01i197701-197808
PF.BLACK,BLACK,TRIM2#
main71430-20402-03i197701-197808
PF.GRAY,GRAY,TRIM1#
main71430-20402-05i197701-197808
PF.BEIGE,BEIGE,TRIM4#
main71430-20440-01i197504-197701
VL.BLACK,BLACK,TRIM2#
main71430-20440-06i197504-197701
VL.BROWN,BROWN,TRIM4#
main71430-20441-01i197701-197808
VL.BLACK,BLACK,TRIM2#
main71430-20441-03i197701-197808
VL.GRAY,GRAY,TRIM1#
main71430-20441-05i197701-197808
VL.BEIGE,BEIGE,TRIM4#
main71430-20450-01i197504-197701
PF.BLACK,BLACK,TRIM2#
main71430-20450-06i197504-197701
PF.BROWN,BROWN,TRIM4#
main71430-20451-01i197701-197808
PF.BLACK,BLACK,TRIM2#
main71430-20451-03i197701-197808
PF.GRAY,GRAY,TRIM1#
main71430-20451-05i197701-197808
PF.BEIGE,BEIGE,TRIM4#
71801GARNISH SUB-ASSY, FRONT SEAT CUSHION, RH
main71821-20050i197308-197509
FOR SEPARATE TYPE
main71821-20050-01i197509-197701
FOR SEPARATE TYPE,BLACK,BLACK,TRIM2#
sub71821-20050
main71821-20050-05i197509-197701
FOR SEPARATE TYPE,BEIGE,BEIGE,TRIM4#
sub71821-20050
main71821-20050-06i197509-197701
FOR SEPARATE TYPE,BROWN,BROWN,TRIM4#
sub71821-20050
main71821-20060i197308-197509
FOR BENCH TYPE
main71821-20060-01i197509-197701
FOR BENCH TYPE,BLACK,BLACK,TRIM2#
sub71821-20060
main71821-20060-05i197509-197701
FOR BENCH TYPE,BEIGE,BEIGE,TRIM4#
sub71821-20060
main71821-20060-06i197509-197701
FOR BENCH TYPE,BROWN,BROWN,TRIM4#
sub71821-20060
71802GARNISH SUB-ASSY, FRONT SEAT CUSHION, LH
main71822-20050i197308-197509
FOR SEPARATE TYPE
main71822-20050-01i197509-197701
FOR SEPARATE TYPE,BLACK,BLACK,TRIM2#
sub71822-20050
main71822-20050-05i197509-197701
FOR SEPARATE TYPE,BEIGE,BEIGE,TRIM4#
sub71822-20050
main71822-20050-06i197509-197701
FOR SEPARATE TYPE,BROWN,BROWN,TRIM4#
sub71822-20050
main71822-20060i197308-197509
FOR BENCH TYPE
main71822-20060-01i197509-197701
FOR BENCH TYPE,BLACK,BLACK,TRIM2#
sub71822-20060
main71822-20060-05i197509-197701
FOR BENCH TYPE,BEIGE,BEIGE,TRIM4#
sub71822-20060
main71822-20060-06i197509-197701
FOR BENCH TYPE,BROWN,BROWN,TRIM4#
sub71822-20060
71812CLIP (FOR FRONT SEAT CUSHION COVER)
main71812-30010i197308-197701
sub90468-18008
main90468-18071i197701-197905
sub90468-18008
7404
9010511037
main90105-11037
9161161025
main91611-61025
9165161030
main91651-61030
9356014010
main93560-14010

12 parts on this diagram · 3 diagrams in section
