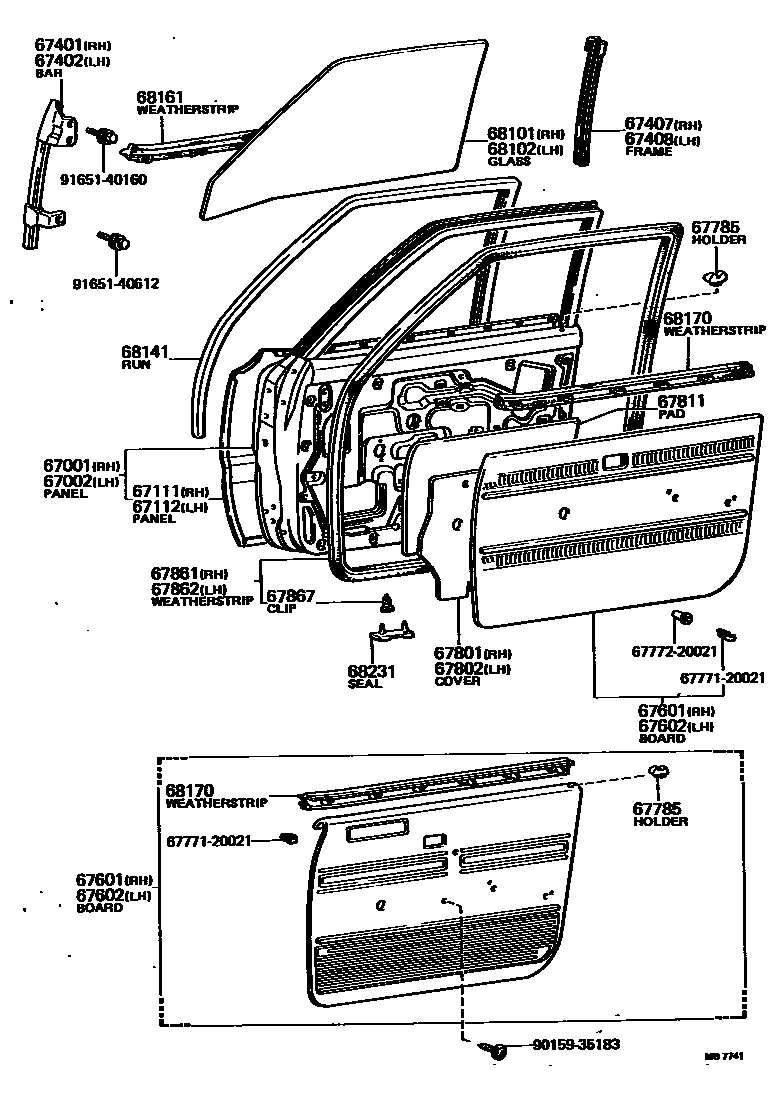

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20080iRT110,112,114197308-197603

main67001-20100iRT100,104,116,118..EUR,GEN,PHL197602-197701

sub67001-20101

main67001-20102iRT104..RHD197707-197808

main67001-20120iRT104,118..4D..ARL197308-197511

main67001-20121iRT102,104,118..ARL,SA197602-197612

main67001-20122iRT10#,116,118..RHD197707-197905

FOR OUTER BACK MIRROR

main67001-20150iRT104..2D197308-197411

main67001-20180iRT104,118..ARL197612-197701

main67001-20181iRT104,118..ARL197701-197905

main67001-95504iRT114..SA197603-197701

main67001-95505iRT114..SA197701-197808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20090iRT114..RHD197707-197808

main67002-20110iRT10#,116,117,118..4D197308-197511

main67002-20111iRT10#,116,118197511-197612

main67002-20112iRT102,104..RHD197707-197905

sub67002-20122

main67002-20140iRT104..2D197308-197411

main67002-20160iRT104,118..ARL197612-197701

main67002-20161iRT104,118..ARL197701-197905

main67002-20170iRT100..LHD..GEN;RT104,116,118..LHD197707-197905

main67002-95508iRT114..LHD197707-197808

67111PANEL, FRONT DOOR, OUTER RH

main67111-20060iRT110,112,114197308-197808

main67111-20070iRT10#,116,117,118197308-197701

main67111-20071iRT100,104,116,118197701-197905

67112PANEL, FRONT DOOR, OUTER LH

main67112-20090iRT110,112,114197308-197808

main67112-20110iRT10#,116,117,118197308-197701

main67112-20111iRT100,104,116,118197701-197905

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-20060iRT10#,116,117,118..4D197308-197701

main67401-20061iRT10#,116,118197701-197905

main67401-20070iRT104..2D197308-197411

main67410-20020iRT110,112,114197308-197808

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-20050iRT10#,116,117,118..4D197308-197701

main67402-20051iRT10#,116,118197701-197905

main67402-20060iRT104..2D197308-197411

main67420-20020iRT110,112,114197308-197808

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67407-20050iRT10#,116,117,118..4D197308-197905

main67407-20060iRT104..2D197308-197411

main67430-20020iRT110,112,114197308-197808

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67408-20040iRT10#,116,117,118..4D197308-197905

main67408-20050iRT104..2D197308-197411

main67440-20020iRT110,112,114197308-197808

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-20350-01iRT10#,116,117,118..STD..4D197308-197701

BLACK,BLACK,TRIM2#

main67610-20350-03iRT10#..STD..4D197308-197408

GRAY,GRAY,TRIM1#

main67610-20350-04iRT10#..STD..4D197308-197408

BLUE,BLUE,TRIM8#

main67610-20350-05iRT10#,116,117,118..STD..4D197408-197701

BEIGE,BEIGE,TRIM4#

main67610-20350-06iRT10#,116,117,118..STD..4D197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main67610-20351-01iRT10#,116,118..STD197701-197905

BLACK,BLACK,TRIM2#

main67610-20351-03iRT10#,116,118..STD197701-197905

GRAY,GRAY,TRIM1#

main67610-20351-05iRT10#,116,118..STD197701-197905

BEIGE,BEIGE,TRIM4#

main67610-20360-01iRT100..DLX197509-197701

BLACK,BLACK,TRIM2#

main67610-20360-03iRT100,104..DLX197308-197408

GRAY,GRAY,TRIM1#

main67610-20360-04iRT100,104..DLX197308-197408

BLUE,BLUE,TRIM8#

main67610-20360-05iRT100..DLX197509-197701

BEIGE,BEIGE,TRIM4#

main67610-20360-06iRT100..DLX197509-197701

BROWN,BROWN,TRIM4#

main67610-20361-01iRT100..DLX197701-197808

BLACK,BLACK,TRIM2#

main67610-20361-03iRT100..DLX197701-197808

GRAY,GRAY,TRIM1#

main67610-20361-05iRT100..DLX197701-197808

BEIGE,BEIGE,TRIM4#

main67610-20410-01iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197511

BLACK,BLACK,TRIM2#

main67610-20410-03iRT102..DLX197308-197408

GRAY,GRAY,TRIM1#

main67610-20410-04iRT102..DLX197308-197408

BLUE,BLUE,TRIM8#

main67610-20410-05iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197408-197511

BEIGE,BEIGE,TRIM4#

main67610-20410-06iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197511

OLIVE-BROWN,BROWN,TRIM4#

main67610-20411-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

BLACK,BLACK,TRIM2#

main67610-20411-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

BEIGE,BEIGE,TRIM4#

main67610-20411-06iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

OLIVE-BROWN,BROWN,TRIM4#

main67610-20412-01iRT104..DLX197701-197905

BLACK,BLACK,TRIM2#

main67610-20412-03iRT104..DLX197701-197905

GRAY,GRAY,TRIM1#

main67610-20412-05iRT104..DLX197701-197905

BEIGE,BEIGE,TRIM4#

main67610-20430-01iRT104..2D197308-197411

BLACK,BLACK,TRIM2#

main67610-20430-03iRT104..2D197308-197408

GRAY,GRAY,TRIM1#

main67610-20430-04iRT104..2D197308-197408

BLUE,BLUE,TRIM8#

main67610-20430-05iRT104..2D197408-197411

BEIGE,BEIGE,TRIM4#

main67610-20430-06iRT104..2D197308-197411

OLIVE-BROWN,BROWN,TRIM4#

main67610-20450-01iRT110,112,114197407-197511

BLACK,BLACK,TRIM2#

main67610-20450-05iRT110,112,114197407-197511

BEIGE,BEIGE,TRIM4#

main67610-20450-06iRT110,112,114197407-197511

OLIVE-BROWN,BROWN,TRIM4#

main67610-20450-11iRT112,114197308-197407

BLACK,BLACK,TRIM2#

main67610-20450-13iRT112,114197308-197407

GRAY,GRAY,TRIM1#

main67610-20450-14iRT112,114197308-197407

BLUE,BLUE,TRIM8#

main67610-20450-16iRT112,114197308-197407

OLIVE-BROWN,BROWN,TRIM4#

main67610-95515-01iRT110,114197511-197701

BLACK,BLACK,TRIM2#

main67610-95515-05iRT110,114197511-197701

BEIGE,BEIGE,TRIM4#

main67610-95515-06iRT110,114197511-197701

OLIVE-BROWN,BROWN,TRIM4#

main67610-95525-01iRT114197701-197808

BLACK,BLACK,TRIM2#

main67610-95525-03iRT114197701-197808

GRAY,GRAY,TRIM1#

main67610-95525-05iRT114197701-197808

BEIGE,BEIGE,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-20310-01iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197511

BLACK,BLACK,TRIM2#

main67620-20310-03iRT102..DLX197308-197408

GRAY,GRAY,TRIM1#

main67620-20310-04iRT102..DLX197308-197408

BLUE,BLUE,TRIM8#

main67620-20310-05iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197408-197511

BEIGE,BEIGE,TRIM4#

main67620-20310-06iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197511

OLIVE-BROWN,BROWN,TRIM4#

main67620-20311-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

BLACK,BLACK,TRIM2#

main67620-20311-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

BEIGE,BEIGE,TRIM4#

main67620-20311-06iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

OLIVE-BROWN,BROWN,TRIM4#

main67620-20312-01iRT104..DLX197701-197905

BLACK,BLACK,TRIM2#

main67620-20312-03iRT104..DLX197701-197905

GRAY,GRAY,TRIM1#

main67620-20312-05iRT104..DLX197701-197905

BEIGE,BEIGE,TRIM4#

main67620-20330-01iRT10#,116,117,118..STD..4D197308-197701

BLACK,BLACK,TRIM2#

main67620-20330-03iRT10#..STD..4D197308-197408

GRAY,GRAY,TRIM1#

main67620-20330-04iRT10#..STD..4D197308-197408

BLUE,BLUE,TRIM8#

main67620-20330-05iRT10#,116,117,118..STD..4D197408-197701

BEIGE,BEIGE,TRIM4#

main67620-20330-06iRT10#,116,117,118..STD..4D197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main67620-20331-01iRT10#,116,118..STD197701-197905

BLACK,BLACK,TRIM2#

main67620-20331-03iRT10#,116,118..STD197701-197905

GRAY,GRAY,TRIM1#

main67620-20331-05iRT10#,116,118..STD197701-197905

BEIGE,BEIGE,TRIM4#

main67620-20340-01iRT100..DLX197509-197701

BLACK,BLACK,TRIM2#

main67620-20340-03iRT100,104..DLX197308-197408

GRAY,GRAY,TRIM1#

main67620-20340-04iRT100,104..DLX197308-197408

BLUE,BLUE,TRIM8#

main67620-20340-05iRT100..DLX197509-197701

BEIGE,BEIGE,TRIM4#

main67620-20340-06iRT100..DLX197509-197701

BROWN,BROWN,TRIM4#

main67620-20341-01iRT100..DLX197701-197808

BLACK,BLACK,TRIM2#

main67620-20341-03iRT100..DLX197701-197808

GRAY,GRAY,TRIM1#

main67620-20341-05iRT100..DLX197701-197808

BEIGE,BEIGE,TRIM4#

main67620-20400-01iRT104..2D197308-197411

BLACK,BLACK,TRIM2#

main67620-20400-03iRT104..2D197308-197408

GRAY,GRAY,TRIM1#

main67620-20400-04iRT104..2D197308-197408

BLUE,BLUE,TRIM8#

main67620-20400-05iRT104..2D197408-197411

BEIGE,BEIGE,TRIM4#

main67620-20400-06iRT104..2D197308-197411

OLIVE-BROWN,BROWN,TRIM4#

main67620-20500-01iRT110,112,114197407-197511

BLACK,BLACK,TRIM2#

main67620-20500-05iRT110,112,114197407-197511

BEIGE,BEIGE,TRIM4#

main67620-20500-06iRT110,112,114197407-197511

OLIVE-BROWN,BROWN,TRIM4#

main67620-20500-11iRT112,114197308-197407

BLACK,BLACK,TRIM2#

main67620-20500-13iRT112,114197308-197407

GRAY,GRAY,TRIM1#

main67620-20500-14iRT112,114197308-197407

BLUE,BLUE,TRIM8#

main67620-20500-16iRT112,114197308-197407

OLIVE-BROWN,BROWN,TRIM4#

main67620-95508-01iRT110,114197511-197701

BLACK,BLACK,TRIM2#

main67620-95508-05iRT110,114197511-197701

BEIGE,BEIGE,TRIM4#

main67620-95508-06iRT110,114197511-197701

OLIVE-BROWN,BROWN,TRIM4#

main67620-95515-01iRT114197701-197808

BLACK,BLACK,TRIM2#

main67620-95515-03iRT114197701-197808

GRAY,GRAY,TRIM1#

main67620-95515-05iRT114197701-197808

BEIGE,BEIGE,TRIM4#

67785HOLDER, FRONT DOOR LOCKING BUTTON COLLAR

main67785-20010×2iRT102,104..SA197308-197511

HOLE SIZE 10X22 SEMI TRIM

main67785-22010×2iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197512

FULL TRIM

main69751-20030×2iRT102,104..SA197511-197701

SEMI TRIM

sub69751-20031

main69751-20040×2iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197512-197808

FULL TRIM

main69751-20050×2iRT102,104..SA197308-197511

HOLE SIZE 13X25 SEMI TRIM

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-20110iRT10#,116,117,118..4D197308-197507

main67831-20120iRT104..2D197308-197411

sub67831-20121

main67831-20170iRT10#,116,117,118197507-197607

main67831-20171iRT10#,116,118197607-197905

main67831-95502iRT110,112,114197308-197808

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-20110iRT10#,116,117,118..4D197308-197507

main67831-20120iRT104..2D197308-197411

sub67831-20121

main67831-20170iRT10#,116,117,118197507-197607

main67831-20171iRT10#,116,118197607-197905

main67831-95502iRT110,112,114197308-197808

67811PAD, FRONT DOOR SILENCER

main67811-12020×2iRT110,112,114197308-197701

sub67811-12010

main67811-20050×2iRT10#,116,117,118..4D197308-197905

sub67811-12010

main67811-20060×2iRT104..2D197308-197411

sub67811-12010

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20070iRT110,112,114197308-197808

main67861-20090iRT10#,116,117,118..4D197308-197905

main67861-20100iRT104..2D197308-197411

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20070iRT110,112,114197308-197808

main67862-20090iRT10#,116,117,118..4D197308-197905

main67862-20100iRT104..2D197308-197411

67867CLIP, DOOR WEATHERSTRIP

main67867-12020×40iRT10#,116,117,118197308-197905

main67868-30030×12iRT110,112,114197308-197808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20140iRT100197308-197509

TN.TP.T=4.0

main68111-20141iRT100,104..EUR,GEN,SA197701-197905

TN.TP.T=4.0

main68111-20150iRT10#..STD..4D197308-197504

TP.T=5.0

sub68171-22020

sub69901-20070

main68111-20151iRT10#,116,118..STD197509-197701

TP.T=4.0

main68111-20152iRT10#,116,118..STD197701-197905

TP.T=4.0

main68111-20160iRT104..2D197308-197411

TP.T=4.0

sub68111-20170

main68111-20180iRT110,112,114197308-197808

TN.TP.T=5.0

main68111-21010iRT116,117,118197308-197504

TP.T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20060iRT100197308-197509

TN.TP.T=4.0

main68112-20061iRT100,104..EUR,GEN,SA197701-197905

TN.TP.T=4.0

main68112-20070iRT104..ARL197504-197509

TP.T=5.0

sub68171-22020

sub69901-20070

main68112-20071iRT100,102,116,117,118..STD197504-197509

TP.T=4.0

main68112-20072iRT10#,116,118..STD197701-197905

TP.T=4.0

main68112-20080iRT104..2D197308-197411

TP.T=4.0

sub68112-20090

main68112-20100iRT110,112,114197308-197808

TN.TP.T=5.0

main68112-21010iRT116,117,118197308-197504

TP.T=4.0

68141RUN, FRONT DOOR GLASS

main68141-20030×2iRT10#,116,117,118..4D197308-197701

main68141-20040×2iRT104..2D197308-197411

main68141-20051iRT10#,116,118197701-197905

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-20030iRT10#,116,118..STD197509-197701

RH.

main68160-20031iRT10#,116,118..STD197701-197905

RH.

main68210-20020iRT100,102,116,117,118..STD197308-197509

LH.

main68210-20021×2iRT10#,116,118..STD197701-197905

LH.

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-20050iRT110,112,114197308-197808

RH.

main68170-20060iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197701

RH.

main68170-20061iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

main68170-20070iRT104..4F..SA;RT102,104,116,117,118..STD..4D197308-197701

RH.

main68170-20071iRT100,116,118197701-197905

RH.

main68170-20080×2iRT104..2D197308-197411

main68220-20020iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197701

LH.

main68220-20030iRT104..4F..SA;RT102,104,116,117,118..STD..4D197308-197701

LH.

main68220-20031iRT100,116,118197701-197905

LH.

main68220-20040iRT110,112,114197308-197808

LH.

68231SEAL, FRONT DOOR DRAIN HOLE DUST

main68231-30020×4iRT10#,11#197308-197905

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9015935183

main90159-35183

9165140160

main91651-40160

9165140612

main91651-40612

28 parts on this diagram · 2 diagrams in section
