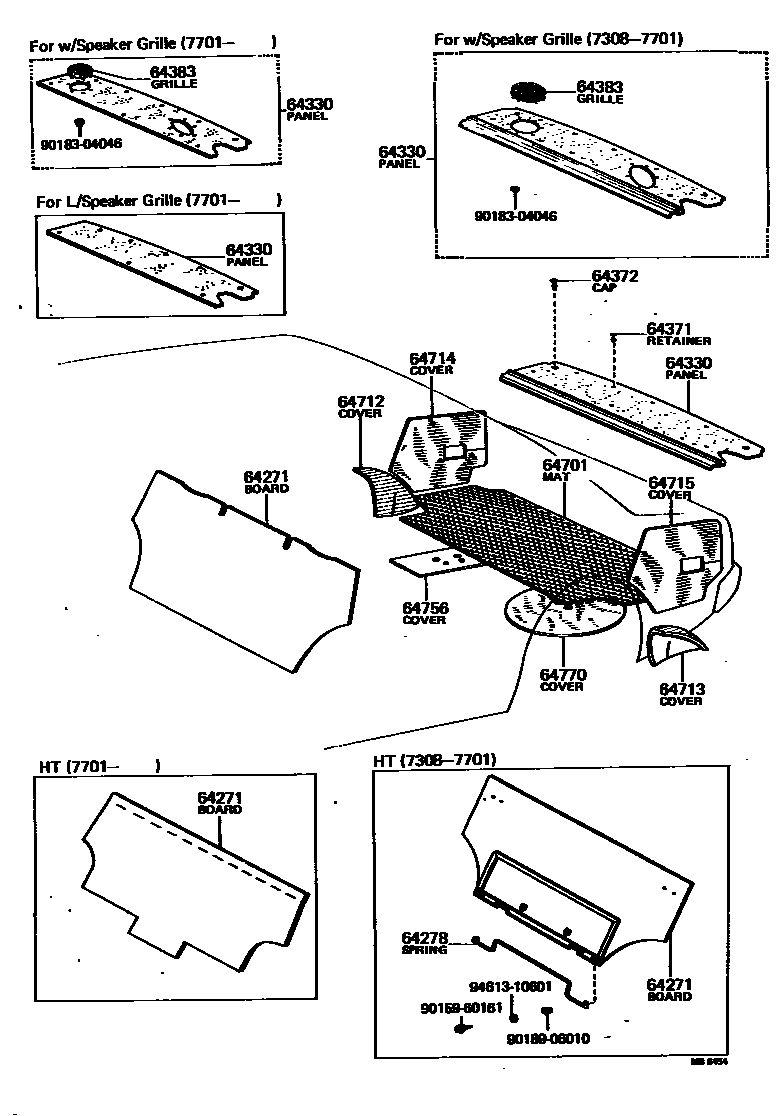

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64271BOARD, ROOM PARTITION, NO.1
BLACK,BLACK,TRIM1#,2#
BLUE,BLUE,TRIM8#
OLIVE-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
OLIVE-BROWN,BROWN,TRIM4#
64278SPRING, TORSION(FOR ROOM PARTITION BOARD)
64371RETAINER, PACKAGE TRAY TRIM
64372CAP, PACKAGE TRAY TRIM
64383GRILLE, SPEAKER, REAR
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
64714COVER, LUGGAGE COMPARTMENT, RH
64715COVER, LUGGAGE COMPARTMENT, LH
64756COVER, LUGGAGE COMPARTMENT SIDE
64770COVER ASSY, SPARE WHEEL
9015960161
main90159-60161
9018304046
main90183-04046
9018906010
main90189-06010
9461310601
main94613-10601
17 parts on this diagram · 1 diagram in section
