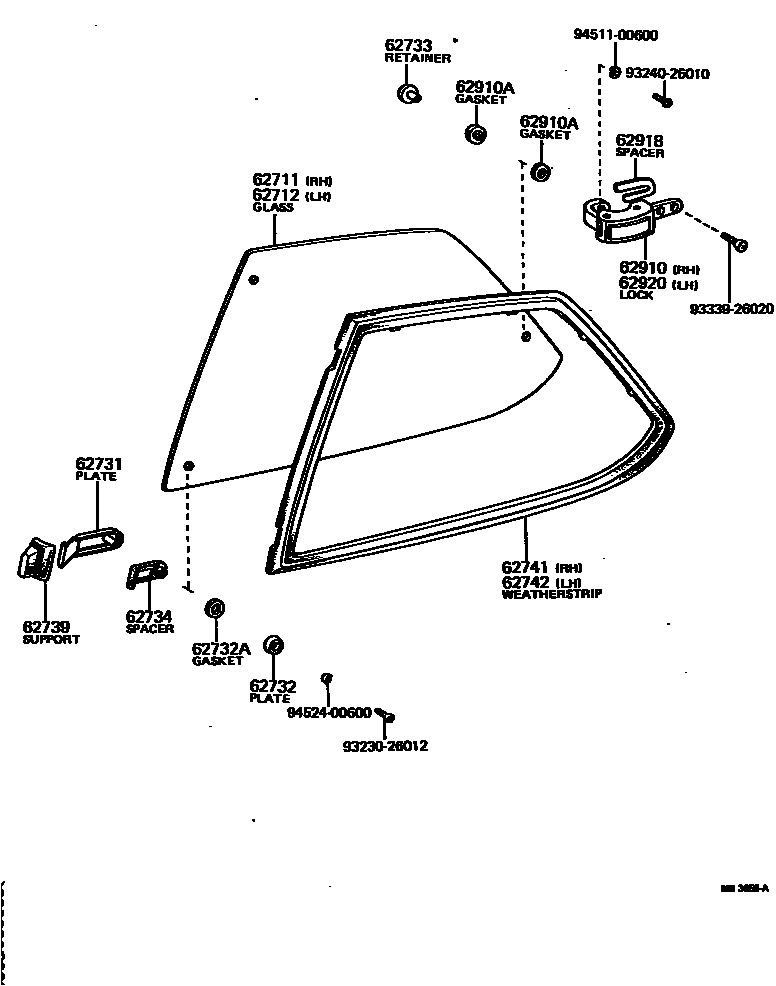

QUARTER WINDOW
62711GLASS, QUARTER WINDOW, RH
62712GLASS, QUARTER WINDOW, LH
62731PLATE, QUARTER OR SIDE WINDOW HINGE
RH.
LH.
62732PLATE, QUARTER OR SIDE WINDOW HINGE FINISH
62732AGASKET(FOR QUARTER WINDOW HINGE FINISH PLATE)
62733RETAINER, QUARTER OR SIDE WINDOW HINGE
62734SPACER, QUARTER WINDOW HINGE
RH.
LH.
62739SUPPORT, QUARTER WINDOW HINGE
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742WEATHERSTRIP, QUARTER WINDOW, LH
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62918SPACER, QUARTER WINDOW LOCK SUPPORT
62920LOCK ASSY, QUARTER WINDOW, LH
9323026012
main93230-26012
9324026010
main93240-26010
9333926020
main93339-26020
9451100600
main94511-00600
9452400600
main94524-00600
19 parts on this diagram · 4 diagrams in section
