EPC Data

MAT & CARPET

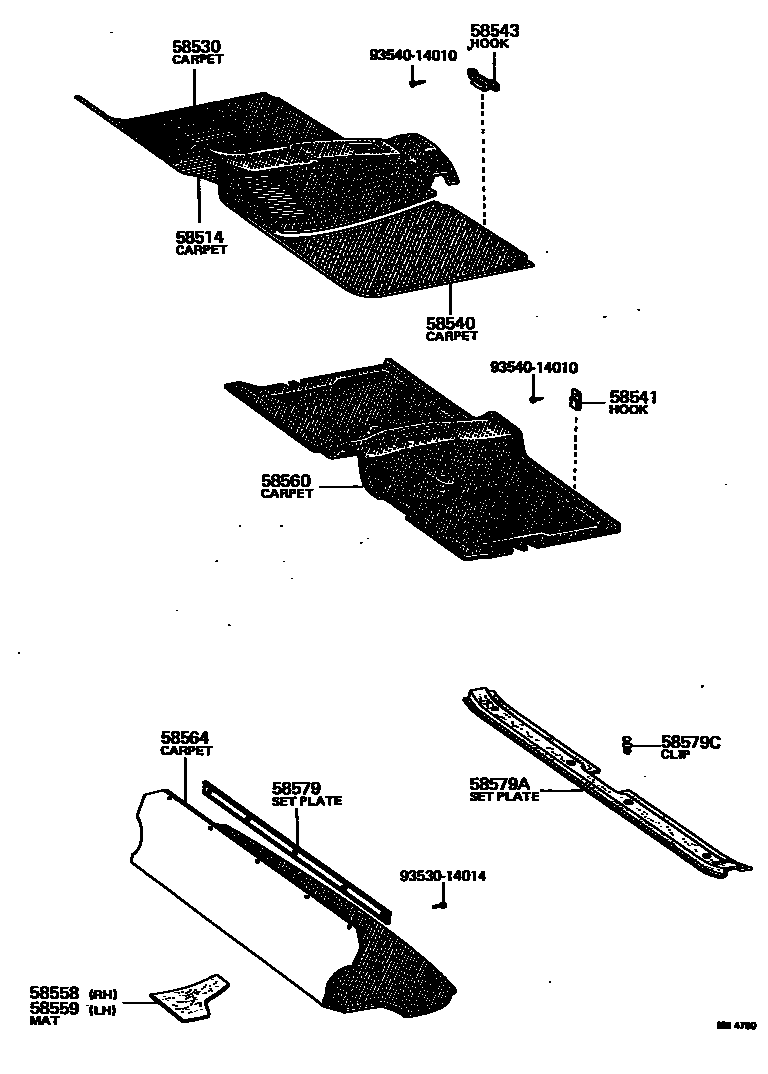

Parts diagram
58514CARPET, FLOOR, FRONT CENTER
main58514-20270-01i197308-197509
FOR W/CONSOLE,BLACK,BLACK,TRIM2#
sub58514-20280¥26,100
main58514-20271-01i197509-197603
FOR SEMI CONSOLE,*1,BLACK,BLACK,TRIM2#
sub58514-20272
main58514-20271-06i197509-197603
FOR SEMI CONSOLE,*1,BROWN,BROWN,TRIM4#
sub58514-20272
main58514-20272-01i197603-197701
FOR SEMI CONSOLE,*1,BLACK,BLACK,TRIM2#
main58514-20272-06i197603-197701
FOR SEMI CONSOLE,*1,BROWN,BROWN,TRIM4#
main58514-20280-03i197308-197408
FOR W/CONSOLE,GRAY,GRAY,TRIM1#
sub58514-20320¥26,100
sub58514-20270¥28,800
sub58514-20280¥26,100
main58514-20280-04i197308-197408
FOR W/CONSOLE,BLUE,BLUE,TRIM8#
sub58514-20320¥26,100
sub58514-20270¥28,800
sub58514-20280¥26,100
main58514-20280-06i197308-197408
FOR W/CONSOLE,OLIVE-BROWN,BROWN,TRIM4#
sub58514-20320¥26,100
sub58514-20270¥28,800
sub58514-20280¥26,100
main58514-20280-16i197408-197509
FOR W/CONSOLE,BROWN,BROWN,TRIM4#
sub58514-20320¥26,100
sub58514-20270¥28,800
sub58514-20280¥26,100
main58514-20290-01i197308-197509
BLACK,BLACK,TRIM2#
main58514-20291-01i197509-197603
*1,BLACK,BLACK,TRIM2#
sub58514-20292
main58514-20291-06i197509-197603
*1BROWN,BROWN,TRIM4#
sub58514-20292
main58514-20292-01i197603-197701
*1,BLACK,BLACK,TRIM2#
main58514-20292-06i197603-197701
*1,BROWN,BROWN,TRIM4#
main58514-20300-03i197308-197408
GRAY,GRAY,TRIM1#
sub58514-20290
sub58514-20300¥26,100
main58514-20300-04i197308-197408
BLUE,BLUE,TRIM8#
sub58514-20290
sub58514-20300¥26,100
main58514-20300-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58514-20290
sub58514-20300¥26,100
main58514-20300-16i197408-197509
BROWN,BROWN,TRIM4#
sub58514-20290
sub58514-20300¥26,100
main58514-20310-01i197308-197509
FOR L/CONSOLE,BLACK,BLACK,TRIM2#
sub58514-20320¥26,100
main58514-20311-01i197509-197603
*1,BLACK,BLACK,TRIM2#
sub58514-20312
main58514-20311-06i197509-197603
*1,BROWN,BROWN,TRIM4#
sub58514-20312
main58514-20312-01i197603-197701
*1,BLACK,BLACK,TRIM2#
main58514-20312-06i197603-197701
*1,BROWN,BROWN,TRIM4#
main58514-20320-03i197308-197408
FOR L/CONSOLE,GRAY,GRAY,TRIM1#
sub58514-20310¥28,800
sub58514-20320¥26,100
main58514-20320-04i197308-197408
FOR L/CONSOLE,BLUE,BLUE,TRIM8#
sub58514-20310¥28,800
sub58514-20320¥26,100
main58514-20320-06i197308-197408
FOR L/CONSOLE,OLIVE-BROWN,BROWN,TRIM4#
sub58514-20310¥28,800
sub58514-20320¥26,100
main58514-20320-16i197408-197509
FOR L/CONSOLE,BROWN,BROWN,TRIM4#
sub58514-20310¥28,800
sub58514-20320¥26,100
main58514-20330-01i197308-197509
BLACK,BLACK,TRIM2#
main58514-20331-01i197509-197603
*1,BLACK,BLACK,TRIM2#
sub58514-20332
main58514-20331-06i197509-197603
*1,BROWN,BROWN,TRIM4#
sub58514-20332
main58514-20332-01i197603-197701
*1,BLACK,BLACK,TRIM2#
main58514-20332-06i197603-197701
*1,BROWN,BROWN,TRIM4#
main58514-20340-03i197308-197408
GRAY,GRAY,TRIM1#
sub58514-20330
sub58514-20340¥26,100
main58514-20340-04i197308-197408
BLUE,BLUE,TRIM8#
sub58514-20330
sub58514-20340¥26,100
main58514-20340-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58514-20330
sub58514-20340¥26,100
main58514-20340-16i197408-197509
BROWN,BROWN,TRIM4#
sub58514-20330
sub58514-20340¥26,100
main58514-20420-01i197308-197509
FOR SEPARATE SEAT BLACK,BLACK,TRIM2#
sub58514-20420¥32,800
main58514-20420-03i197308-197408
GRAY,GRAY,TRIM1#
sub58514-20420¥32,800
main58514-20420-04i197308-197408
BLUE,BLUE,TRIM8#
sub58514-20420¥32,800
main58514-20420-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58514-20420¥32,800
main58514-20420-16i197408-197509
FOR SEPARATE SEAT BROWN,BROWN,TRIM4#
sub58514-20420¥32,800
main58514-20440-01i197308-197509
FOR L/CONSOLE,BLACK,BLACK,TRIM2#
sub58514-20420¥32,800
sub58514-20440¥26,100
main58514-20440-03i197308-197408
FOR L/CONSOLE,GLAY,GRAY
sub58514-20420¥32,800
sub58514-20440¥26,100
main58514-20440-04i197308-197408
FOR L/CONSOLE,BLUE,BLUE,TRIM8#
sub58514-20420¥32,800
sub58514-20440¥26,100
main58514-20440-06i197308-197408
FOR L/CONSOLE,OLIVE-BROWN,BROWN,TRIM4#
sub58514-20420¥32,800
sub58514-20440¥26,100
main58514-20440-16i197408-197509
FOR L/CONSOLE,BROWN,BROWN,TRIM4#
sub58514-20420¥32,800
sub58514-20440¥26,100
main58514-20450-01i197308-197509
FOR W/CONSOLE,BLACK,BLACK,TRIM2#
sub58514-20420¥32,800
sub58514-20450¥26,100
main58514-20450-03i197308-197408
FOR W/CONSOLE,GRAY,GRAY,TRIM1#
sub58514-20420¥32,800
sub58514-20450¥26,100
main58514-20450-04i197308-197408
FOR W/CONSOLE,BLUE,BLUE,TRIM8#
sub58514-20420¥32,800
sub58514-20450¥26,100
main58514-20450-06i197308-197408
FOR W/CONSOLE,OLIVE-BROWN,BROWN,TRIM4#
sub58514-20420¥32,800
sub58514-20450¥26,100
main58514-20450-16i197408-197509
FOR W/CONSOLE,BROWN,BROWN,TRIM4#
sub58514-20420¥32,800
sub58514-20450¥26,100
main58514-20480-01i197504-197509
FOR BENCH SEAT,BLACK,BLACK,TRIM2#
main58514-20480-06i197504-197509
FOR BENCH SEAT,BROWN,BROWN,TRIM4#
main58514-20481-01i197509-197603
FOR BENCH SEAT,BLACK,BLACK,TRIM2#
sub58514-20482
main58514-20481-06i197509-197603
FOR BENCH SEAT,BROWN,BROWN,TRIM4#
sub58514-20482
main58514-20482-01i197603-197701
FOR BENCH SEAT,BLACK,BLACK,TRIM2#
main58514-20482-06i197603-197701
FOR BENCH SEAT,BROWN,BROWN,TRIM4#
main58514-20490-01i197502-197509
FOR SEMI CS.FULL DUCT,BLACK,BLACK,TRIM2#
main58514-20490-06i197502-197509
FOR SEMI CS.FULL DUCT,BROWN,BROWN,TRIM4#
main58514-20530-01i197509-197603
*2,BLACK,BLACK,TRIM2#
sub58514-20531
main58514-20530-06i197509-197603
*2,BROWN,BROWN,TRIM4#
sub58514-20531
main58514-20531-01i197603-197701
*2,BLACK,BLACK,TRIM2#
main58514-20531-06i197603-197701
*2,BROWN,BROWN,TRIM4#
main58514-20540-01i197509-197603
*2,BLACK,BLACK,TRIM2#
sub58514-20541
main58514-20540-06i197509-197603
*2,BROWN,BROWN,TRIM4#
sub58514-20541
main58514-20541-01i197603-197701
*2,BLACK,BLACK,TRIM2#
main58514-20541-06i197603-197701
*2,BROWN,BROWN,TRIM4#
main58514-20550-01i197509-197603
FOR SEMI CONSOLE,*2,BLACK,BLACK,TRIM2#
sub58514-20551
main58514-20550-06i197509-197603
FOR SEMI CONSOLE,*2,BROWN,BROWN,TRIM4#
sub58514-20551
main58514-20551-01i197603-197701
FOR SEMI CONSOLE,*2,BLACK,BLACK,TRIM2#
main58514-20551-06i197603-197701
FOR SEMI CONSOLE,*2,BROWN,BROWN,TRIM4#
main58514-20560-01i197509-197603
*2,BLACK,BLACK,TRIM2#
sub58514-20561
main58514-20560-06i197509-197603
*2,BROWN,BROWN,TRIM4#
sub58514-20561
main58514-20561-01i197603-197701
*2,BLACK,BLACK,TRIM2#
main58514-20561-06i197603-197701
*2,BROWN,BROWN,TRIM4#
58530CARPET ASSY, FLOOR, FRONT RH
main58530-20100-01i197308-197509
BLACK,BLACK,TRIM2#
main58530-20101-01i197509-197701
*1,BLACK,BLACK,TRIM2#
main58530-20101-06i197509-197701
*1,BROWN,BROWN,TRIM4#
main58530-20110-03i197308-197408
GRAY,GRAY,TRIM1#
sub58530-20100
sub58530-20110¥16,500
main58530-20110-04i197308-197408
BLUE,BLUE,TRIM8#
sub58530-20100
sub58530-20110¥16,500
main58530-20110-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58530-20100
sub58530-20110¥16,500
main58530-20110-16i197408-197509
BROWN,BROWN,TRIM4#
sub58530-20100
sub58530-20110¥16,500
main58530-20120-01i197308-197509
BLACK,BLACK,TRIM2#
sub58530-20121
sub58530-20120¥18,500
main58530-20120-03i197308-197408
GRAY,GRAY,TRIM1#
sub58530-20121
sub58530-20120¥18,500
main58530-20120-04i197308-197408
BLUE,BLUE,TRIM8#
sub58530-20121
sub58530-20120¥18,500
main58530-20120-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58530-20121
sub58530-20120¥18,500
main58530-20120-16i197408-197509
BROWN,BROWN,TRIM4#
sub58530-20121
sub58530-20120¥18,500
main58530-20121-01i197509-197701
BLACK,BLACK,TRIM2#
main58530-20121-06i197509-197701
BROWN,BROWN,TRIM4#
main58530-20180-01i197308-197409
BLACK,BLACK,TRIM2#
sub58530-20100
main58530-20200-03i197308-197408
GRAY,GRAY,TRIM1#
sub58530-20110¥16,500
main58530-20200-04i197308-197408
BLUE,BLUE,TRIM8#
sub58530-20110¥16,500
main58530-20200-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58530-20110¥16,500
main58530-20200-16i197408-197409
BROWN,BROWN,TRIM4#
sub58530-20110¥16,500
main58530-20240-01i197509-197701
*2,BLACK,BLACK,TRIM2#
main58530-20240-06i197509-197701
*2,BROWN,BROWN,TRIM4#
main58530-21010-01i197308-197409
BLACK,BLACK,TRIM2#
main58530-21020-06i197308-197408
BROWN,BROWN,TRIM4#
sub58530-21020¥10,400
main58530-21020-16i197408-197409
BROWN,BROWN,TRIM4#
sub58530-21020¥10,400
main58530-21030-01i197308-197409
BLACK,BLACK,TRIM2#
sub58530-20120¥18,500
sub58530-21030¥18,500
main58530-21030-06i197308-197408
BROWN,BROWN,TRIM4#
sub58530-20120¥18,500
sub58530-21030¥18,500
main58530-21030-16i197408-197409
BROWN,BROWN,TRIM4#
sub58530-20120¥18,500
sub58530-21030¥18,500
58540CARPET ASSY, FLOOR, FRONT LH
main58540-20040-01i197308-197509
BLACK,BLACK,TRIM2#
sub58540-20140
main58540-20041-01i197509-197701
*1,BLACK,BLACK,TRIM2#
main58540-20041-06i197509-197701
*1,BROWN,BROWN,TRIM4#
main58540-20050-03i197308-197408
GRAY,GRAY,TRIM1#
sub58540-20040¥18,500
sub58540-20050¥16,500
main58540-20050-04i197308-197408
BLUE,BLUE,TRIM8#
sub58540-20040¥18,500
sub58540-20050¥16,500
main58540-20050-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58540-20040¥18,500
sub58540-20050¥16,500
main58540-20050-16i197408-197509
BROWN,BROWN,TRIM4#
sub58540-20040¥18,500
sub58540-20050¥16,500
main58540-20060-01i197308-197509
BLACK,BLACK,TRIM2#
sub58540-20060¥18,300
main58540-20060-03i197308-197408
GRAY,GRAY,TRIM1#
sub58540-20060¥18,300
main58540-20060-04i197308-197408
BLUE,BLUE,TRIM8#
sub58540-20060¥18,300
main58540-20060-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58540-20060¥18,300
main58540-20060-16i197408-197509
BROWN,BROWN,TRIM4#
sub58540-20060¥18,300
main58540-20061-01i197509-197701
BLACK,BLACK,TRIM2#
main58540-20061-06i197509-197701
BROWN,BROWN,TRIM4#
main58540-20140-01i197509-197701
*2,BLACK,BLACK,TRIM2#
main58540-20140-06i197509-197701
*2,BROWN,BROWN,TRIM4#
58541HOOK, MALE, NO.1(FOR CARPET)
main58521-20040i197308-197701
58543HOOK, MALE, NO.3(FOR CARPET)
main58526-20020i197308-197701
58558CARPET, REAR SEAT SIDE, RH
main58580-21010i¥2,300197308-197410
sub58588-21010
main58588-21010i197410-197701
58559CARPET, REAR SEAT SIDE, LH
main58589-21010i197410-197701
main58590-21010i¥2,730197308-197410
sub58589-21010
58560CARPET ASSY, FLOOR, REAR
main58540-20110-01i197509-197701
BLACK,BLACK,TRIM2#
main58540-20110-06i197509-197701
BROWN,BROWN,TRIM4#
main58540-20120-01i197509-197701
FOR SEMI CS. FULL DUCT,BLACK,BLACK,TRIM2#
main58540-20120-06i197509-197701
FOR SEMI CS. FULL DUCT,BROWN,BROWN,TRIM4#
main58540-20210-01i197701-197808
FOR L/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-20210-03i197701-197808
FOR L/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-20210-05i197701-197808
FOR L/SEAT BELT,BEIGE,BEIGE,TRIM4#
main58540-20230-01i197701-197708
FOR W/SEAT BELT,BLACK,TRIM2#
main58540-20230-03i197701-197708
FOR W/SEAT BELT,GRAY,TRIM1#
main58540-20230-05i197701-197708
FOR W/SEAT BELT,BEIGE,TRIM4#
main58540-20240-01i197701-197905
FOR L/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-20240-03i197701-197905
FOR L/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-20240-05i197701-197905
FOR L/SEAT BELT,BEIGE,BEIGE,TRIM4#
main58540-20270-01i197701-197708
FOR W/SEAT BELT,BLACK,TRIM2#
main58540-20270-03i197701-197708
FOR W/SEAT BELT,GRAY,TRIM1#
main58540-20270-05i197701-197708
FOR W/SEAT BELT,BEIGE,TRIM4#
main58540-21010-01i197509-197701
BLACK,BLACK,TRIM2#
main58540-21010-06i197509-197701
BROWN,BROWN,TRIM4#
main58540-21020-01i197509-197701
FOR SEMI CS.FULL DUCT,BLACK,BLACK,TRIM2#
main58540-21020-06i197509-197701
FOR SEMI CS.FULL DUCT,BROWN,BROWN,TRIM4#
main58540-21060-01i197701-197905
FOR W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-21060-05i197701-197905
FOR W/SEAT BELT,BEIGE,BEIGE,TRIM4#
main58540-21070-01i197701-197808
FOR W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-21070-05i197701-197808
FOR W/SEAT BELT,BEIGE,BEIGE,TRIM4#
main58540-21080-01i197701-197905
FOR L/SEAT BELT,BLACK,BLACK,TRIM2#
sub58540-21060
main58540-21080-05i197701-197905
FOR L/SEAT BELT,BEIGE,BEIGE,TRIM4#
sub58540-21060
main58540-21090-01i197701-197808
FOR L/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-21090-05i197701-197808
FOR L/SEAT BELT,BEIGE,BEIGE,TRIM4#
main58540-95500-01i197509-197701
BLACK,BLACK,TRIM2#
main58540-95500-06i197509-197701
BROWN,BROWN,TRIM4#
main58540-95503-01i197701-197808
FOR W/SEAT BELT,BLACK,BLACK,TRIM2#
main58540-95503-03i197701-197808
FOR W/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-95503-05i197701-197808
FOR W/SEAT BELT,BEIGE,BEIGE,TRIM4#
main58540-95504-01i197701-197808
BLACK,BLACK,TRIM2#
main58540-95504-03i197701-197808
GRAY,GRAY,TRIM1#
main58540-95504-05i197701-197808
BEIGE,BEIGE,TRIM4#
main58560-20170-01i197308-197405
BLACK,BLACK,TRIM2#
main58560-20171-01i197405-197509
BLACK,BLACK,TRIM2#
main58560-20172-01i197509-197701
*1,BLACK,BLACK,TRIM2#
main58560-20172-06i197509-197701
*1,BROWN,BROWN,TRIM4#
main58560-20180-01i197308-197509
BLACK,BLACK,TRIM2#
main58560-20181-01i197509-197701
FOR SEMI CS.FULL DUCT,*1,BLACK,BLACK,TRIM2#
main58560-20181-06i197509-197701
FOR SEMI CS.FULL DUCT,*1,BROWN,BROWN,TRIM4#
main58560-20190-01i197308-197509
FOR W/SEAT BELT,BLACK,BLACK,TRIM2#
main58560-20191-01i197509-197701
FOR W/SEAT BELT,*1,BLACK,BLACK,TRIM2#
main58560-20191-06i197509-197701
FOR W/SEAT BELT,*1,BROWN,BROWN,TRIM4#
main58560-20200-01i197504-197509
FOR L/SEAT BELT,BN. BLACK,BLACK,TRIM2#
main58560-20200-01i197308-197504
FOR L/SEAT BELT,BLACK,BLACK,TRIM2#
main58560-20201-01i197509-197701
FOR L/SEAT BELT,BN.*1,BLACK,BLACK,TRIM2#
main58560-20201-06i197509-197701
FOR L/SEAT BELT,BN.*1,BROWN,BROWN,TRIM4#
main58560-20210-01i197308-197405
BLACK,BLACK,TRIM2#
main58560-20210-03i197308-197405
GRAY,GRAY,TRIM1#
main58560-20210-04i197308-197405
BLUE,BLUE,TRIM8#
main58560-20210-06i197308-197405
OLIVE-BROWN,BROWN,TRIM4#
main58560-20211-01i197405-197509
BLACK,BLACK,TRIM2#
sub58560-20211¥36,100
main58560-20211-03i197405-197408
GRAY,GRAY,TRIM1#
sub58560-20211¥36,100
main58560-20211-04i197405-197408
BLUE,BLUE,TRIM8#
sub58560-20211¥36,100
main58560-20211-06i197405-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58560-20211¥36,100
main58560-20211-16i197408-197509
BROWN,BROWN,TRIM4#
sub58560-20211¥36,100
main58560-20220-03i197308-197408
GRAY,GRAY,TRIM1#
sub58560-20180
sub58560-20220¥31,400
main58560-20220-04i197308-197408
BLUE,BLUE,TRIM8#
sub58560-20180
sub58560-20220¥31,400
main58560-20220-06i197308-197408
OLIVE-BROWN,BROWN,TRIM4#
sub58560-20180
sub58560-20220¥31,400
main58560-20220-16i197408-197509
BROWN,BROWN,TRIM4#
sub58560-20180
sub58560-20220¥31,400
main58560-20230-03i197308-197408
FOR W/SEAT BELT,GRAY,GRAY,TRIM1#
sub58560-20190
sub58560-20230¥31,400
main58560-20230-04i197308-197408
FOR W/SEAT BELT,BLUE,BLUE,TRIM8#
sub58560-20190
sub58560-20230¥31,400
main58560-20230-06i197308-197408
FOR W/SEAT BELT,OLIVE-BROWN,BROWN,TRIM4#
sub58560-20190
sub58560-20230¥31,400
main58560-20230-16i197408-197509
FOR W/SEAT BELT,BROWN,BROWN,TRIM4#
sub58560-20190
sub58560-20230¥31,400
main58560-20240-03i197308-197408
FOR L/SEAT BELT,GRAY,GRAY,TRIM1#
sub58560-20200
sub58560-20240¥43,300
main58560-20240-04i197308-197408
FOR L/SEAT BELT,BLUE,BLUE,TRIM8#
sub58560-20200
sub58560-20240¥43,300
main58560-20240-06i197308-197408
FOR L/SEAT BELT,OLIVE-BROWN,BROWN,TRIM4#
sub58560-20200
sub58560-20240¥43,300
main58560-20240-16i197408-197504
FOR L/SEAT BELT,BROWN,BROWN,TRIM4#
sub58560-20200
sub58560-20240¥43,300
main58560-20240-16i197504-197509
FOR L/SEAT BELT,BN.BROWN,BROWN,TRIM4#
sub58560-20200
sub58560-20240¥43,300
main58560-20250-01i197502-197509
FOR SEMI CS.FULL DUCT,BLACK,BLACK,TRIM2#
main58560-20250-06i197502-197509
FOR SEMI CS.FULL DUCT,BROWN,BROWN,TRIM4#
main58560-20260-01i197501-197509
BLACK,BLACK,TRIM2#
main58560-20260-06i197501-197509
BROWN,BROWN,TRIM4#
main58560-20261-01i197509-197701
BLACK,BLACK,TRIM2#
sub58560-20300
main58560-20261-06i197509-197701
BROWN,BROWN,TRIM4#
sub58560-20300
main58560-20270-01i197501-197509
BLACK,BLACK,TRIM2#
main58560-20270-06i197501-197509
BROWN,BROWN,TRIM4#
main58560-20280-01i197509-197701
FOR L/SEAT BELT,BN.*2,BLACK,BLACK,TRIM2#
main58560-20280-06i197509-197701
FOR L/SEAT BELT,BN.*2,BROWN,BROWN,TRIM4#
main58560-20290-01i197509-197701
FOR W/SEAT BELT,*2,BLACK,BLACK,TRIM2#
main58560-20290-06i197509-197701
FOR W/SEAT BELT,*2,BROWN,BROWN,TRIM4#
main58560-20300-01i197509-197701
*2,BLACK,BLACK,TRIM2#
main58560-20300-06i197509-197701
*2,BROWN,BROWN,TRIM4#
main58560-20310-01i197509-197701
FOR SEMI CS.FULL DUCT,*2,BLACK,BLACK,TRIM2#
main58560-20310-06i197509-197701
FOR SEMI CS.FULL DUCT,*2,BROWN,BROWN,TRIM4#
58564CARPET, REAR FLOOR
main58560-21010-01i197509-197701
BLACK,BLACK,TRIM2#
sub58560-21010¥38,100
main58560-21010-26i197509-197701
BROWN,BROWN,TRIM4#
sub58560-21010¥38,100
main58560-21020-05i197701-197905
BEIGE,BEIGE,TRIM4#
main58560-21020-11i197701-197905
BLACK,BLACK,TRIM2#
58579SET PLATE, REAR FLOOR CARPET, NO.1
main71897-21010i197308-197905
58579ASET PLATE, REAR FLOOR CARPET, NO.2
main58387-21010i¥4,650197308-197509
main58387-21010-01i197701-197905
BLACK,BLACK,TRIM2#
sub58387-21010¥4,650
main58387-21010-03i197509-197701
GRAY,GRAY,TRIM1#
sub58387-21010¥4,650
main58387-21010-06i197511-197701
BROWN,BROWN,TRIM4#
sub58387-21010¥4,650
main58387-21010-15i197701-197905
BEIGE,BEIGE,TRIM4#
sub58387-21010¥4,650
58579CCLIP, REAR FLOOR CARPET SET
main90467-08114-01i197308-197701
BLACK,BLACK,TRIM2#
sub90467-08114¥250
main90467-08114-11i197701-197905
BLACK,BLACK,TRIM2#
sub90467-08114¥250
main90467-08114-13i197308-197408
GRAY,GRAY,TRIM1#
sub90467-08114¥250
main90467-08114-16i197308-197701
BROWN,BROWN,TRIM4#
sub90467-08114¥250
main90467-08114-25i197701-197905
BEIGE,BEIGE,TRIM4#
sub90467-08114¥250
9353014014
main93530-14014¥100
9354014010
main93540-14010¥100

14 parts on this diagram · 2 diagrams in section

MAT & CARPET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
