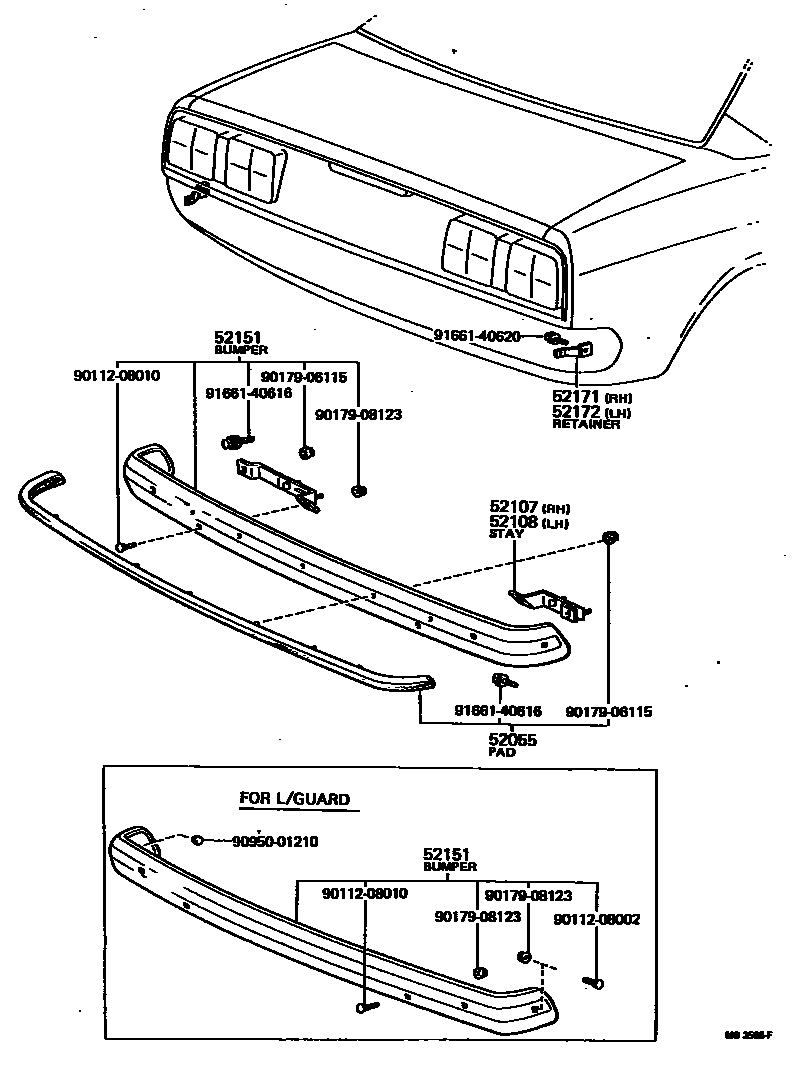

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52055PAD SUB-ASSY, REAR BUMPER

main52107-29085iRT104..EUR197311-197905

52107STAY SUB-ASSY, REAR BUMPER, RH

main52045-21010iRT116,117,118197308-197905

main52181-20050iRT110,112,114197308-197808

main52181-20051iRT10#197701-197905

main52181-20060iRT10#197308-197604

52108STAY SUB-ASSY, REAR BUMPER, LH

main52046-21010iRT116,117,118197308-197905

main52182-20050iRT114197308-197808

main52182-20051iRT10#197701-197905

main52182-20060iRT10#197308-197604

52151BUMPER ASSY, REAR

main52151-29175iRT10#,110,112,114..ARL,GEN,PHL,SA197308-197905

sub52151-20130

main52151-29195iRT104..EUR,GEN197701-197905

FOR BUMPER GUARD

sub52151-20150

main52151-29195iRT102,104..EUR197311-197708

sub52151-20150

main52151-29205iRT116,117,118197308-197905

sub52151-21020

52171RETAINER, REAR BUMPER SIDE, RH

main52171-20050iRT10#,112,114197308-197310

sub52185-20020

sub52186-20010

main52171-21020iRT116,117,118197308-197905

main52185-20020iRT10#,110,112,114197310-197604

52172RETAINER, REAR BUMPER SIDE, LH

main52171-20050iRT10#,112,114197308-197310

sub52185-20020

sub52186-20010

main52172-21010iRT116,117,118197308-197905

main52186-20010iRT10#,110,112,114197310-197604

9011208002

main90112-08002

9011208010

main90112-08010

9017906115

main90179-06115

9017908123

main90179-08123

9095001210

main90950-01210

9166140616

main91661-40616

9166140620

main91661-40620

13 parts on this diagram · 2 diagrams in section
