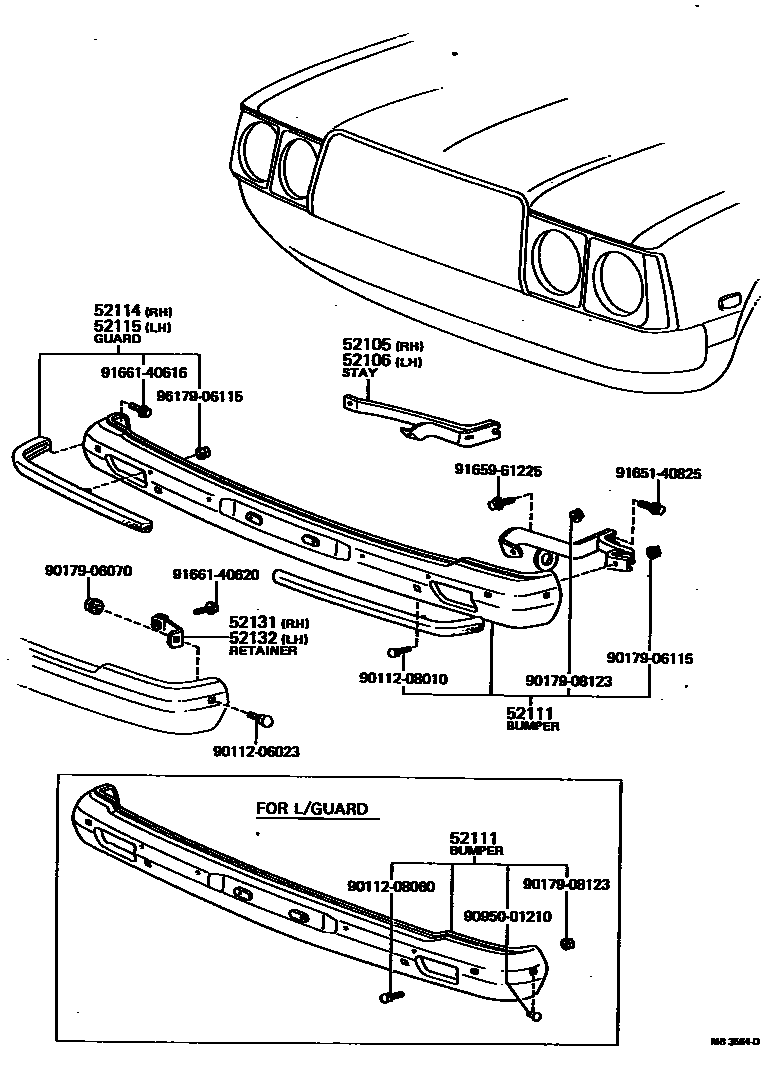

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-20030iRT10#,11#197308-197701

main52011-20031iRT10#,11#197701-197905

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-20030iRT10#,11#197308-197701

main52012-20031iRT10#,11#197701-197905

52111BUMPER ASSY, FRONT

main52111-29195iRT100,11#197308-197701

sub52111-20130

main52111-29196iRT118..RHD..EUG197701-197905

sub52111-20131

main52111-29215iRT102,104..EUR197311-197701

sub52111-20150

main52111-29216iRT114..GEN197701-197808

sub52111-20151

main52111-29216iRT104..EUG;RT100,104..ARL,GEN,PHL,SA197708-197905

FOR BUMPER GUARD

sub52111-20151

main52111-29255iRT104..EUR197409-197509

FOR W/HEADLAMP CLEANER

sub52111-20170

main52111-29256iRT104..EUR197509-197701

FOR W/HEADLAMP CLEANER

sub52111-20171

main52111-29257iRT104..SDN197701-197808

FOR W/HEADLAMP CLEANER

sub52111-20172

main52111-29265iRT118..EUR197409-197509

FOR W/HEADLAMP CLEANER

sub52111-21010

main52111-29266iRT118..SDN197509-197701

FOR W/HEADLAMP CLEANER

sub52111-21011

main52111-29325iRT118..SDN197701-197808

sub52111-21020

52114GUARD, BUMPER, FRONT RH

main52103-29085iRT102,104..EUR197311-197701

main52103-29086iRT114..GEN197701-197905

52115GUARD, BUMPER, FRONT LH

main52104-29065iRT102,104..EUR197311-197701

main52104-29066iRT104..EUR197701-197905

52131RETAINER, FRONT BUMPER SIDE, RH

main52145-20030iRT10#,11#197701-197905

52132RETAINER, FRONT BUMPER SIDE, LH

main52145-20030iRT10#,11#197701-197905

9011206023

main90112-06023

9011208010

main90112-08010

9011208060

main90112-08060

9017906070

main90179-06070

9017906115

main90179-06115

9017908123

main90179-08123

9095001210

main90950-01210

9165140825

main91651-40825

9165961225

main91659-61225

9166140616

main91661-40616

9166140620

main91661-40620

9617906115

main96179-06115

19 parts on this diagram · 1 diagram in section
