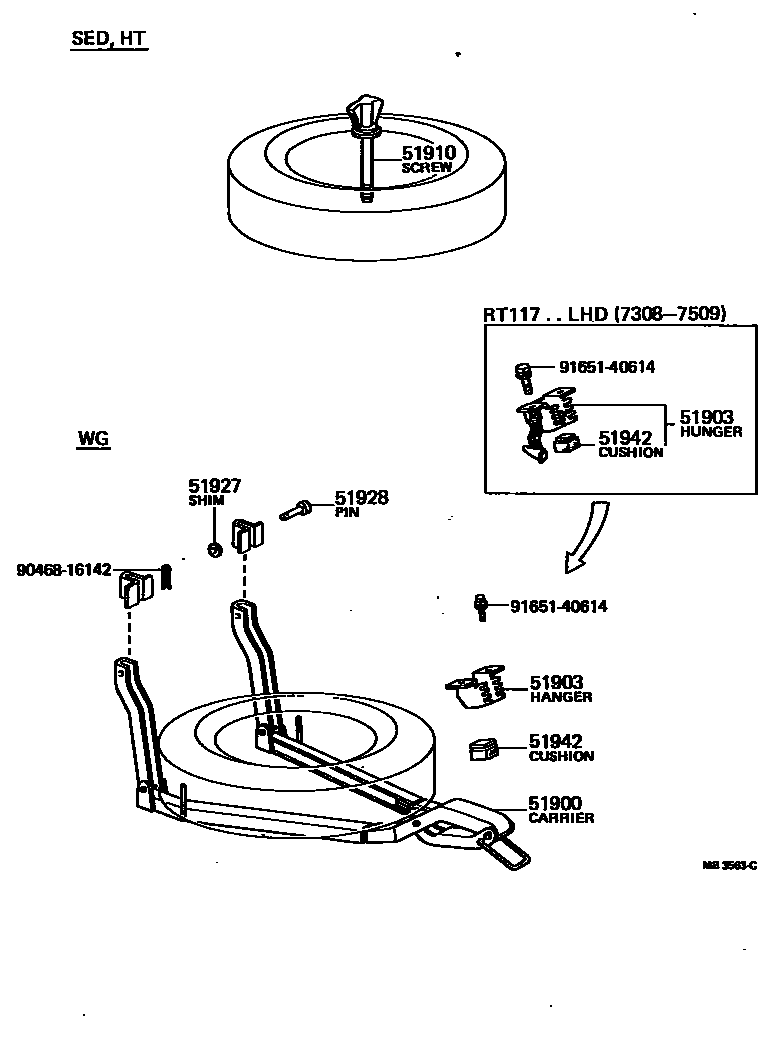

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-21010iRT116,117..GEN197308-197905

main51900-21020iRT117..EUG¥9,000197308-197408

sub51900-21030

main51900-21030iRT117..LHD..EUG197311-197408

WEST GERMANY

main51900-21040iRT118..ARL,EUR197408-197905

main51900-21050iRT117..LHD..EUG197408-197509

WEST GERMANY

main51900-21051iRT118..LHD..EUG197509-197808

FOR WEST GERMANY SPEC.

main51900-21070iRT118..EUG197701-197808

FOR 175SR14 TIRE

51903HANGER SUB-ASSY, SPARE WHEEL CARRIER HANDLE

main51908-21010iRT117..LHD..EUG197311-197808

WEST GERMANY

main51931-91605iRT116,118..GEN,PHL197308-197905

main51951-21901iRT117..EUG197311-197905

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-10020iRT10#,114..ARL,GEN,PHL,SA¥260197308-197905

sub51910-10030

main51910-20020iRT100,104..ARL,EUR,GEN¥490197308-197905

FOR WIDE DISC

sub51910-12020¥600

51927SHIM, SPARE CARRIER

main51927-91240iRT116,117,118197308-197311

51928PIN, SPARE WHEEL CARRIER

main51928-91240iRT116,117,118197308-197905

51942CUSHION, SPARE WHEEL CARRIER, REAR

main51942-91255iRT116,117,118197308-197905

9046816142

main90468-16142¥70

9165140614

main91651-40614¥160

8 parts on this diagram · 2 diagrams in section
