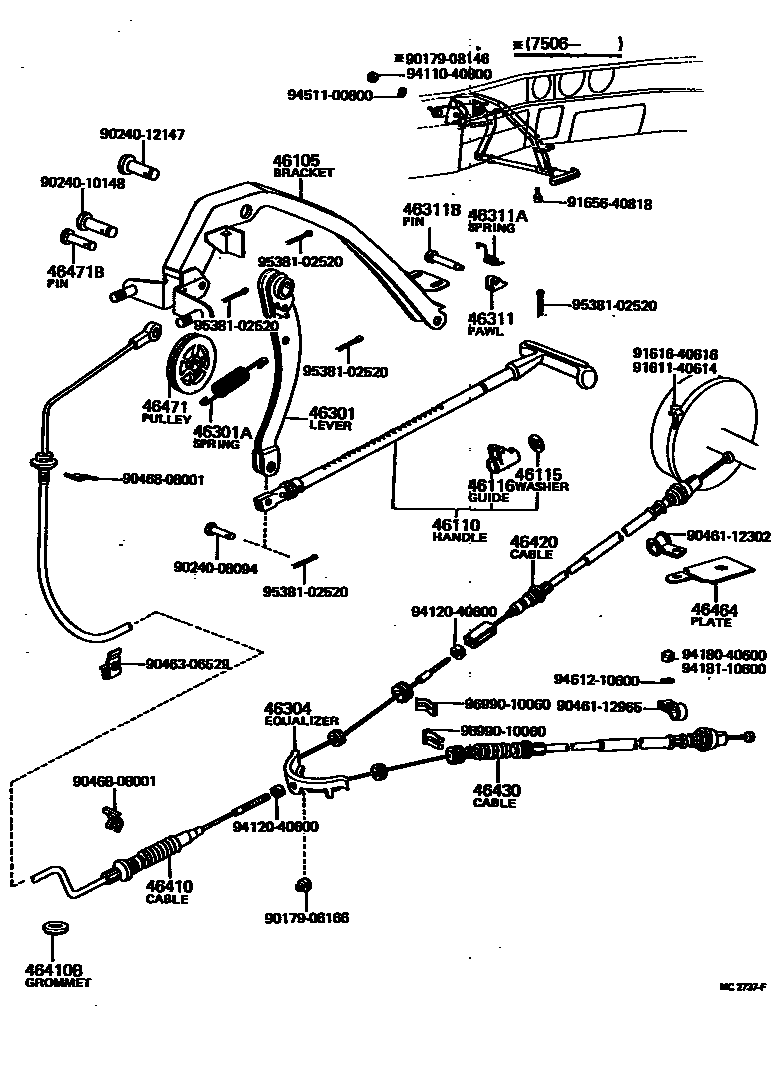

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-20020iRT100,116..RHD..3H197308-197701

main46105-20021iRT100,116..RHD..3H197701-197808

main46105-20030iRT100..LHD..3H197504-197701

main46105-20031iRT100..LHD..3H197701-197808

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46120-20030iRT100,116..RHD..3H197308-197808

main46120-20040iRT100..LHD..3H197504-197808

STEICK TYPE

main46201-20020iRT112,117,118197308-197405

sub46201-20021

main46201-20020-01iRT100,104,11#..LHD197701-197905

CENTER TYPE,BLACK,BLACK,TRIM2#

sub46201-20021

main46201-20030iRT104,114..4F..SA197308-197405

46115WASHER, PARKING BRAKE PLUNGER

main46115-20010iRT100..3H;RT116..RHD..3H197701-197808

46116GUIDE, PARKING BRAKE PLUNGER

main46116-20050iRT100..3H;RT116..RHD..3H197610-197808

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-20020iRT100,116..RHD..3H197308-197808

main46301-20030iRT100..LHD..3H197504-197808

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-12175iRT100..3H;RT116..RHD..3H197504-197808

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-20020iRT10#,11#197308-197905

sub46341-22030

46311PAWL, PARKING BRAKE

main46311-20030iRT100..3H;RT116..RHD..3H197308-197808

STEICK TYPE

main46311-22020iRT10#,11#..LHD197308-197905

CENTER TYPE

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08405iRT100..3H;RT116..RHD..3H197504-197808

46311BPIN, PARKING BRAKE PAWL PIVOT

main90240-08156iRT100,116..RHD..3H197308-197504

main90243-06017iRT10#,11#..LHD197308-197905

CENTER TYPE

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20130iRT100,116..RHD..3H197308-197701

main46410-20131iRT100,116..RHD..3H197701-197808

main46410-20140iRT100..LHD..3H197504-197701

main46410-20141iRT100..LHD..3H197701-197808

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-33131iRT100,116..RHD..3H197308-197502

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20060iRT10#,110,112,114197308-197905

sub46420-20061

main46420-21030iRT116,117,118197308-197905

sub46420-21031

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20060iRT10#,110,112,114197308-197509

sub46430-20061

main46430-20080iRT10#,110,114197509-197905

sub46430-20081

main46430-21030iRT116,117,118197308-197905

sub46430-21031

46464PLATE, CABLE CLAMP SUPPORT

main46464-21010×2iRT116,118197611-197905

main46464-23010×2iRT116,117,118197408-197509

main46464-23020×2iRT116,117,118197308-197408

46471PULLEY, WIRE

main46471-20020iRT100,116..RHD..3H197308-197504

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-10157iRT100,116..RHD..3H197308-197504

9017906166

main90179-06166

9017908146

main90179-08146

9024008094

main90240-08094

9024010148

main90240-10148

9024012147

main90240-12147

9046112302

main90461-12302

9046112965

main90461-12965

9046306529

main90463-06529

9046808001

main90468-08001

9161140614

main91611-40614

9161640616

main91616-40616

9165640818

main91656-40818

9411040800

main94110-40800

9412040600

main94120-40600

9418040600

main94180-40600

9418110600

main94181-10600

9451100800

main94511-00800

9461210600

main94612-10600

9538102520

main95381-02520

9699010060

main96990-10060

37 parts on this diagram · 3 diagrams in section
