DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050iRT104,114,118..GEN197512-197905

sub42603-12070

main42603-20020iRT102..EUG197311-197312

sub42603-20021

main42603-20021iRT102,104..EUR197312-197701

main42603-20040iRT104,114,118..ARL,EUR,SA197701-197905

sub42603-22100

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-20050iRT104,118197509-197905

165 SR 14,W/TUBE,DOT,BLACK

main42605-20070iRT104197509-197701

175SR-14,FOR ENGLAND

main42605-22080iRT102,104,117,118197401-197408

165 SR 14,DUNLOP

main42605-22100iRT100,102,112197401-197408

165 SR 13,DUNLOP

main42605-22160iRT102,104,117,118197411-197701

165 SR 14,ENGLAND SPEC.

main42652-14100iRT104197710-197905

175 SR 14,STEEL

main42652-14110iRT118197608-197701

165 SR 14,STEEL

main42652-14110iRT104,118197701-197808

165 SR 14

main42652-22080iRT100,104,114197308-197701

6.45-13-4,TUBELESS,WSW.

main42652-22090iRT100,102,112197308-197905

6.45-13-4,TUBELESS,BLACK

main42652-22160iRT104,118197401-197402

6.45 S14-4,WSW.

main42652-22160iRT104,118197509-197701

6.45 S-14-4,TUBELESS,DOUBLEWSW

main42652-22180iRT102,104,114197402-197905

6.45-14-4,TUBELESS,BLACK

main42652-22210iRT104,118197402-197509

6.45S14-4,TUBELESS,WSW.

main42652-22210iRT104,118197701-197905

6.45S-14-4,TUBELESS

main42652-22240iRT104197608-197701

175 SR 14,STEEL

main42652-22240iRT104,118197701-197808

175 SR 14

main98011-56132iRT100197308-197808

5.60-13-4,W/TUBE,BLACK

main98011-56133iRT100,116197308-197808

5.60-13-6,BLACK

main98013-56132iRT100197308-197402

5.60-13-4,WSW.

main98013-56132iRT100197509-197701

5.60-13-4,W/TUBE,WSW.

main98013-56133iRT100,116197308-197402

5.60-13-6,WSW.

main98013-56133iRT100,116197509-197701

5.60-13-6,W/TUBE,WSW.

main98021-64133iRT117197308-197509

6.45-13-6,BLACK

main98021-64133iRT116197509-197905

6.45-13-6,W/TUBE,BLACK

main98021-64133iRT112197404-197509

6.45-13-6,BLACK,FOR THA1LAND

main98023-64133iRT117197308-197402

6.45-13-6,WSW.

main98023-64133iRT114,116,118197509-197701

6.45-13-6,W/TUBE,WSW.

main98023-64133iRT112197404-197509

6.45-13-6,WSW.,FOR THAILAND

main98038-65140iRT102,104,117,118197311-197509

165 SR-14

main98038-65140iRT104,118197509-197808

165 SR-14,W/TUBE,BLACK

main98038-69140iRT118197509-197701

175 SR-14,FOR WEST GERMANY

sub42605-22200

main98038-69140iRT102197311-197509

175 SR-14

sub42605-22200

main98038-69140iRT118197509-197701

175 SR-14,W/TUBE,BLACK;175SR-14,ENGLAND SPEC.

sub42605-22200

main98038-69140iRT104197606-197808

175SR-14

sub42605-22200

main98048-73140iRT104197311-197701

185/70 HR-14

sub42605-22210

main98511-56132iRT100197308-197808

5.60-13-4,TUBELESS,BLACK

main98511-56133iRT100,116197308-197808

5.60-13-6,TUBELESS,BLACK

main98511-64133iRT116,118197509-197905

6.45-13-6,TUBELESS,BLACK

main98511-64133iRT117197308-197509

6.45-13-6,BLACK

main98513-56132iRT100197308-197701

5.60-13-4,TUBELESS,WSW.

main98513-56133iRT100,116197308-197701

5.60-13-6,TUBELESS,WSW.

main98513-64133iRT117197308-197701

6.45-13-6,TUBELESS,WSW.

main98518-64142iRT102,104,114197308-197701

6.45-14-4,TUBELESS,WSW.

main98538-64142iRT104,118197308-197401

6.45 S14-4,WSW.

main98921-64132iRT102197308-197905

6.45-13-4,W/TUBE,BLACK

main98923-64132iRT102,112197308-197701

6.45-13-4,W/TUBE,WSW.

main98938-65130iRT100,102,112197308-197905

165 SR 13

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iRT10#,11#197308-197905

42621CAP, WHEEL

main42621-20070iRT100,102..STD197308-197509

HALF SIZE

main42621-20070iRT100,116..STD197509-197905

main42621-20120iRT100,116197509-197701

FULL SIZE

main42621-20120iRT100..DLX197308-197509

main42621-20130iRT110,112197308-197509

FULL SIZE

sub42621-20120

main42621-20130iRT110197509-197701

sub42621-20120

main42621-20150iRT102,104,114..ARL,SA197308-197905

main42621-20170iRT100,104,11#..GEN197701-197905

42624RING, WHEEL CAP

main42624-14030iRT104,118..ARL197611-197701

FOR 5J-14

main42624-20020iRT104,118..ARL197509-197605

FOR 5J-14

sub42624-20021

main42624-20021iRT104,118..ARL197605-197611

FOR 5J-14

sub42624-14030

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14040iRT102..EUG197312-197404

main42644-14041iRT104,118..ARL197404-197701

main42644-20010iRT102..EUG197311-197312

sub42644-14040

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050

4260320020ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20020

4260320021ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20021

4260320030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20030

4260320031ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20031

4262120070CAP, WHEEL

main42621-20070

4262120120CAP, WHEEL

main42621-20120

4262120130CAP, WHEEL

main42621-20130

4262120150CAP, WHEEL

main42621-20150

4262414021RING, WHEEL CAP

main42624-14021

4262414030RING, WHEEL CAP

main42624-14030

4262420020RING, WHEEL CAP

main42624-20020

4262420021RING, WHEEL CAP

main42624-20021

9016440052

main90164-40052

9351013008

main93510-13008

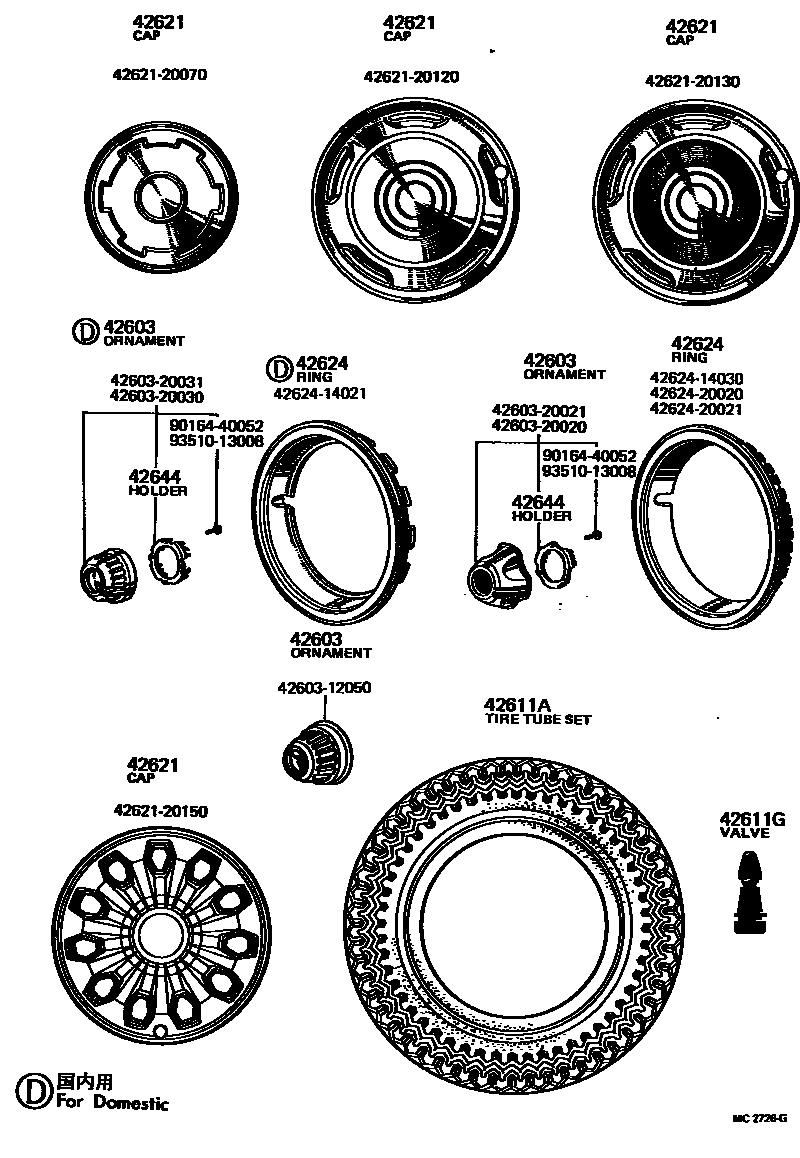

21 parts on this diagram · 2 diagrams in section
