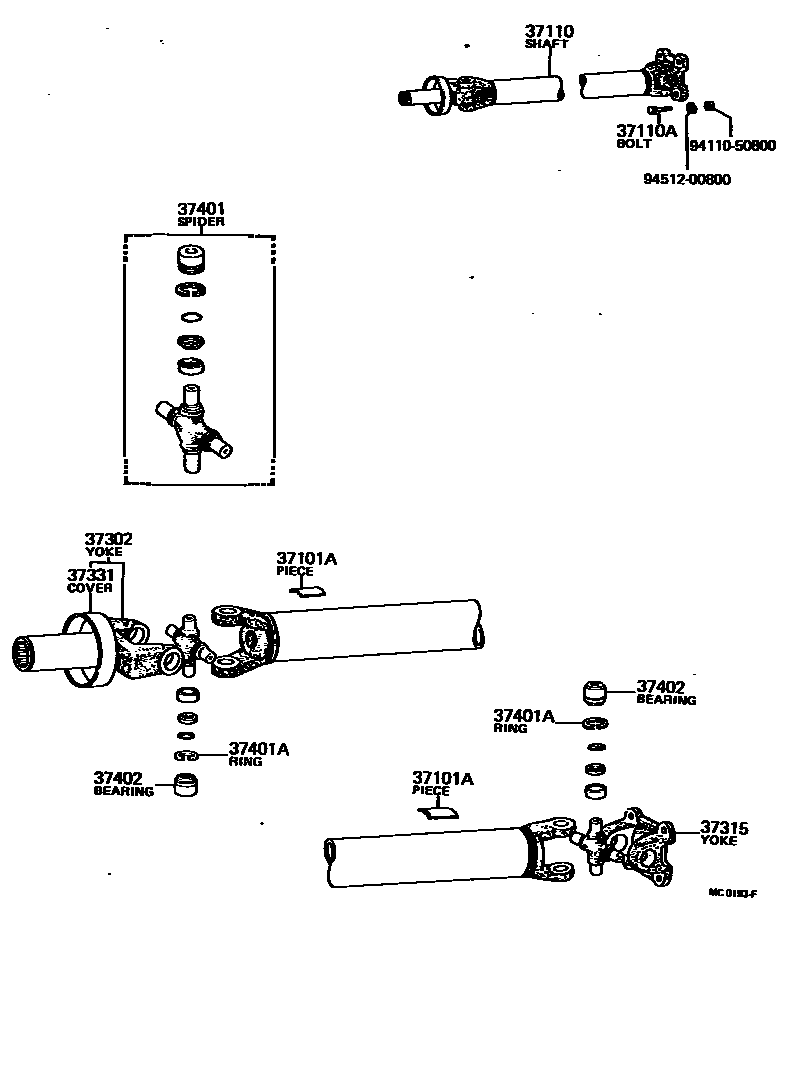

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132×2iRT100,11#197308-197905

10G,L=20.7,10G.

main90937-01136×2iRT100,11#197308-197905

20G,L=41.4,20G.

main90937-01140×2iRT100,11#197308-197905

30G,L=62.2,30G.

main90937-01147×2iRT100,11#197308-197905

2G,T=2.0

main90937-01148×2iRT100,11#197308-197905

4G,T=2.0,4G.

main90937-01149×2iRT100,11#197308-197905

6G,L=12.4

main90937-01150×2iRT100,11#197308-197905

8G,L=16.6,8G.

main90937-01151×2iRT100,11#197308-197905

12G,L=24.9,12G.

main90937-01152×2iRT100,11#197308-197905

14G,L=29.0,14G.

main90937-01153×2iRT100,11#197308-197905

16G,L=33.2,16G.

main90937-01154×2iRT100,11#197308-197905

18G,L=37.3,18G.

main90937-01155×2iRT100,11#197308-197905

22G,L=45.6,22G.

main90937-01156×2iRT100,11#197308-197905

24G,L=49.7,24G.

main90937-01157×2iRT100,11#197308-197905

26G,L=53.9,26G.

main90937-01158×2iRT100,11#197308-197905

28G,L=58.1,28G.

37110SHAFT ASSY, PROPELLER

main37110-20110iRT10#,110,112,114,118..ARL,GEN,PHL,SA197308-197509

L=1371,OD=75

sub37110-20280

main37110-20160iRT102,104..EUR197308-197808

L=764.5,OD=65

main37110-20180iRT100,110197509-197701

L=1186,OD=65

main37110-21010iRT118..EUR197308-197509

L=1354,OD=75

sub37110-21120

main37110-21020iRT116,118197701-197905

L=1169,OD=65

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08214×4iRT10#,11#197308-197905

*8-1.25PX25-12

sub90101-08262

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-20040iRT100,11#197308-197905

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iRT100,11#197308-197905

37331COVER, SLIDING SHAFT DUST

main37331-30010iRT100,11#197308-197701

37401SPIDER KIT, UNIVERSAL JOINT

main04371-22010×3iRT10#,11#197308-197905

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90521-29070×8iRT10#,11#197308-197905

T=2.375-2.425,T=2.375-2.425

main90521-29071×8iRT10#,11#197308-197905

T=2.425-2.475,T=2.425-2.475

main90521-29072×8iRT10#,11#197308-197905

T=2.475-2.525,T=2.475-2.525

main90521-29073×8iRT10#,11#197308-197905

T=2.525-2.575,T=2.525-2.575

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22020×12iRT10#,11#197308-197905

9411050800

main94110-50800

9451200800

main94512-00800

11 parts on this diagram · 3 diagrams in section
