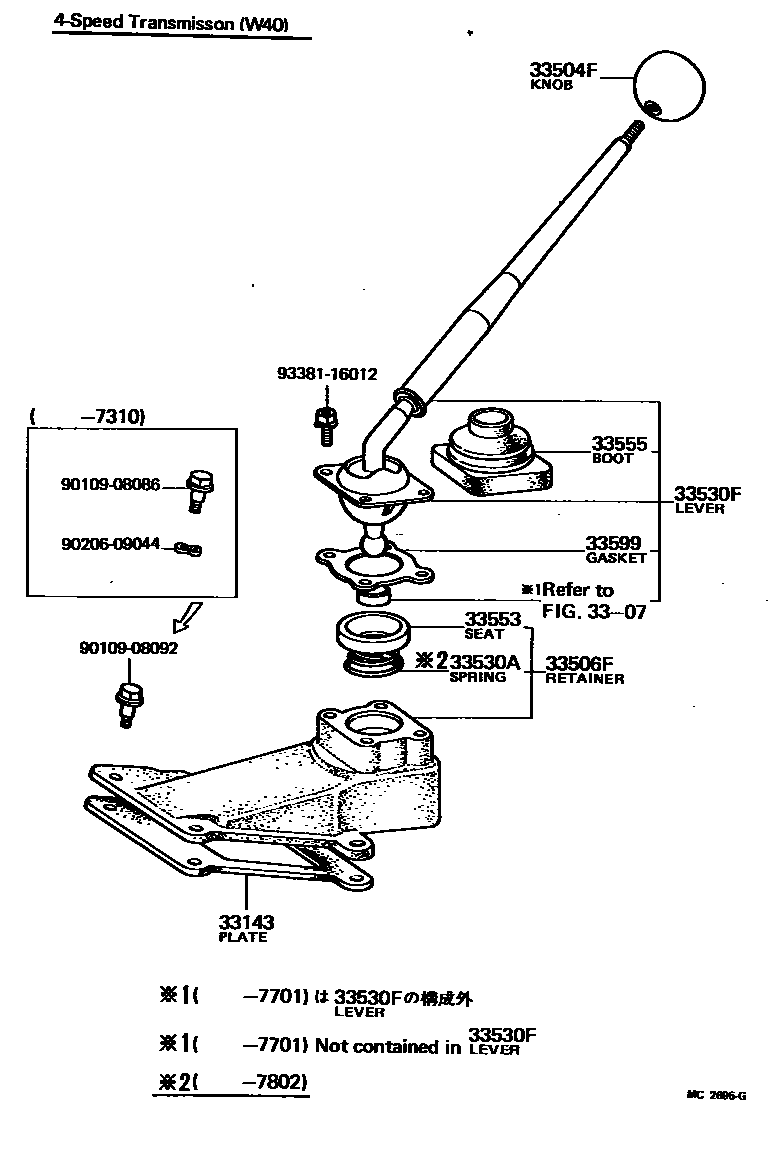

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

3307

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-20030iRT10#,11#..4F,5F197308-197905

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14031iRT104..5F..SDN197606-197607

sub33504-10020

main33504-20050iRT102,104..5F197308-197510

main33504-20051iRT104..5F197510-197601

main33504-20052iRT104..5F..EUG197601-197607

sub33504-14050

main33504-20060iRT104,114..4F..SA197308-197510

main33504-20061iRT104,114..4F..SA197510-197601

main33504-20062iRT104..RHD..4F..STD..GEN197705-197808

FOR NEW ZEALAND

sub33504-14040

main33504-22040iRT102,104,112,118..3FC197308-197403

main33504-22041iRT102,104,112,114,118..3FC197403-197701

main33504-22100iRT100,102,11#..4F;RT104..4F..(ARL,EUR,GEN)197701-197905

sub33504-22101

main33504-22110iRT104..5F197701-197808

sub33504-22111

main33504-31010iRT10#,110,112,116,117,118..4F197308-197509

main33504-31011iRT100,102,11#..4F;RT104..4F..(ARL,EUR,GEN)197510-197701

sub33504-14040

main33542-30120-01iRT104,114,118..3FC197701-197905

BLACK,BLACK,TRIM2#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-20010iRT10#,11#..4F197308-197310

sub90109-08092

main33570-20011iRT10#,11#..4F,5F197310-197406

main33570-21010iRT10#,11#..4F,5F197406-197905

sub33570-21011

sub33143-20031

sub90109-08054

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90502-18057iRT10#,11#..4F,5F197308-197802

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-20110iRT102,104,112,114,118..3FC197308-197701

main33503-20111iRT104,114,118..3FC197701-197905

main33530-20130iRT10#,112,114,116,117,118..RHD..4F197308-197510

main33530-20131iRT10#,114,116,118..RHD..4F197510-197905

sub33530-20190

main33530-20140iRT10#,11#..LHD..4F197308-197510

main33530-20141iRT100,104,11#..LHD..4F197510-197905

sub33530-20163

main33530-20150iRT102,104..RHD..5F197308-197510

main33530-20151iRT104..RHD..5F197510-197701

sub33530-20211

main33530-20160iRT102,104..LHD..5F197308-197510

main33530-20161iRT104..LHD..5F197510-197701

sub33530-20163

main33530-20162iRT104..LHD..5F197701-197808

sub33530-20163

main33530-20180iRT104..RHD..5F197701-197808

sub33530-20210

33553SEAT, SHIFT LEVER SPRING

main33556-20010iRT102,104..5F197507-197701

FOR NOISE COUNTERMEASURE

sub33556-35040

main33556-22010iRT10#,11#..4F,5F197308-197905

33555BOOT, SHIFT LEVER

main33555-20050iRT102,104,112,114,118..3FC197308-197905

main33555-31011iRT10#,11#..4F,5F197308-197905

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-31020iRT10#,11#..4F,5F197308-197905

9010908086

main90109-08086

9010908092

main90109-08092

9020609044

main90206-09044

9338116012

main93381-16012

13 parts on this diagram · 6 diagrams in section
