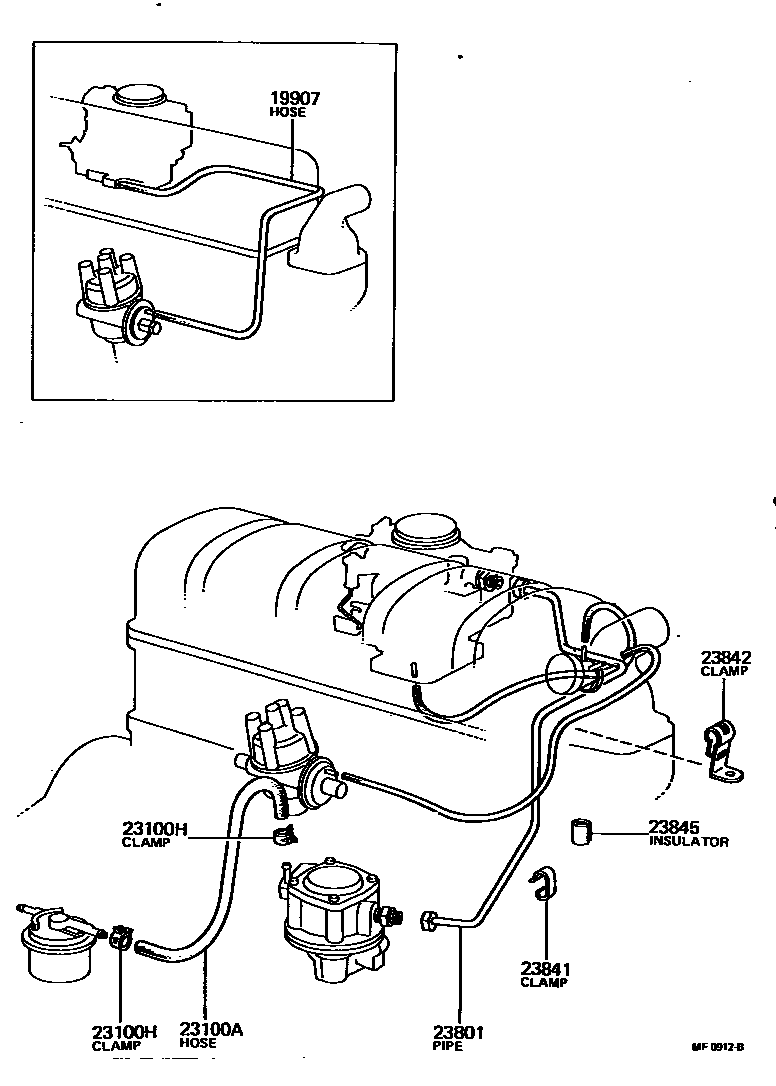

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1

19907HOSE, VACUUM, NO.1

main90445-07007i16R,18R..RT102,104,114,118197509-197701

L=440

main90445-07106i12R..RT100,110,116197308-197511

L=730

main95411-10195i12R#..RT100,110,116197511-197808

H,L=750

sub90999-92004

main95411-19995i16R,18R..RT102,104,114,118197701-197905

H,L=850

sub90999-92004

23100AHOSE, FUEL

main95331-06030i12R#..RT100,110,116197511-197701

L=300

main95331-06034i12R,16R,18R#..RT10#,11#197509-197511

L=340

sub95332-06034

main95332-06030i12R#,16R,18R#..RT10#,11#197705-197905

L=300

sub95333-06030

23100HCLIP(FOR FUEL HOSE)

main90467-12140×2i12R,16R,18R..RT10#,11#197308-197402

main96132-30600×2i12R,16R,18R..RT10#,11#197402-197509

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-31040i12RM..RT100,110,116197512-197808

sub23811-31040

main23801-31042i12R..RT100,116197511-197808

sub23811-31042

main23811-33032i16R,18R..RT102,104,112,114,117,118197308-197404

main23811-34020i16R,18R..RT102,104,112,114,117,118197404-197509

main23811-34030i16R,18R#..RT102,104,114,118197509-197611

main23811-34031i16R,18R#..RT102,104,114,118197611-197905

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90468-04007×3i12R..RT100,110,116197308-197511

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-34020i16R,18R#..RT102,104,114,118197509-197905

main23841-40010i12R..RT100,110,116197308-197511

main23842-31010i12R..RT100,116197511-197808

main90461-10407i16R,18R..RT102,104,112,114,117,118197308-197509

23845INSULATOR, FUEL PIPE

main23845-20010i12R..RT100,110,116197308-197511
