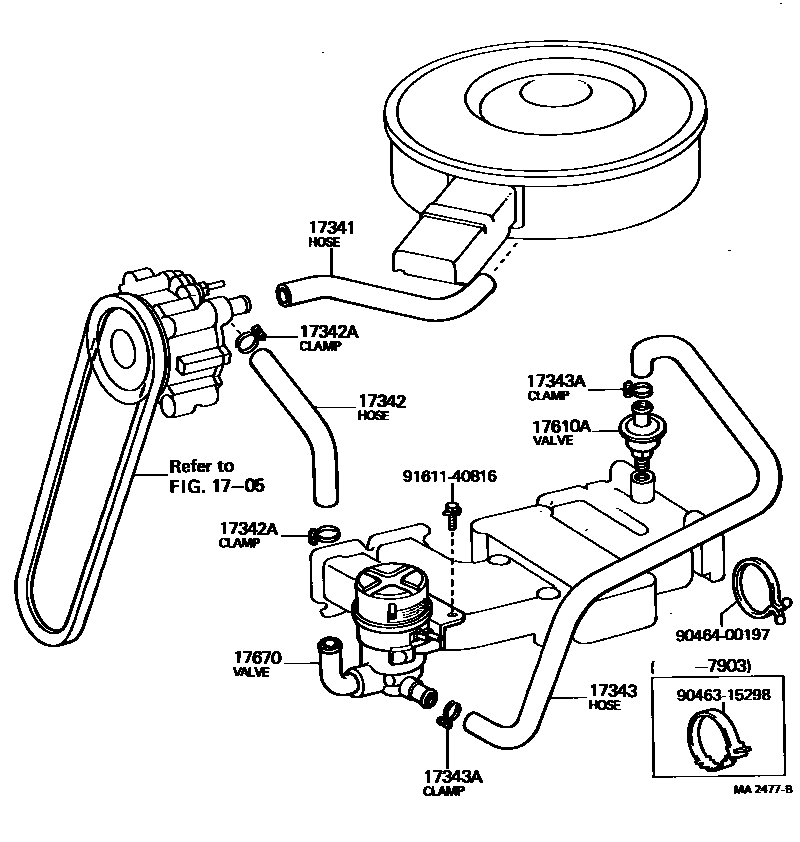

MANIFOLD AIR INJECTION SYSTEM

1705AIR PUMP

→ Go to FIG 17-05

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-34030i18RC..RT104,118197704-197905

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-34020i18RC..RT104,118197704-197905

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main96112-10300i18RC..RT104,118197704-197905

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-34021i18RC..RT104,118197704-197905

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main96112-10270i18RC..RT104,118197704-197905

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10039i18RC..RT104,118197704-197905

17670VALVE ASSY, AIR BY-PASS

main17670-34030i18RC..RT104,118197704-197905

9046315298

main90463-15298

9046400197

main90464-00197

9161140816

main91611-40816

11 parts on this diagram · 1 diagram in section
