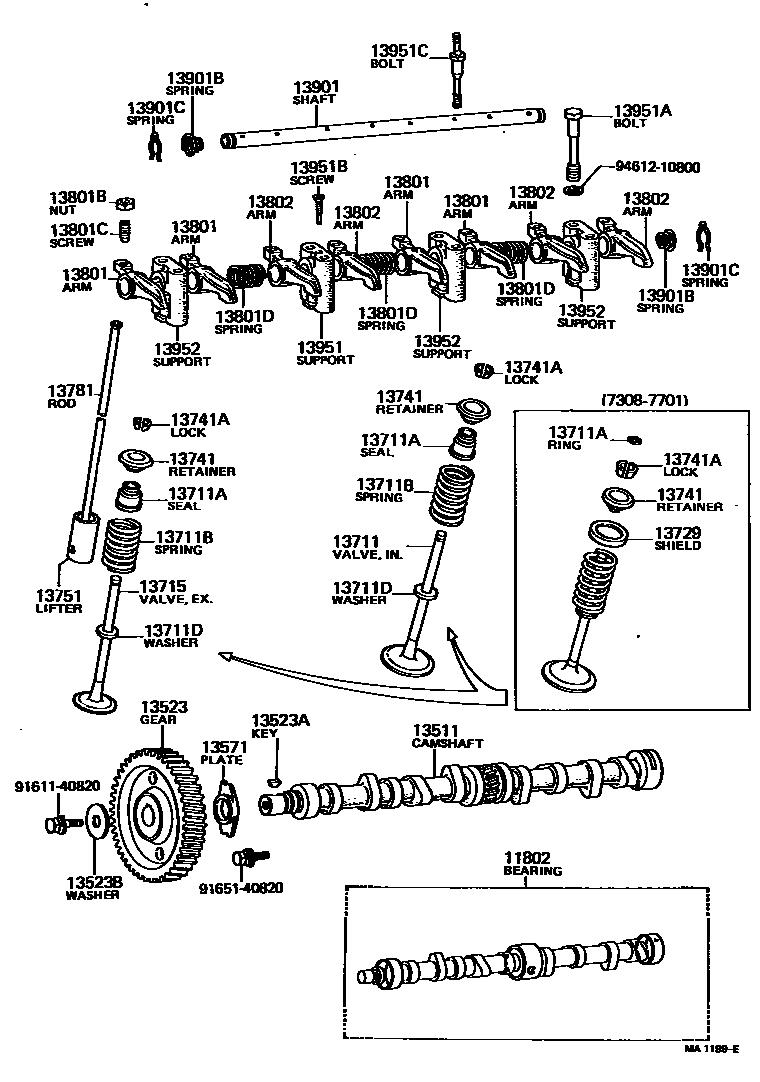

CAMSHAFT & VALVE

0001 1 0002 1

11802BEARING SET, CAMSHAFT

main11802-31010i12R#..RT100,110,116197308-197808

STD

main11802-33010i16R,18R..RT102,104,112,114,117,118197308-197905

STD,STD

main11803-31010i12R..RT100,110,116197308-197511

U/S 0.125

main11804-31010i12R#..RT100,110,116197308-197808

U/S 0.25

main11804-33010i16R,18R..RT102,104,112,114,117,118197308-197905

U/S 0.25,U/S 0.125

main11805-31010i12R#..RT100,110,116197308-197808

U/S 0.50

main11805-33010i16R,18R#..RT102,104,114,118197308-197905

U/S 0.50,U/S 0.25

13511CAMSHAFT

main13511-31020i12R..RT100,110,116197308-197808

sub13511-31900

main13511-33013i16R,18R..RT102,104,112,114,117,118197308-197705

sub13511-33901

main13511-33904i16R,18R#..RT102,104,114,118197705-197709

sub13511-33905

main13511-33905i16R,18R#..RT102,104,114,118197709-197905

sub13511-33906

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-31010i12R..RT100,110,116197308-197511

N=50

main13523-31011i12R#..RT100,110,116197511-197808

N=50

main13523-33010i16R,18R..RT102,104,112,114,117,118197308-197905

N=24

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05010i12R..RT100,116197308-197411

main95161-10519i12R#..RT100,110,116197411-197808

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-08120i12R#..RT100,110,116197308-197808

13571PLATE, CAMSHAFT THRUST

main13571-31010i12R#..RT100,110,116197308-197808

13711VALVE, INTAKE

main13711-31030i12R#..RT100,110,116197308-197701

main13711-31050i12R#..RT100,116197701-197808

main13711-34011i16R,18R..RT102,104,114..SA197308-197401

sub13711-34012

main13711-34012i16R,18R..RT102,104,114..SA197401-197509

sub13711-34031

main13711-34031i16R,18R#..RT102,104,114,118197509-197701

main13711-36020i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197308-197401

sub13711-36021

main13711-36021i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197401-197905

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90301-06096i12R#..RT100,110,116197308-197701

main90913-02016i16R,18R#..RT102,104,114,118197308-197905

NOK

sub90913-02054

main90913-02033i12R#..RT100,116197701-197808

13711BSPRING, COMPRESSION(FOR INNER)

main90501-26005i16R,18R#..RT102,104,114,118197704-197901

WD=2.6,CW=7.75

main90501-26398i16R,18R..RT10#,118197308-197905

WD=2.6,CW=7.5

main90501-45005i12R#..RT100,110,116197502-197808

WD=4.5,CW=6.25

main90501-47751i12R..RT100,110,116197308-197502

WD=4.7,CW=6

sub90501-45005

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-13308i16R,18R..RT102,104,112,114,117,118197308-197905

sub90201-13366

main90201-15387i12R#..RT100,110,116197308-197808

13715VALVE, EXHAUST

main13715-31030i12R..RT100,116197308-197701

main13715-31050i12R..RT100,116197312-197402

main13715-31070i12R#..RT100,116197701-197808

main13715-34011i16R,18R..RT102,104,114..SA197308-197905

main13715-34022i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197308-197905

13729SHIELD, VALVE STEM OIL

main13729-31031i12R#..RT100,110,116197308-197701

13741RETAINER, VALVE SPRING

main13741-25012i12R#..RT100,116197701-197808

main13741-31013i12R..RT100,110,116197308-197502

main13741-31014i12R#..RT100,110,116197502-197701

sub13741-31013

main13741-33010i16R,18R#..RT102,104,114,118197308-197905

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i12R,16R,18R..RT10#,11#197308-197905

main90913-03014i12R#..RT100,116197701-197808

13751LIFTER, VALVE

main13751-31010i12R..RT100,110,116197401-197512

STD

sub13751-31020

main13751-31020i12R#..RT100,110,116197512-197808

STD

sub13751-44030

main13751-44011i12R..RT100,116197308-197401

STD

sub13751-44040

main13755-31010i12R..RT100,110,116197401-197512

O/S 0.05

sub13755-31020

sub13755-44030

main13755-31020i12R#..RT100,110,116197512-197808

O/S 0.05

sub13755-44030

main13755-44011i12R..RT100,116197308-197401

O/S 0.05

sub13755-44020

13781ROD, VALVE PUSH

main13781-31020i12R..RT100,116197308-197401

main13781-31021i12R#..RT100,110,116197401-197707

sub13781-31022

main13781-31022i12R#..RT100,116197707-197808

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-33012i16R,18R#..RT102,104,114,118197308-197711

main13811-31021i12R#..RT100,110,116197308-197707

sub13811-31H00

main13811-31022i12R#..RT100,116197707-197808

main13811-33014i16R,18R#..RT102,104,114,118197711-197905

sub13811-33020

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08094i12R#..RT100,116197707-197808

sub90170-08005

main90170-10074i12R#..RT100,110,116197308-197707

main90170-10116i16R,18R..RT102,104,112,114,117,118197308-197905

13801CSCREW, VALVE ADJUSTING

main90913-05010i12R#..RT100,110,116197308-197707

main90913-05011i16R,18R..RT102,104,112,114,117,118197308-197905

main90913-05013i12R#..RT100,116197707-197808

sub90913-05020

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16098i12R#..RT100,110,116197308-197808

WD=1.6,CW=9

main90501-16163i12R,16R,18R..RT10#,11#197308-197905

WD=1.6,CW=7.5

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13802-33012i16R,18R..RT102,104,112,114,117,118197308-197711

main13812-31021i12R#..RT100,110,116197308-197707

sub13812-31H00

main13812-31022i12R#..RT100,116197707-197808

main13812-33014i16R,18R#..RT102,104,114,118197711-197905

sub13812-33020

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-31020i12R#..RT100,110,116197308-197808

main13901-33010i16R,18R..RT102,104,112,114,117,118197308-197711

main13901-33011i16R,18R#..RT102,104,114,118197711-197905

13901BSPRING, CONICAL(FOR VALVE ROCKER SHAFT)

main90502-16004i12R#..RT100,110,116197308-197808

13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)

main90524-15008i12R#..RT100,110,116197308-197808

13951SUPPORT, VALVE ROCKER, NO.1

main13951-31020i12R#..RT100,110,116197308-197808

main13951-33010i18RC..RT104,118197308-197704

main13951-36010i16R,18R..RT102,104,114,118197308-197905

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08016i16R,18R..RT102,104,112,114,117,118197308-197905

8-1.25PX65-16

main90910-01007i16R,18R..RT102,104,112,114,117,118197308-197905

8-1.25PX75-16

main90910-01010i12R#..RT100,110,116197308-197808

8-1.25PX71-16

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main90151-40010i12R,16R,18R..RT10#,11#197308-197905

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main13955-31010i12R#..RT100,110,116197308-197808

L=109.5,S=16&18

13952SUPPORT, VALVE ROCKER, NO.2

main13952-31010i12R#..RT100,110,116197308-197808

sub13951-31020

main13952-33010i16R,18R#..RT102,104,114,118197308-197704

sub13951-33010

main13952-36010i16R,18R#..RT102,104,114,118197308-197905

sub13951-36010

9161140820

main91611-40820

9165140820

main91651-40820

9461210800

main94612-10800

32 parts on this diagram · 2 diagrams in section
